Description

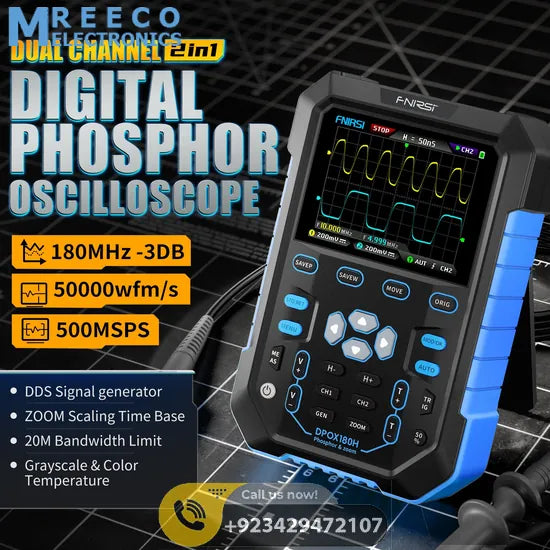

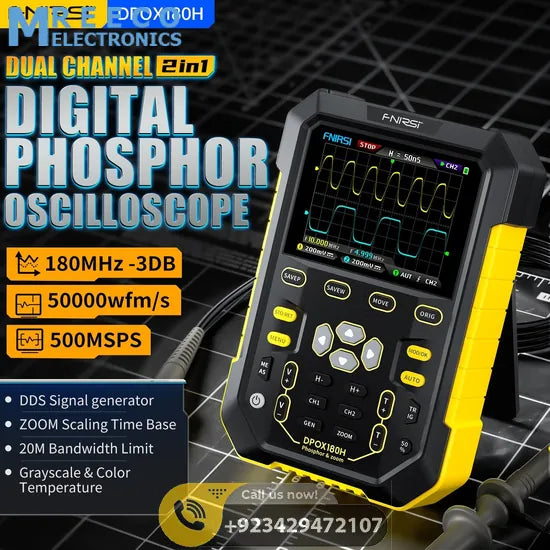

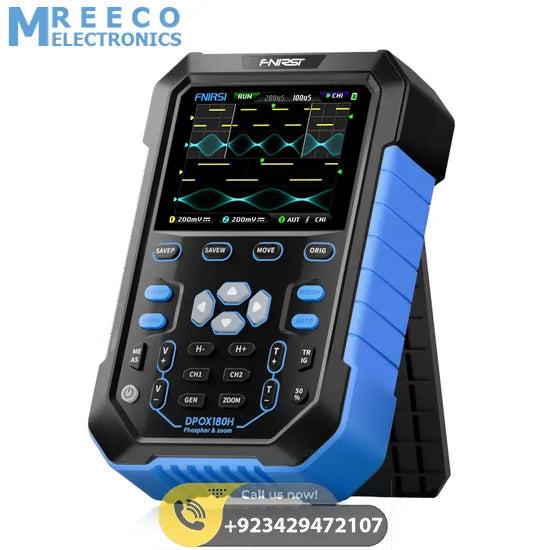

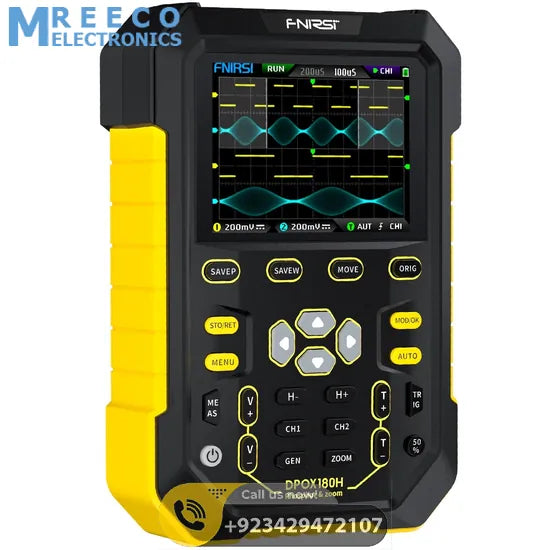

The DPOX180H is a cost-effective, handheld dual-channel digital phosphor oscilloscope from FNIRSI, combining an oscilloscope and signal generator. It features a 500MSPS real-time sampling rate, 180MHz bandwidth, and a 2.8-inch high-contrast IPS LCD. With a refresh rate of up to 50,000 waveforms per second, it captures even rare signal anomalies. The ZOOM time base aids digital protocol analysis, and with 5mV sensitivity, it can measure small signals accurately. Key features include noise filtering, a high-precision digital trigger with three modes, and a DDS signal generator supporting up to 20MHz. Additional functions include one-button auto adjustment, waveform storage for up to 250 sets, high-voltage protection up to 400V, USB export, and fast charging (5V/2A).
Features
- 2 Channels Digital Phosphor Oscilloscope
- 2 in 1 Handheld Oscilloscope+ DDS Signal Generator
- 180Mhz Bandwidth 500MSa/s Sampling Rate
- Storage Depth 120Kpts
- Maximum measurement voltage ±400V
- 200mv/div-10v/div vertical sensitivity
- Support waveform image storage and export.
- Trigger function: auto/normal/single
- Effortless Usage: one-key-auto
- Seamless Operations: Enhanced Data Saving
Specifications
Brand: FNIRSI
Model: DPOX180H
Number of Channels: 2
Analog Bandwidth: 180MHz
Max Waveform Capture Rate: 50000wfm/s
Real Time Sampling Rate: 500MSa/s
Maximum Sampling Rate: 500MSPS
Input Coupling: DC/AC
Rise Time: 2.5nS
Storage Depth: 120Kpts
Water Resistance Level: IPX6
Input Impedance: 1MΩ-18PF
Vertical Sensitivity: 5mV ~ 10V(1X)
Time Base Range: 5nS ~ 50S
DC Accuracy: ±2%
Time Accuracy: ±0.01%
Measurement Range: 40mV ~ 80V(1X)
Digital Phosphor Technology: Support

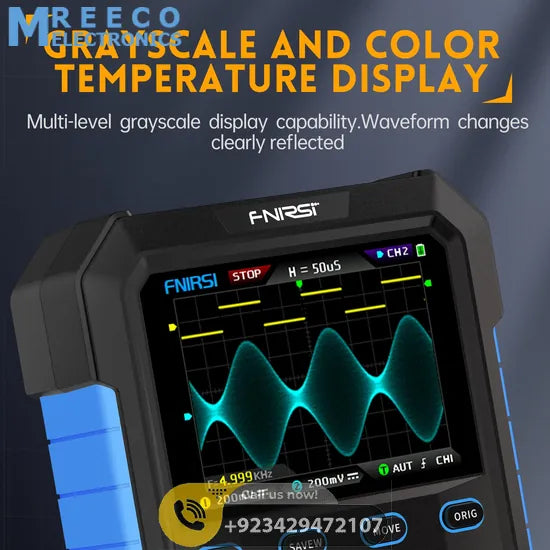

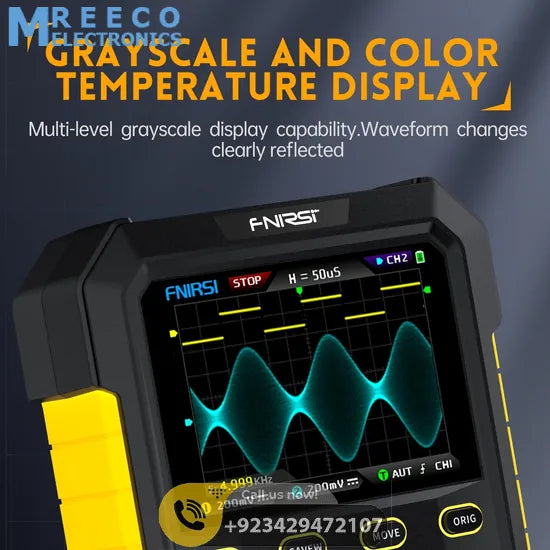

Color Temperature Display: Support

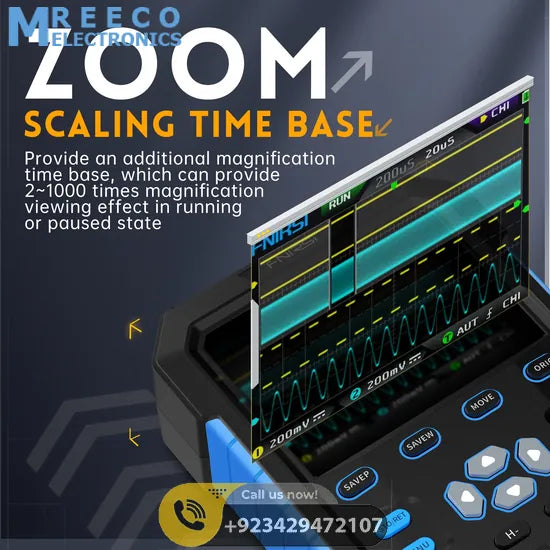

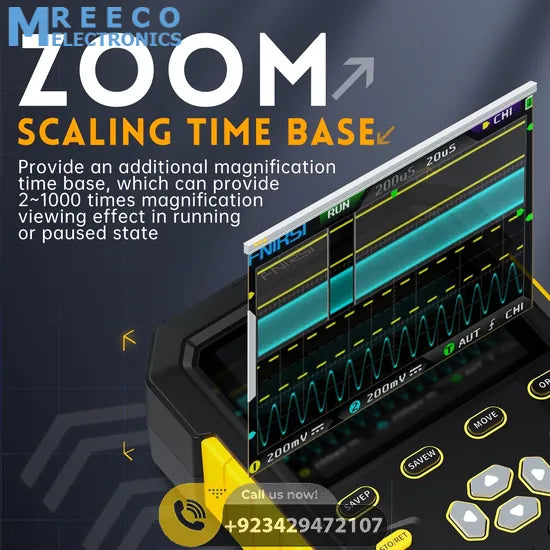

Zoom Scaling Time Base: Support

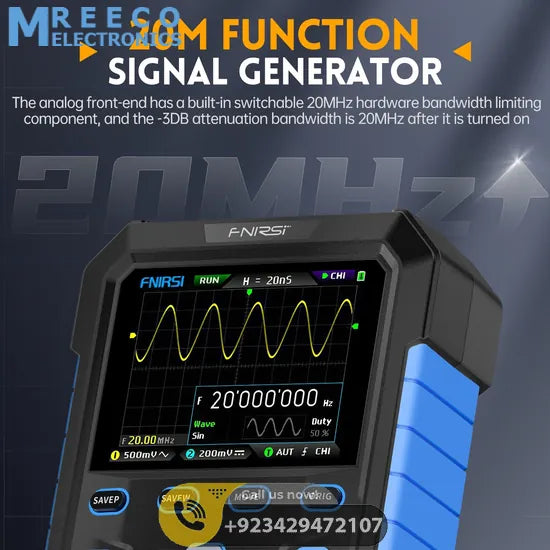

20M Hardware Bandwidth Limitation: Support
Adjustable Automatic Bandwidth Limitation: Support
X-Y Mode: Support
FFT: Support
Cursor Measurement: Frequency / Period / Amplitude
Trigger Detection: Digital Trigger
Trigger Mode: Auto / Single / Normal
Trigger Edge: Rising / Falling
Roll Mode: Support
Screenshot Storage: 90
Waveform Storage: 250 Groups
Capture Signal: 500
Parameter Measurement: 12 Kinds

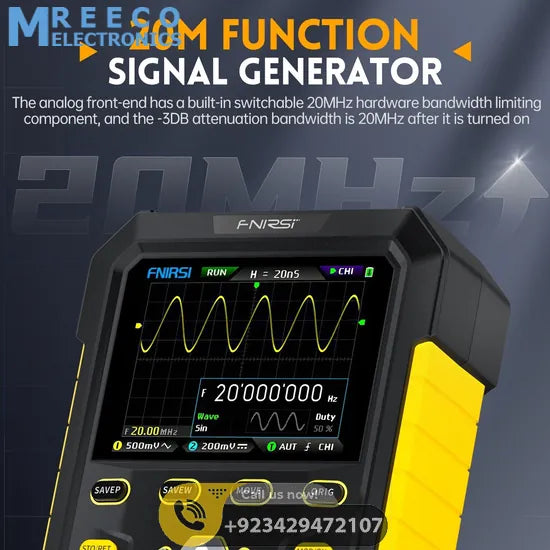

Signal Generator: 14 Standard Function Signals
Auto-adjustment: Support
Waveform Manager: Support
Waveform Output: Support
High-voltage Burnout Protection: Support
Screen Size: 2.8 Inches
Screen Resolution: 320x240 Pixels
Display Technology: IPS Full View
Expansion Interface: USB Transmission Interface
Auto Power-off: 5 minutes ~ 2 hours
Firmware Upgrade: Support
Charging Requirements: 5V 2A

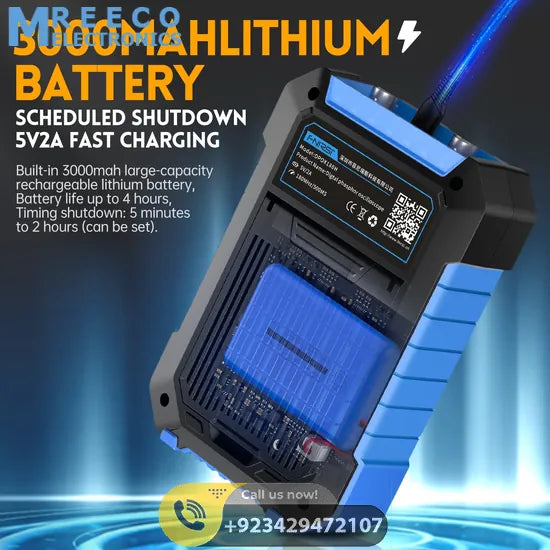

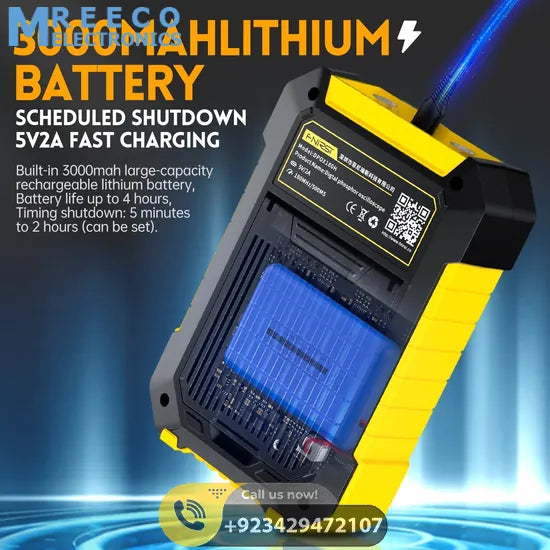

Battery Capacity: 3000mAh
Standby Time: 3.5 Hours at Full Charge
Dimensions: 135x90x40mm
