Description

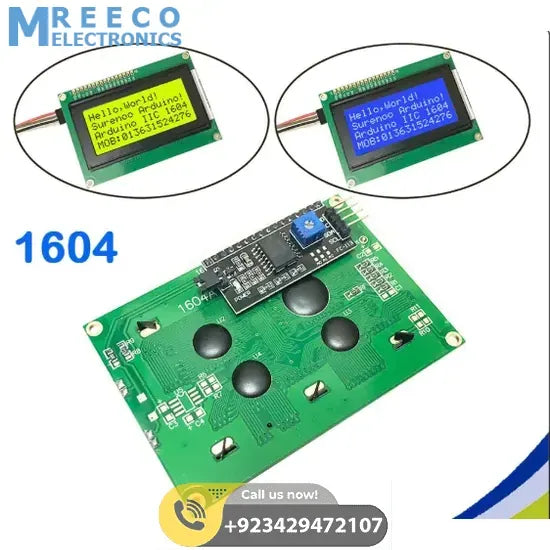

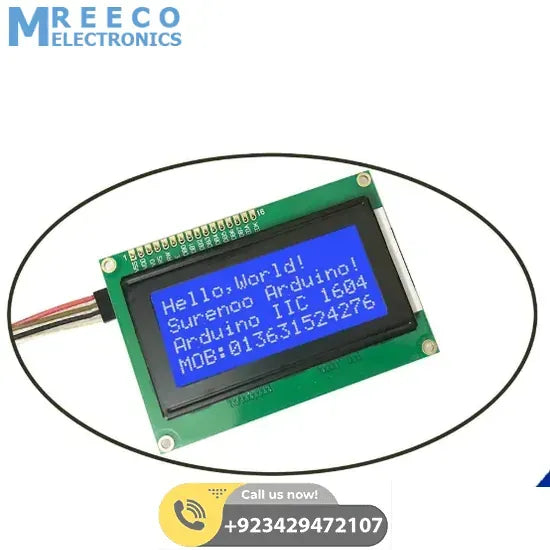

This is another large blue screen LCD. As the Arduino driver's pin resources are limited, your project may not be able to use a normal LCD shield after being connected with a certain number of sensors or SD card. However, with this I2C interface LCD module, you can perform data visualization through only 2 cables. If you already have I2C devices in your project, this LCD module does not cost more resources.It's great for a project based on Arduino.
Specification # I2C Address: 0x27 # Backlight # Supply voltage: 5 V # Comes with IIC interface, which can be connected by DuPont line
Arduino test code
# Includes # Includes LiquidCrystal_I2C lcd (0x27,16, 2); / set the LCD address to 0x27 for a 16 character display and 2 lines Empty configuration () { Lcd. init (); Lcd backlight (); Lcd setCursor (0, 0); Lcd Print (""); Lcd setCursor (0, 1); Lcd printing ("voltage:"); Lcd setCursor (13, 1); Lcd printing ("V");
}
