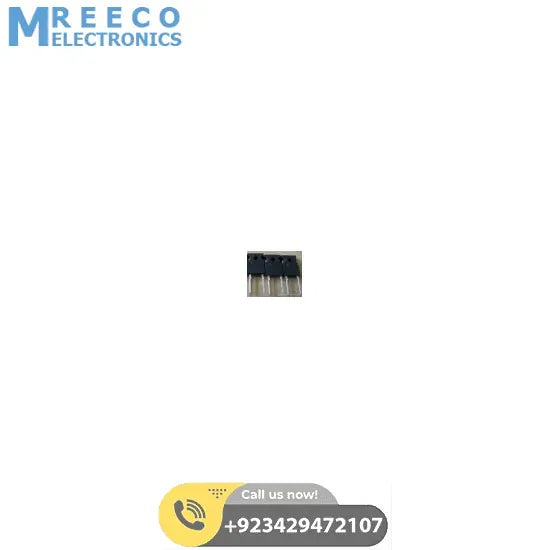

Diode RHR75120 in pakistan

The RHRG75120 is a hyperfast diode with soft recovery characteristics (trr < 85ns). It has half the recovery time of ultrafast diodes and is silicon nitride passivated ion-implanted epitaxial planar construction

This device is intended for use as a freewheeling/clamping diode and rectifier in a variety of high frequency switching power supplies and other power switching applications. Its low stored charge and hyperfast soft recovery characteristic minimize ringing and electrical noise in many power switching circuits, thus reducing power loss in the switching transistors.

Features

1. Hyperfast with Soft Recovery. . . . . . . . . . . . . . . . . . <85ns
2. Operating Temperature . . . . . . . . . . . . . . . . . . . . . . 175oC
3. Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1200V
4. Avalanche Energy Rated
5. Planar Construction

Applications:

1. Switching Power Supplies
2. Power Switching Circuits
3. General Purpose

Package Include:

1xDiode RHR75120
