Description

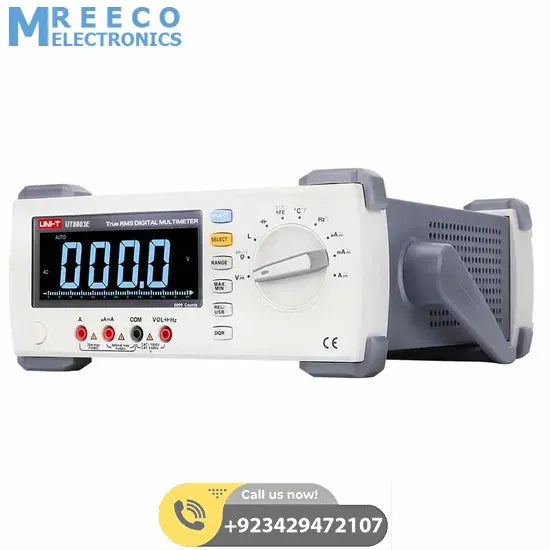

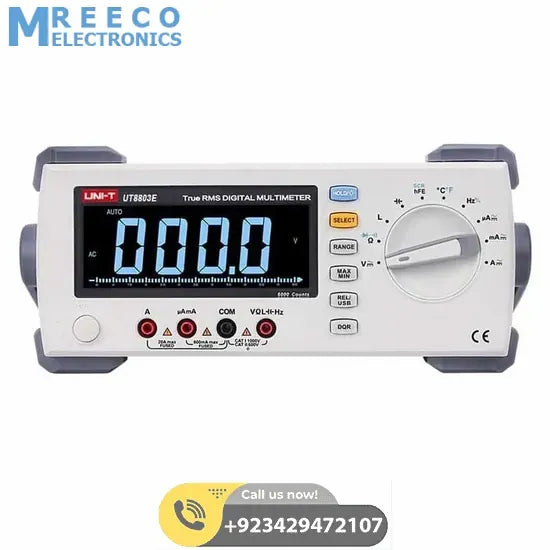

UNI-T UT8803E Benchtop Digital Multimeter for AC/DC current and voltage, resistance, capacitance, frequency, duty cycle, inductance. This UT 8803E digital multimeter measures temperature measurements and diode, transistor and continuity tests, SCR thyristor test. Having a large EBTN LCD display and a USB interface. UNI T best benchtop multimeter features overload protection for all ranges and special appearance design. It is an ideal tool for electricians, production QA, maintenance, research, and education.
Features Of UNI-T UT8803E Benchtop Digital Multimeter:
- True RMS (UT8803E)
- Diode/transistor
- SCR thyristor test (UT8803E)
- Inductance measurement
- USB interface
- EBTN LCD screen
- Data hold
- MAX/MIN
- Continuity buzzer
Specifications Of Digital Multimeter UT-8803E Benchtop Style:
- Model: UT8803E
- DC voltage (V): 1000V
- AC voltage (V): 750V
- DC current (A): 20A
- AC current (A): 20A
- Resistance (Ω): 60MΩ
- Capacitance (F): 6mF
- Frequency (Hz): 600Hz~20MHz
- Duty cycle (%): 5%~95%
- Inductance (H): 100H
- Temperature (°C/°F): -40℃~1000℃, -40℉~1832℉
- Display count: 6000
- Interface: USB Device
- Range: Auto
- True RMS/diode: √
- Frequency response (Hz): Up to 100kHz
- SCR test: 9V, can measure unidirectional and bidirectional SCR (UT8803E)
- Continuity buzzer/data hold: √
- MAX/MIN √
- USB interface/LCD backlight: √
- Input impedance for DCV: 600mV range: around 3GΩ; all other ranges: around 10MΩ
- AC+DC measurement: √
- Power: 100V/120V/220V/240V ±10%, 47Hz~63Hz
- Display: EBTN LCD
- Product net weight: 3.09kg
- Product size: 265mm x 110mm x 320mm
Package Includes:
1 x
- USB interface
- cable
- 1 x Power cord
- 1 x Simple test lead with alligator clips
- 1 x Standard test leads
- 1 x PC software CD
- 1 x Point contact temperature probe (UT8803E)
