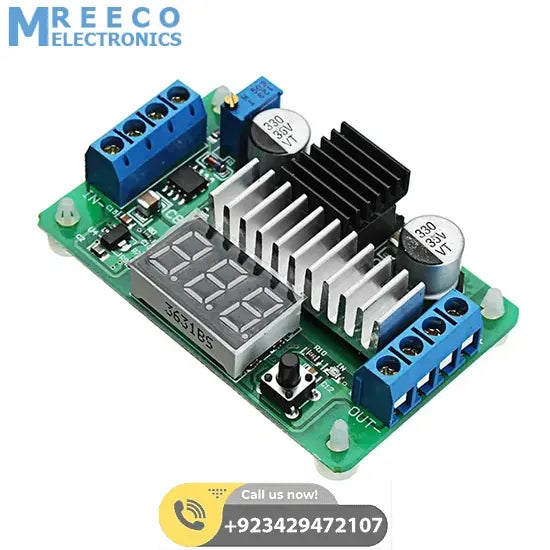

Ltc1871 Dc-dc 3.5-30v 6a 100w Adjustable High Power Boost Module

LTC1871 DC-DC 3.5-30V 6A 100W Adjustable High Power Boost Power Module Step Up Board Converter 2 Way Display LED Voltmeter also called Adjustable High Power Boost Power Module Step Up Board Converter, LTC1871 DC-DC 3.5-30V 6A 100W Board Converter, 2 Way Display LED Voltmeter.

LTC1871 DC-DC 3.5-30V 6A 100W Adjustable High Power Boost Module Features:

1. In+: Input positive
2. In-: Input negative
3. Out+: Output positive
4. Out-: Output negative
5. weight: 40g

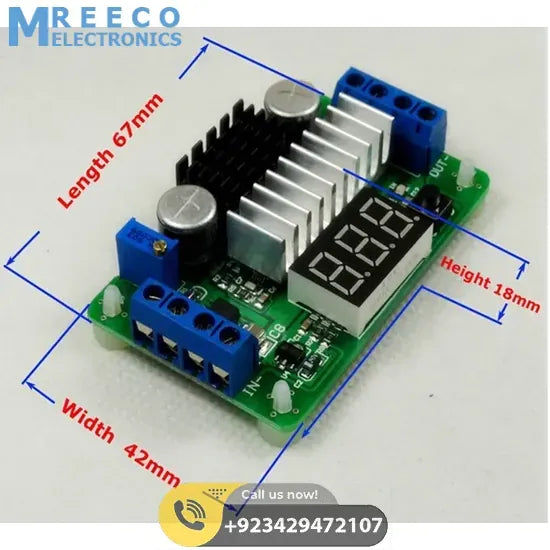

6. Dimensions: 67 x 42 x 18mm (L x W x H)
7. Input voltage: DC 3.5-30V
8. Output power: 100W maximum {Note: according to the law of conservation of power, computation under the condition of rated output current : Uin*Iin*efficiency =Uout*Iout(Uin:input voltage, Iin:input current)}
9. Output voltage: 3.5v-30v (step-up mode, the input must be less than or equal to the output voltage)
10. Input current: 6A (maximum 10A)
11. Voltage meter accuracy: ± (5 ‰ +1 digit)
12. Static power consumption: Typical about 15mA(With the input voltage, output voltage and the color is closely related to the digital pipe. The actual current there is a deviation)

Package included:

• 1 x LTC1871 boost Power module
