Stepper Motor

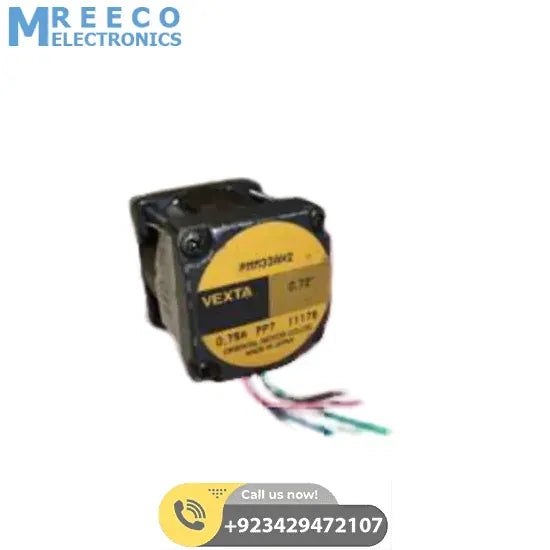

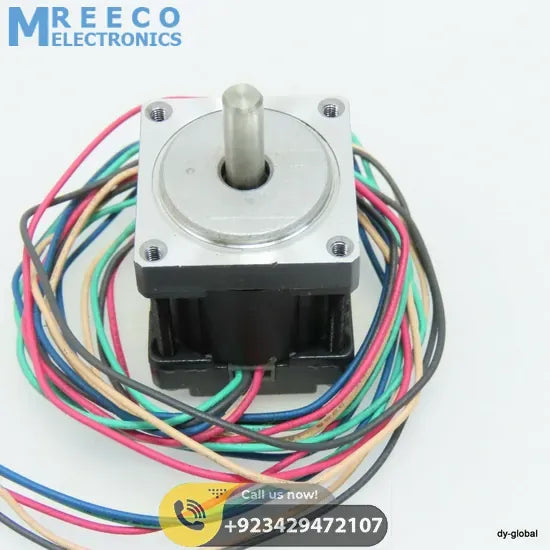

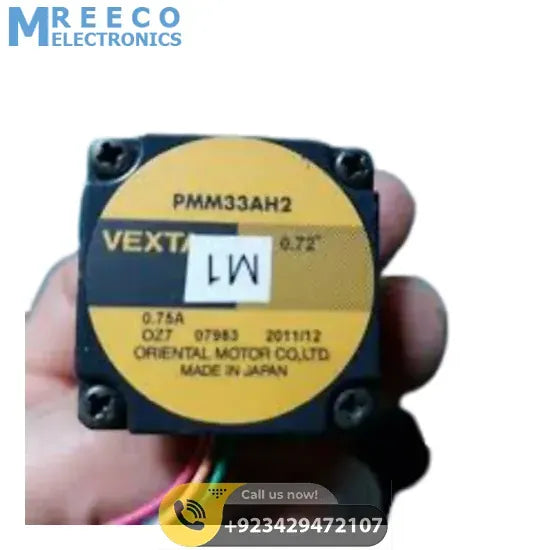

0.75A 5-Phase Vexta Oriental Stepper Motor PMM33AH2
Condition: New
Availability:
In Stock
Share:
SKU: 637739633268817390
Rs.1000
Rs. 1250
mb-3'>Specifications:
Motor
Frame
Size:
1.1
in.
sq. Shaft:
Single Type:
Standard Shaft-Gear
Type:
Round
Shaft
(No
Gearhead) Lead
Wires:
5 Current
per
Phase:
0.75
A
per
phase Step
Angle:
0.72
° Rotor
Inertia
(oz-in2):
0.05
oz-in2 Maximum
Holding
Torque
(lb-in):
0.29 RoHS
Compliant:
No Insulation
Resistance:
100
M
Ω
minimum
under
normal
temperature
and
humidity,
when
measured
by
a
500
VDC
megger
between
the
windings
and
case. Dielectric
Strength:
Sufficient
to
withstand
0.5
kV,
50
Hz
power
applied
between
the
windings
and
casing
for
1
minute
under
normal
temperature
and
humidity. Temperature
Rise:
Temperature
rise
of
the
coil
measured
by
the
Change
Resistance
Method
is
176°F
(80°C)
or
less
(at
standstill,
five
phases
energized). Insulation
Class:
Class
B
[266°F
(130°C)]
Recognized
as
Class
A
[221°F
(105°C)]
by
UL
and
CSA
standards. Ambient
Temperature
Range:
14°F
~
122°F
(-10°C
~
50°C)
(nonfreezing) Ambient
Humidity:
85%
or
less
(noncondensing) Shaft
Runout:
0.002
in
(0.05
mm)
T.I.R.
at
top
of
the
output
shaft Concentricity:
0.003
in.
(0.075
mm)
T.I.R. Perpendicularity:
0.003
in.
(0.075
mm)
T.I.R. Radial
Play:
0.001
inch
(0.025
mm)
max.
of
1.12
lb.
(5
N) Axial
Play:
0.003
in
(0.075
mm)
max.
of
2.2
lb.
(10
N)
mb-3'>Package
Includes:
1
x
Vexta
Oriental
PMM33AH2
Stepper
Motor
