SKU: 637730989767746613
NEW, UNUSED, fresh out of the box.
In electronics and electrical engineering, a fuse is an electrical safety device that operates to provide overcurrent protection of an electrical circuit. Its essential component is a metal wire or strip that melts when too much current flows through it, thereby interrupting the current.
Cartridge fuses are used to protect motors and branch circuits where higher amps or volt ratings are required. General Purpose fuses have no time-delay and protect fuse panels, appliances, and branch circuits.
Specifications:

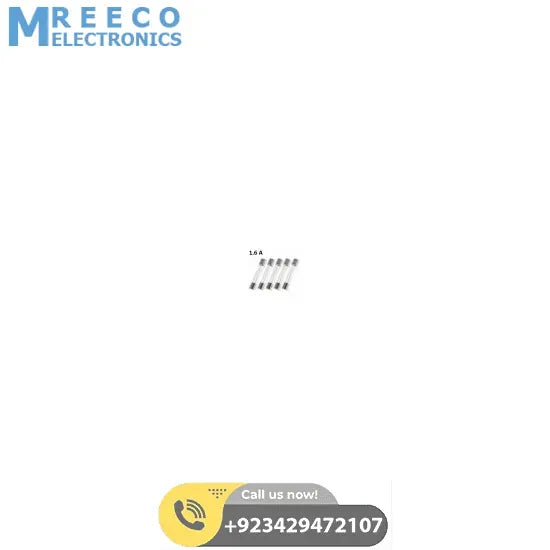

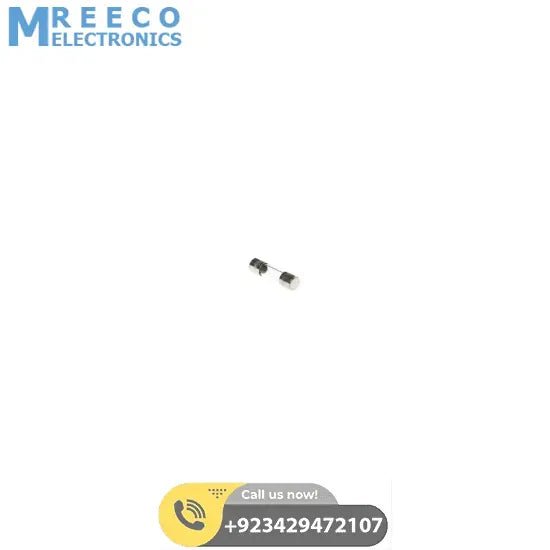

- Attribute Value Current Rating 1.6 A
- Voltage Rating 250 V ac
- Fuse Speed F
- Fuse Size 5 x 20mm Diameter 5mm Overall Length 20mm
- Body Material Glass
- High Rupture Capacity No
- Breaking Capacity at Maximum Voltage Rating 35 A Includes Indicator No Size Designation Miniature Maximum
- Operating Temperature +125°C
- Minimum Operating Temperature -55°C
- Resistance 50.2mΩ
Typical Application:
Cartridge fuses are a relatively cheap way of protecting electrical equipment from short circuits and overcurrent and can be used to protect electrical appliances such as motors air-conditions, refrigerator, pumps, etc. They can be found in the following areas:
- Industrial
- Commercial
- Home/Residential
- Automotive
