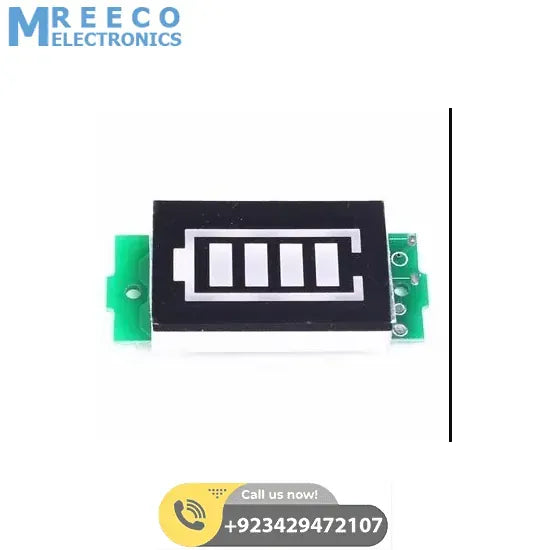

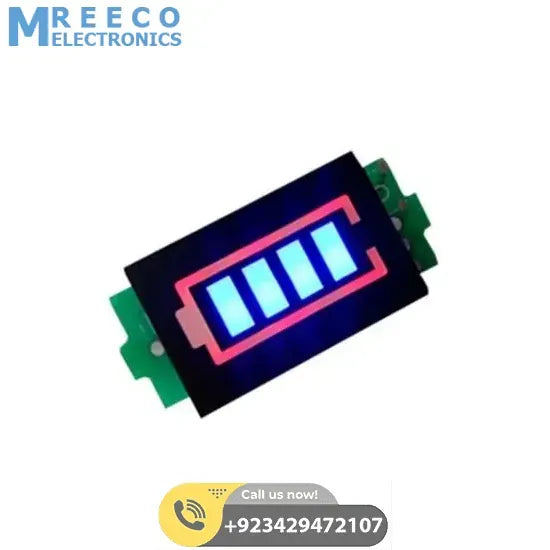

1S Lithium Battery Capacity Indicator

1S

Lithium Battery Capacity Indicator

provide a quick visual reference of the charge status (capacity) of 18650 Lithium-ion batteries, as well as other lithium batteries with a maximum voltage of 4.2 volts per cell.1S

Lithium Battery Capacity Indicator

is perfect for DIY power supplies, battery chargers, RC and electric vehicles, to provide quick and easy-to-read voltage status of the battery.1S

Lithium Battery Capacity Indicator

color is red, and the display bars are blue.

Dimensions of 1S

Lithium Battery Capacity Indicator

Indicator Display Range:

1S

Lithium Battery Capacity Indicator

Module: 3.3V - 4.2V

Battery status display:

1. When the battery voltage is over N * 3.3V, it will illuminate 1 bar (N represents the number of battery cells, e.g. 1, 2, 3 or 4).
2. When the battery voltage is over N * 3.5V, it will illuminate 2 bars
3. When the battery voltage is over N * 3.7V, it will illuminate 3 bars.
4. When the battery voltage is over N * 3.9V, it will illuminate 4 bars.
5. When the battery voltage is less than N * 3.3V, none of the bars will illuminate, indicating that the battery is less than 3.3V and in need of recharging.

Features of 1S

Lithium Battery Capacity Indicator

:

Battery Type

Electricity Quantity Display

Wide Application Field

Lithium Battery Capacity Indicator

Digital Color

1S

Lithium Battery Capacity Indicator

color is red, and the display bars are blue

Using Method

Connect the module to the positive and negative connections of your battery or battery pack, and the charge status of the battery is displayed in real time using a visual bar display

Package Includes:

1 x 1S

Lithium Battery Capacity Indicator

Voltmeter Module
