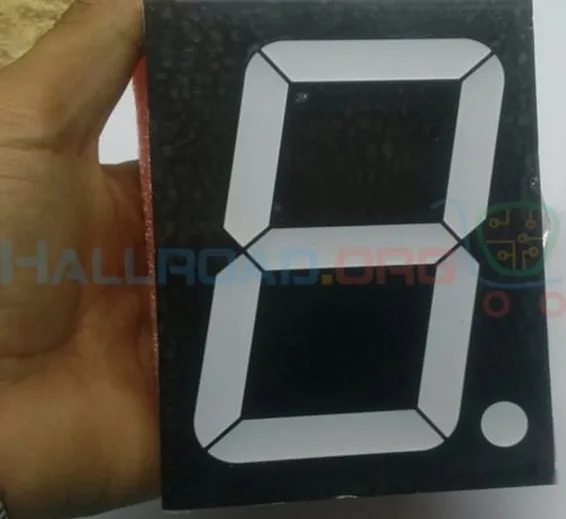

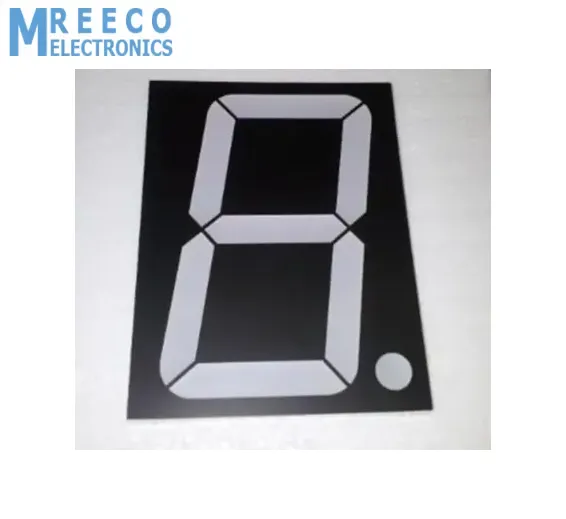

122mm x 90mm x 15mm 7 segment Super Bright LED Screen Display

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637721592114911150

Rs.650 Rs. 813

5 inch 7 segment Super Bright LED Screen Display is basically seven Light Emitting Diodes (LED). 5 inch 7 segment Super Bright LED Screen Display is arranged in a unique pattern. This pattern of arrangement makes it possible to display characters and digits (A, B, C, D, E, F,1,2,3,4,5,6,7,8,9,0) by turning ON of OFF one or more of the LEDs. Seven Segment Displays come mostly in RED, Green and Yellow colours and can be either common anode or common cathode type. To avoid damage, current limiting is necessary when driving a Seven Segment Display. Consider using a seven-segment display in your Clock, timer or projects that demand a digital readout. Seven Segment Displays are fast; this makes it possible to drive a string of them with few connections by multiplexing.

Features of 5 inch 7 segment Super Bright LED Screen Display:

  • Standard brightness.
  • Low current operation.
  • Excellent character appearance.
  • Easy mounting on P.C.boards or sockets.
  • Ultra segment intensity.
  • Wide viewing angle.
  • Used widely in home appliances, instrument, car accessory, etc.

Specifications of 5 inch 7 segment Super Bright LED Screen Display:

  1. Size: 140.00 x 107.00 x 16.00 (mm).
  2. Forward Voltage: 12V.
  3. Forward Current: 15-20mA.
  4. Current: 4-5mA(Average), 100mA(Peak).
  5. Operating voltage: 14V for number, 5V for decimal.
  6. Common Anode.
  7. Consists of 10 pins, which two of them are common anode pins.

Package Includes:

1 x 5 inch 7 segment Super Bright LED Screen Display
