SKU: 637730971396768064
The 74HC165 is a high-speed Si-gate CMOS device and is pin-compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC165 are 8-bit parallel-load or serial-in shift registers with complementary serial outputs (Q7 and Q7) available from the last stage. When the parallel load (PL) input is LOW, parallel data from the D0 to D7 inputs are loaded into the register asynchronously. When PL is HIGH, data enters the register serially at the Ds input and shifts one place to the right (Q0 --> Q1 --> Q2, etc.) with each positive-going clock transition. This feature allows parallel-to-serial converter expansion by tying the Q7 output to the DS input of the succeeding stage. The clock input is a gated-OR structure which allows one input to be used as an active LOW clock enable (CE) input. The pin assignment for the CP and CE inputs is arbitrary and can be reversed for layout convenience. The LOW-to-HIGH transition of input CE should only take place while CP HIGH for predictable operation. Either the CP or the CE should be HIGH before the LOW-to-HIGH transition of PL to prevent shifting the data when PL is activated.
Features And And Specifications Of 8 Bit Parallel Load Shift Register 74HC165 IC:
- Asynchronous 8-bit parallel load
- Synchronous serial input
- IC number: 74165
- Family: 74
- Number of circuits: 1
- Number of pins: 16
- Technology: CMOS
Datasheet

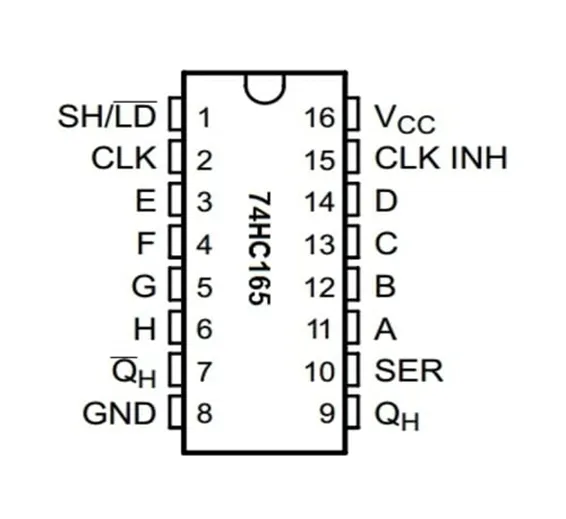

Pinout:
Package Include:

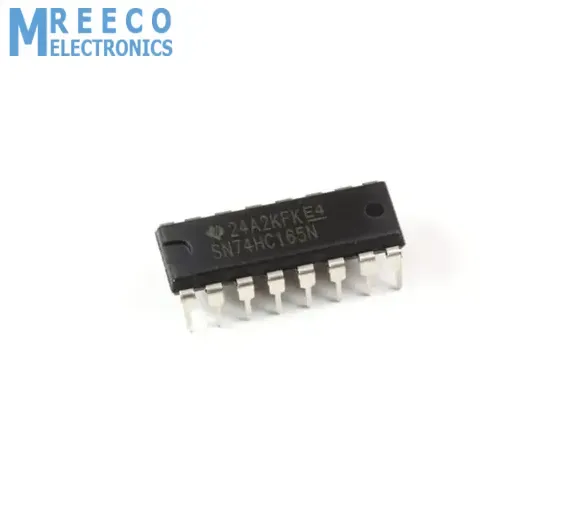

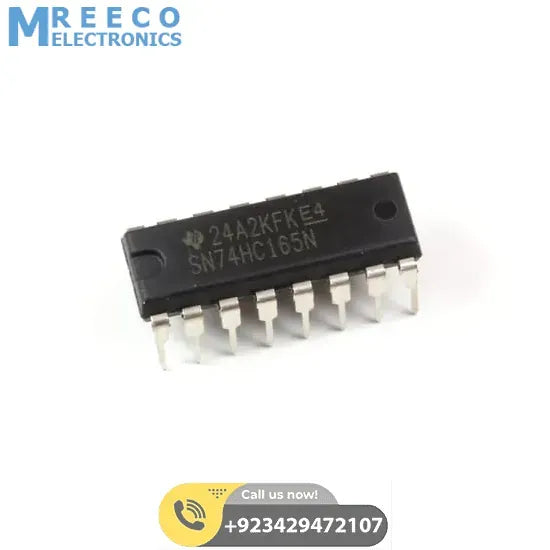

- 1x 74HC165 Parallel To Serial 8 Bit Shift Register IC
