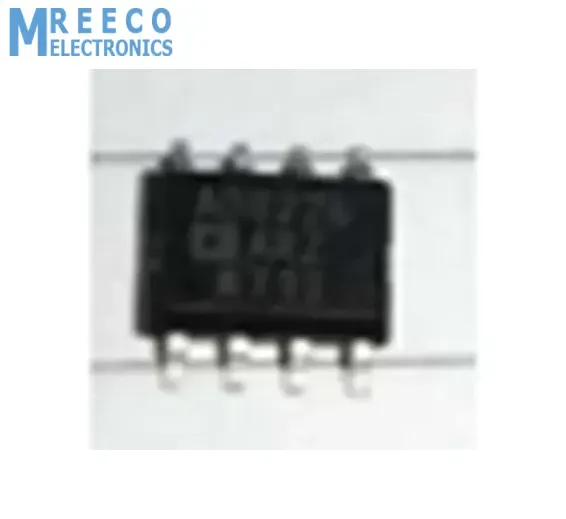

AD8226 Wide Supply Range, Rail-to-Rail Output Instrumentation Amplifier op amp in Pakistan

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637730989893993985

Rs.450 Rs. 563

Features and Benefits

  • Gain set with 1 external resistor
  • Gain range: 1 to 1000
  • Input voltage goes below ground
  • Inputs protected beyond supplies
  • Very wide power supply range
  • Single supply: 2.2 V to 36 V
  • Dual supplies: 1.35 V to 18 V
  • Bandwidth (G = 1): 1.5 MHz
  • CMRR (G = 1): 90 dB minimum for BR models
  • Input noise: 22 nV/Hz
  • Typical supply current: 350 A
  • Specified temperature: 40C to 125C
  • 8-lead SOIC and MSOP packages

Product Details

The AD8226 is a low cost, wide supply range instrumentation amplifier that requires only one external resistor to set any gain between 1 and 1000.

The AD8226 is designed to work with a variety of signal voltages. A wide input range and rail-to-rail output allow the signal to make full use of the supply rails. Because the input range also includes the ability to go below the negative supply, small signals near ground can be amplified without requiring dual supplies. The AD8226 operates on supplies ranging from 1.35 V to 18 V for dual supplies and 2.2 V to 36 V for single supply.

The robust AD8226 inputs are designed to connect to real-world sensors. In addition to its wide operating range, the AD8226 can handle voltages beyond the rails. For example, with a 5 V supply, the part is guaranteed to withstand 35 V at the input with no damage. Minimum as well as maximum input bias currents are specified to facilitate open wire detection.

The AD8226 is perfect for multichannel, space-constrained industrial applications. Unlike other low cost, low power instrumentation amplifiers, the AD8226 is designed with a minimum gain of 1 and can easily handle 10 V signals. With its MSOP package and 125C temperature rating, the AD8226 thrives in tightly packed, zero airflow designs.

The AD8226 is available in 8-lead MSOP and SOIC packages, and is fully specified for 40C to 125C operation.

For a device with a similar package and performance as the AD8226 but with gain settable from 5 to 1000, consider using the AD8227.

Applications

  • Industrial process controls
  • Bridge amplifiers
  • Medical instrumentation
  • Portable data acquisition
  • Multichannel systems
