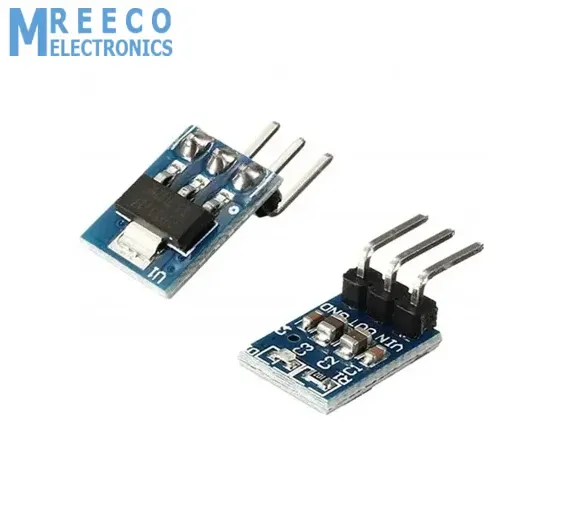

AMS1117-3.3 DC Voltage Regulator 3Pin Step-Down Power Supply Module in Pakistan
Condition: New
Availability:
In Stock
Share:
SKU: 637719003937387805
Rs.60
Rs. 75
Extra small size AMS1117-3.3 power module, support DC 4.2V-10V to 3.3V 800mA constant voltage output.VIN, OUT, GND 3 pin can be easily connected with your MCU development board, and supply capacitive power supply. Matched with AMS1117-3.3 LDO chip, supply stable low-voltage power supply for all kinds of Arduino / ESP, etc. microcontroller electronic experiment. Can not work above the operating voltage or reverse polarity, otherwise, the module will be damaged easily.
Specifications:- Product Name: AMS1117-3.3 Power Module
- Module Size: 8.6x12.33mm
- Input Voltage: DC 4.2V-10V
- Output Voltage: 3.3V
- Output Current: 800mA

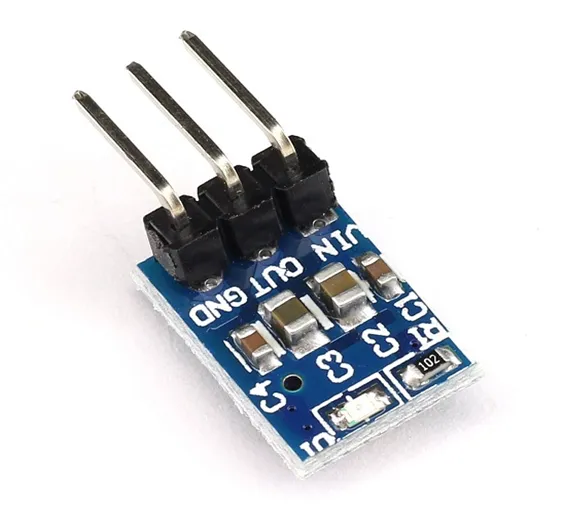

- Connection Mode: 3PIN

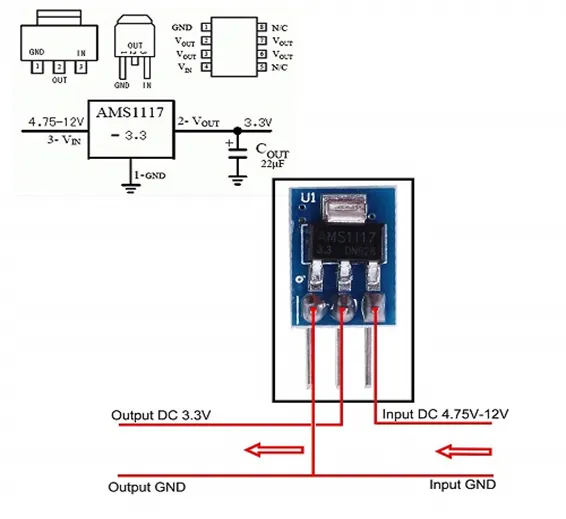

- VIN connect to input positive pole
- OUT Connect to output positive pole
- GND connect to input/output negative pole
- Please do not work above the operating voltage, or it will be damaged easily.
- The input voltage must be 1.5V or 2V higher than the output voltage, otherwise, it can not output enough power.
- Please do not reverse polarity, or it will be damaged because of a short circuit.
1XAMS1117-3.3 DC Buck Converter Voltage Regulator 3Pin Step-Down Power Supply Module
