APM2.8 Multicopter Flight Controller is an upgraded version of 2.5 2.6 with a Built-in Compass for FPV RC Drone Aircraft is the new APM2.8 flight controller. The sensors are exactly the same as the APM 2.6 flight controller, however, this has the option to use the built-in compass, or an external compass via a jumper. This makes the APM2.8 ideal for use with multi-copters and rovers. The APM2.8 Multicopter Flight Controller is a complete open source autopilot system and the bestselling technology that won the prestigious Outback Challenge UAV competition. It allows the user to turn any fixed, rotary wing or multirotor vehicle (even cars and boats) into a fully autonomous vehicle; capable of performing programmed GPS missions with waypoints. This revision of the board has an optional onboard compass, which is designed for vehicles (especially multi-copters and rovers) where the compass should be placed as far from power and motor sources as possible to avoid magnetic interference. (On fixed wing aircraft it’s often easier to mount APM far enough away from the motors and ESCs to avoid magnetic interference, so this is not as critical, but
APM 2.8
gives more flexibility in that positioning and is a good choice for them, too). This is designed to be used with the 3DR uBlox GPS with Compass so that the GPS/Compass unit can be mounted further from noise sources than APM itself.Features of Multicopter MEGA APM2.8 Flight Controller Black:
- Straight Needle
- Arduino Compatible!
- Onboard 4 MegaByte Dataflash chip for automatic data logging.
- Optional off-board GPS, a uBlox LEA-6H module with Compass.
- One of the first open source autopilot systems to use Invensense’s 6 DoF Accelerometer/Gyro MPU-6000.
- Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties. Atmel’s
ATMEGA2560 and ATMEGA32U-2
chips for processing and USB functions respectively.Specifications of Multicopter MEGA APM2.8 Flight Controller Black:
ModelAPM 2.8
Power supplyLP2985-3.3.
PortMUX (UART0, UART2, mnnI2, and OSD are optional, OSD is the defaulted output).
Input Voltage (V)12~16 VDC
Sensors3-Axis Gyrometer Accelerometer High-performance Barometer
ProcessorATMEGA2560 and ATMEGA32U-2
Micro-SD Card SlotNo
Dimensions (mm) LxWxH85 x 45 x 15
Weight (gm)82

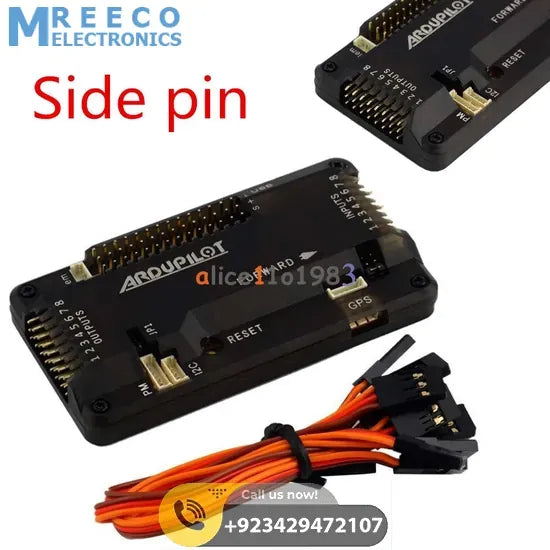

Package Includes:
1 x Multicopter MEGAAPM 2.8
Flight Controller Black + Connecting wires
