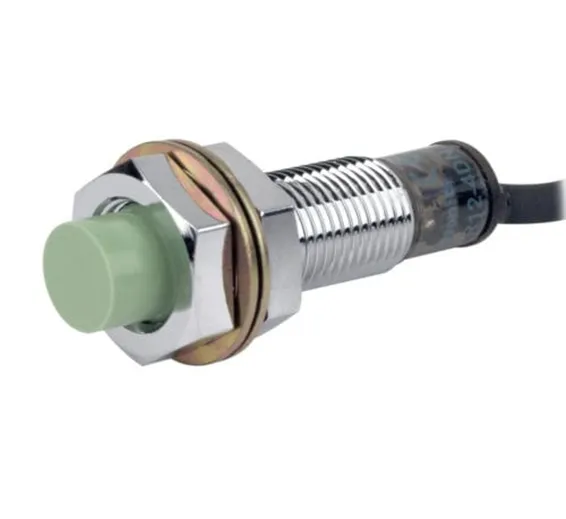

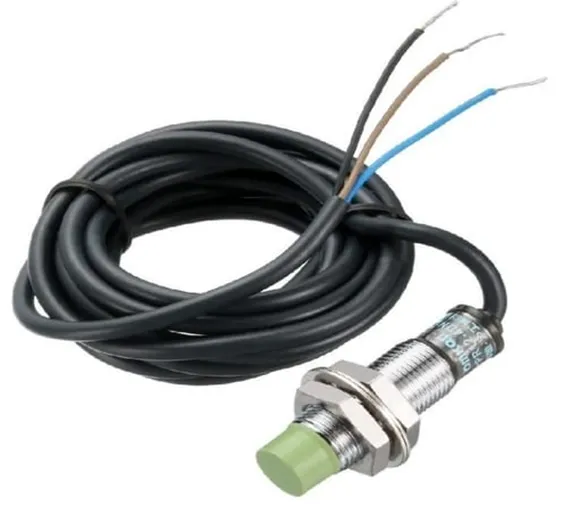

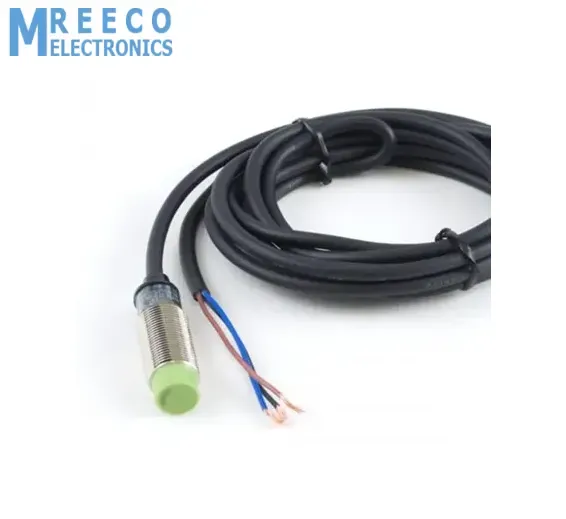

NPN PR12-4DN Autonics Cylindrical Inductive Proximity Sensor
SKU: 637721590319767684
This is Autonics PR12-4DN DC10~30 4mm M12 Inductive Proximity Sensor NPN-NO Series enhance superior noise resistance characteristics with dedicated IC which Autonics self-developed. Also, the series can be widely used in any applications where Proximity Sensors are required because of a diverse range of line-ups in terms of size and sensing distance.
This inductive proximity sensor generates an electromagnetic field to sense metal objects. It features built-in sensitivity volume and provides no-touch object detection. Inductive sensors use a magnetic field to detect objects. Capacitive sensors use an electric field. In order to be sensed by an inductive sensor, an object must be conductive.
This Prox distance Sensor limits suitable targets to metal objects (for the most part). In order to be sensed by a capacitive sensor, the target doesn’t need to be conducted. A capacitive sensor will react to an object acting as a dielectric material as well as a conductive object. This makes metal and non-metal objects suitable targets.
Features Of Inductive Distance NPN Proximity Sensor:
- Improve the noise resistance by adopting dedicated
- The built-in protection circuit of reverse power polarity (DC 3-wire type)
- The built-in surge protection circuit
- Built-in overcurrent protection circuit (DC type)
- Good performance of anti-interference.
- Many output forms
- High on-off frequency.
- IP67 protection structure (IEC standard).
- Replaceable for micro switches and limit switches.
Specifications Of PR12 4DN Autonics Cylindrical type proximity Sensor:
- Type: Cylindrical round (PR Series)
- Sensing Distance: 4mm
- Header dimension / square : 12mm
- Shield: Non-Shield
- Connection Type: 2m cable loose end
- Voltage: 12 – 24 VDC
- Wire Type: DC 3-wire
- Output Type : NPN 2- 100mA
- Frequency: 500Hz
Package Include:

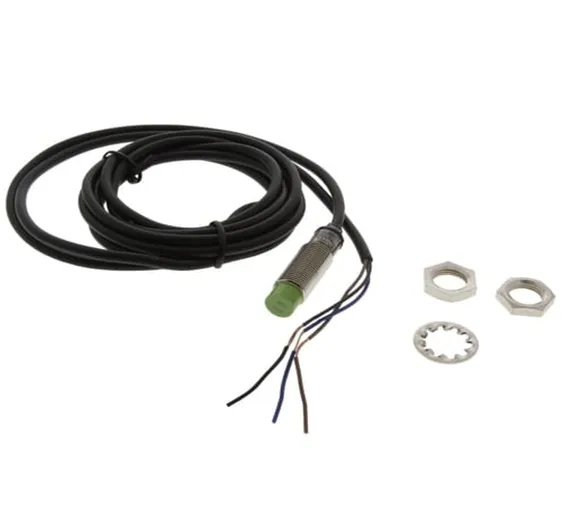

- 1x Inductive Proximity Sensor
