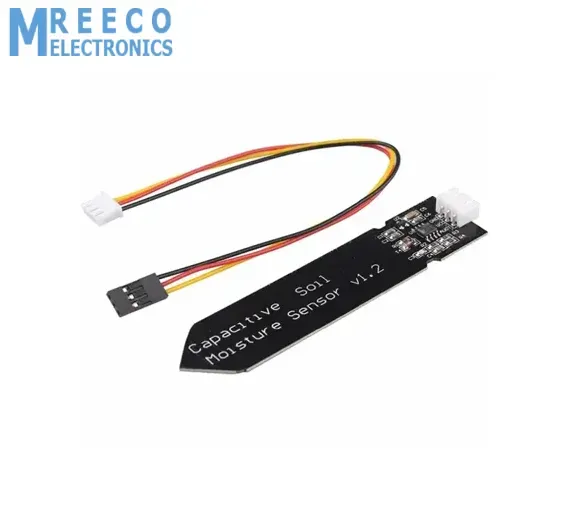

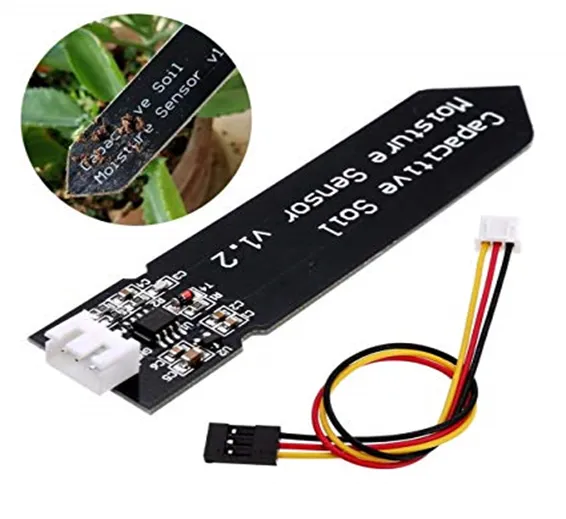

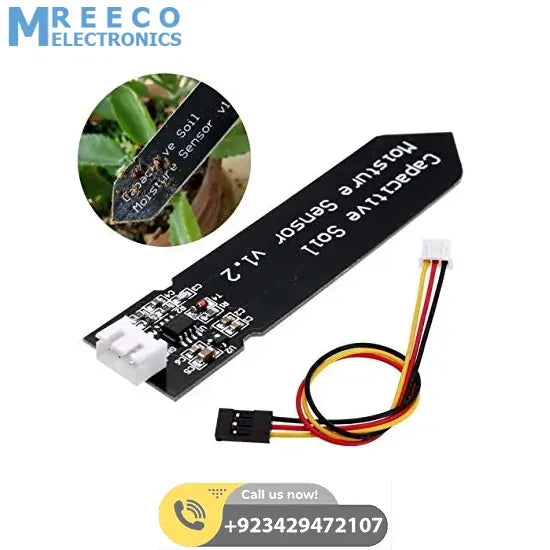

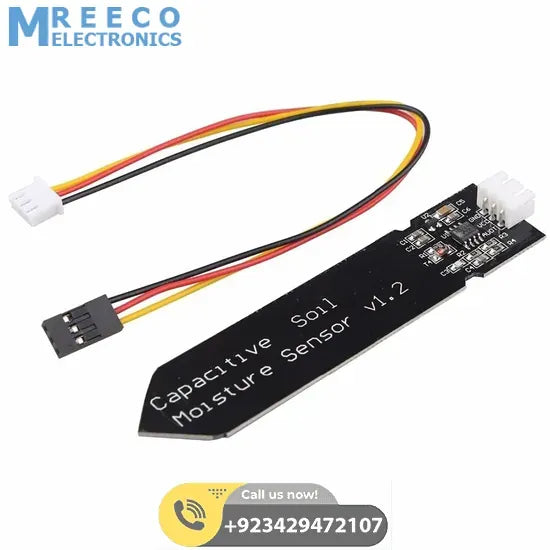

HW-330 Capacitive Soil Moisture Sensor Arduino Soil Moisture Sensor
SKU: 637720615280138313
This Capacitive Soil Moisture Sensor measures soil moisture levels by capacitive sensing, rather than resistive sensing like other types of moisture sensor. Capacitive Soil moisture sensor is made of a corrosion-resistant material giving it long service life. Insert capacitive soil moisture sensor into the soil and impress your friends with the real-time soil moisture data!. The product includes an on-board voltage regulator which gives it an operating voltage range of 3.3 ~ 5.5V. It is compatible with low-voltage MCUs (both 3.3V and 5V logic). To make it compatible with a Raspberry Pi, an ADC converter is required.
Features Of Capacitive Soil Moisture Sensor:
- Operating Voltage: 3.3 ~ 5.5 VDC
- Output Voltage: 0 ~ 3.0VDC
- Interface: PH2.0-3P
- Dimension: 98mm * 23mm (3.86in x 0.905in)
- Supports Gravity 3-Pin interface
- Analog output
Applications:
- Garden plants
- Moisture detection
- Intelligent agriculture
Product Wiki
/*************************************************** This example reads Capacitive Soil Moisture Sensor. ****************************************************/
const int AirValue = 520; //you need to replace this value with Value_1 const int WaterValue = 260; //you need to replace this value with Value_2 int intervals = (AirValue - WaterValue)/3; int soilMoistureValue = 0; void setup() { Serial.begin(9600); // open serial port, set the baud rate to 9600 bps } void loop() { soilMoistureValue = analogRead(A0); //put Sensor insert into soil if(soilMoistureValue > WaterValue && soilMoistureValue < (WaterValue + intervals)) { Serial.println("Very Wet"); } else if(soilMoistureValue > (WaterValue + intervals) && soilMoistureValue < (AirValue - intervals)) { Serial.println("Wet"); } else if(soilMoistureValue (AirValue - intervals)) { Serial.println("Dry"); } delay(100); }
