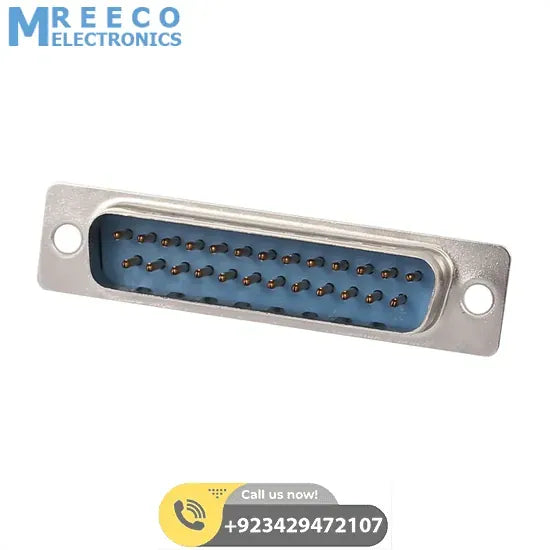

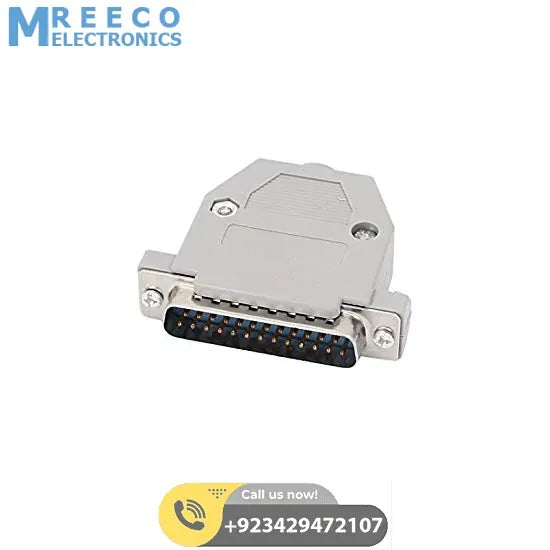

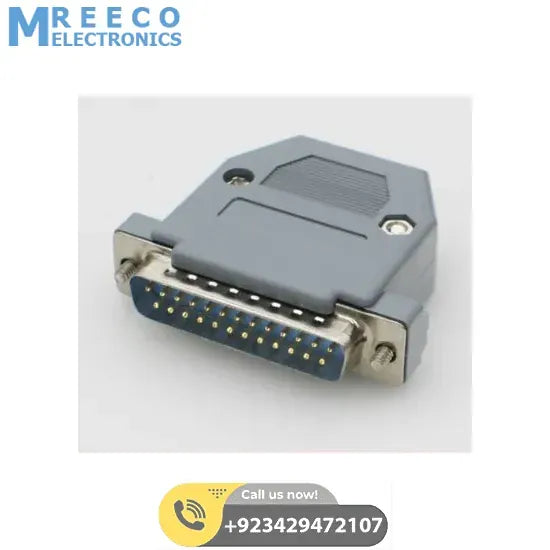

DB25 Connector 25 Pin Male Connector

The DB2

5

or D-subminiature or D-sub is a common type of electrical connector. DB2

5

are named for their characteristic D-shaped metal shield. Connector usually contains two or more parallel rows of pins or sockets surrounded by a D-shaped metal shield that provides mechanical support, ensures correct orientation, and screen against electromagnetic interference.

Specifications of DB2

5

Connector 2

5

Pin

Male

Connector: Connector Type

DB-2

5

Connector

Male

Voltage Rating (V)

2

5

0V AC

Current Rating (A)

5

Insulation Resistance 1000MΩ min. At

5

00 V DC Contact Resistance

20mΩ

Operating Temperature Range -

5

5

°C to +

12

5

°C Material

Metal and plastic

Length (mm)

5

3 Width (mm)

12

Height (mm) 1

5

Weight (gm)

7 (each)

Shipment Weight

0.164 kg

Shipment Dimensions 9 x 7 x

5

cm Features of DB2

5

Connector 2

5

Pin

Male

Connector:

1. Industry standard compatibility
2. Durable metal shell design
3. Precision formed contacts
4. Variety of Mating and mounting options

Package include:

1x DB2

5

Connector 2

5

Pin

Male

Connector with Plastic Cap
