Digital 2 Channel Stereo Audio Amplifier Board Module TDA3118
SKU: 637721586882625703
The Audio Amplifier Board Module TDA3118 is a limited version of the TDA3116D2. The limitation seems obtained by different packages for the two chips. This amplifier module is supplied in a plastic package (HTSSOP32) with a cooling pad turned downward on the PCB while the TPA3116D2 package has a cooling pad on the top for a heat-sink. The 2 channel stereo module is described in the common data-sheet as able to operate "without heat sink", which is no doubt correct for up to 19V supply voltage but maybe arguable at full supply voltage. The TDA3118 audio board module has a wide supply voltage range, even down to below 5 Volt. Being so versatile, it can be used for most audio applications in ordinary consumer products. For higher power levels TPA3118 is limited by the maximum in the supply voltage of 26V and the possibility to cool the chip.
Features Of PBTL Mono Digital Amplifier Board 1x60W TDA3118 :
- Mono digital audio power amplifier chip
- High output and low power consumption
- Sound quality is very good by using this module
Specifications Of TDA3118 60W Mono Channel Digital Audio Amplifier Board Module:
- Power amplifier chip: TPA3118
- Applicable speaker impedance: 4-8 ohm(8 ohm is the best)
- Audio Input: Bluetooth Receiving
- Power amplifier power: 1*60W
- Power supply voltage: 8~24VDC

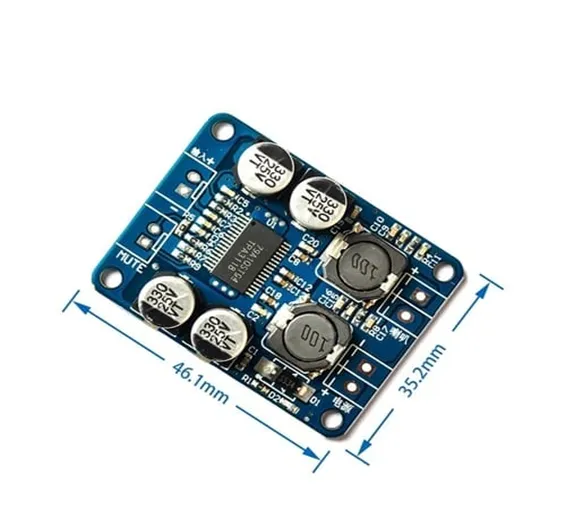

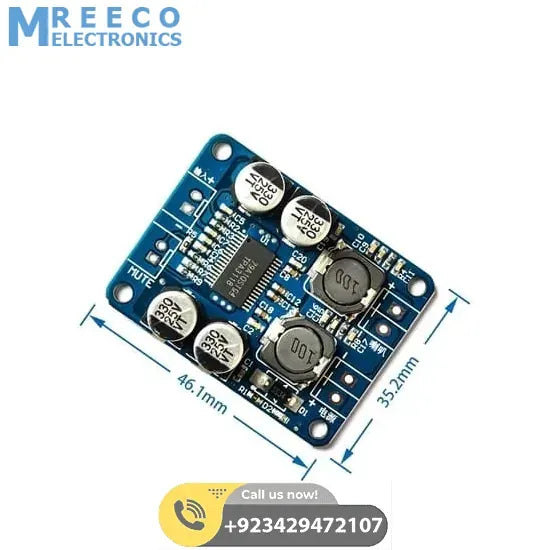

- Size: 46*35mm
Package Includes:
- 1 x Digital Audio Power Amplifier Board Amp Module TDA-3118
