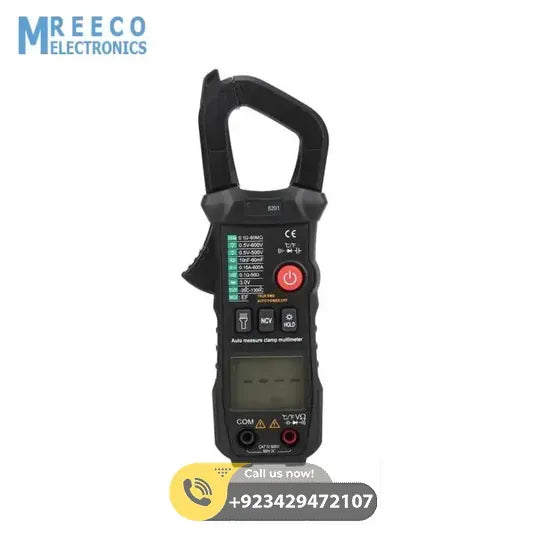

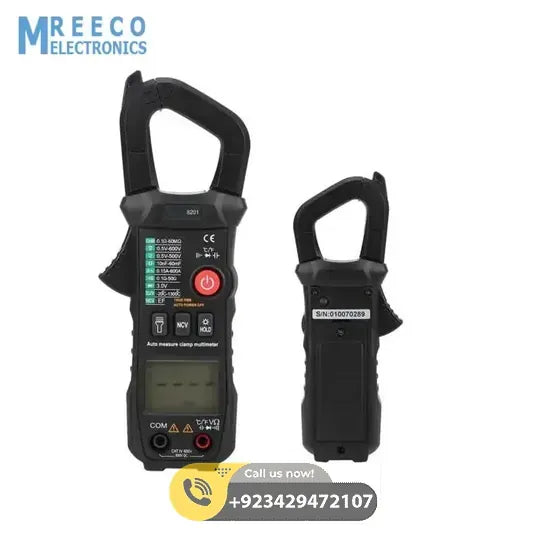

ET8201 600A 600V AC Clamp Meter Intelligent Automatic Identification High Accuracy Multimeter Ammeter
SKU: ET 8201
ET8201 600A 600V AC Clamp Meter Intelligent Automatic Identification High Accuracy Multimeter:
- Automatic scanning function, no need to turn the dial to select the function, according to the input voltage/current/resistance/current, the meter will automatically identify and measure DC voltage and AC voltage, AC and DC current 600A, resistance.
- High accuracy, it has stable performance and high reliability, and can perform professional high‑standard measurement. It can also be manually switched to measure capacitance, diode, continuity test, and other parameters.
- Overload protection function, it can respond quickly when connected to an overload power supply to ensure the safety of users.
- Large screen LCD display, driven by AAA 1.5V battery (battery not included), using boost power supply, even at the edge of 2.3V low battery, it can ensure the ultra‑high brightness of the backlight and flashlight, the backlight can be long on or within 15 seconds It will automatically close afterwards.
- Small size, light weight and portability, it can be used for hand‑held measurement in various situations.
Specification of ET8201 600A 600V AC Clamp Meter:
- Item Type: Clamp Multimeter
- Model: ET8201
- Material: ABS
- Power Supply: 2xAAA 1.5V Battery (Battery Not Included)
- Purpose: It is suitable for electric power numerical measurement.
- Maximum Display: 5999 (5 5/6) Digits Automatic Polarity Display
- Measurement Method: Double Integral A/D Conversion
- Sampling Rate: About 3 Times Per Second
- Over-Range Display: The Highest Position Displays "OL"
- Working Environment: (0-40)℃
Features of ET8201 600A 600V AC Clamp Meter:
- Material: ABS
- Color: black
- Battery: 2 * AAA battery
- DC voltage: Range: 6V/60V/700V Accuracy: ±(0.5%+3) Resolution: 0.001/0.01/0.1V
- AC voltage: Range: 6V/60V/500V Accuracy: ±(0.8%+10) Resolution: 0.001/0.01/1V
- DC current: Range: 60A/600A Accuracy: ±(2.5%+30) Resolution: 0.001/0.01A
- AC current: Range: 60A/600A Accuracy: ±(2.5%+30) Resolution: 0.001/0.01A
- Temperature measurement: Range: -20~1000℃ Accuracy: ±(1.0%+5)＜400℃; ±(1.5%+15)≥400℃ Resolution: 1℃ Range: 0~1832℉ Accuracy: ±(0.75%+5)＜750℃; ±(1.5%+15)≥750℉ Resolution: 1℉
- Resistance measurement: Range: 600Ω Accuracy: ±(0.8%+5) Resolution: 0.1Ω
- Range: 6KΩ/60KΩ/600KΩ/6MΩ Accuracy: ±(0.8%+3) Resolution: 1Ω/10Ω/100Ω/1KΩ
- Range: 60MΩ Accuracy: ±(2.5%+3) Resolution: 10KΩ
- Capacitance measurement: Range: 10nF/100nF/1μF/10μF/100μF/1mF/10mF Accuracy: ±(3.5%+20)
- Resolution: 10pF/100pF/1nF/10nF/100nF/1μF/10μF
- Range: 60mF Accuracy: ±(5%+3) Resolution: 100μF
- T-RMS: YES
- On-off buzzer: YES
- Backlit display: YES
- Data hold: YES
- NCV: YES
- Flashlight: YES
- Zero-fire line: YES
- Full unit symbol: YES
- Maximum display: 5999 5 5/6
- Sampling rate: about 3 times per second
- Working environment: 0~40℃ Relative humidity＜80%
- Size: 176×67×33mm (L×W×H)
- Weight：about 300g

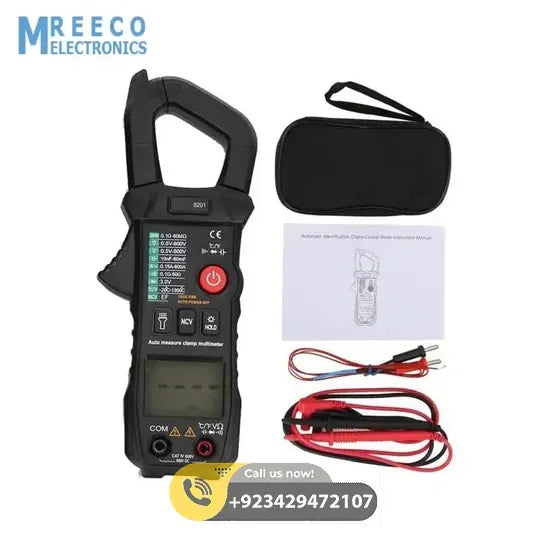

Package List:
- 1 x Clamp Meter (Battery Not Included)
- 2 x Test Lead
- 1 x Thermal Contact
- 1 x Manual

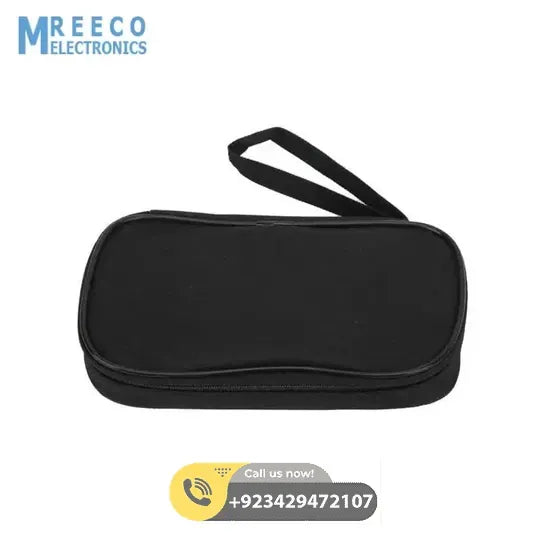

- 1 x Tool Bag
Note:
1. When measuring voltage, do not input a limit voltage that exceeds the effective value of DC 700V or AC 500V.
2. The voltage below 36V in the current range is a safe voltage.
3. When changing functions and ranges, the test leads should leave the test point.
4. Choose the correct function and range, and beware of wrong operation.
How to use:
Press and hold POWER for more than 2S, and it will display the automatic scanning state "‑‑‑‑" when it is turned on.
Insert the black test lead into the "COM" jack and the red test lead into the "V/Ω" jack; the test lead can touch the test point.
When the measured voltage between the input ports "COM" and "VR" is greater than 0.8V, regardless of the AC voltage or the DC voltage,
the meter will compare the DC component and the AC component, take the larger component signal, and then measureThe value is automatically
switched between 6V/60V/600V/DC1000V (AC 750V), and then the measured value is displayed on the LCD.
