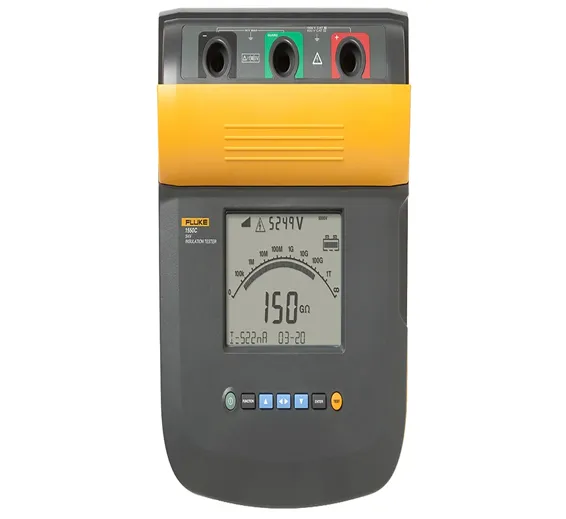

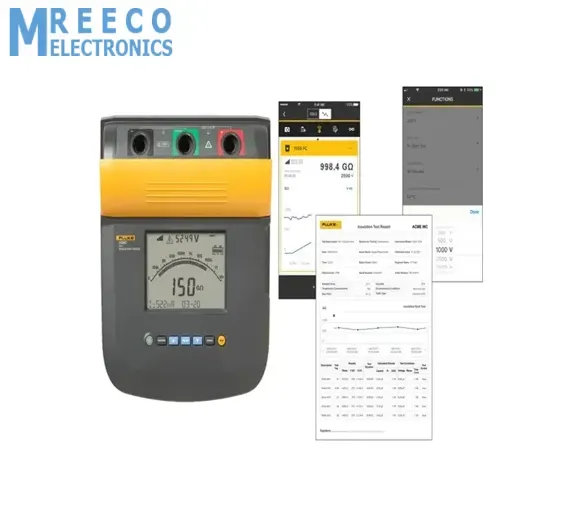

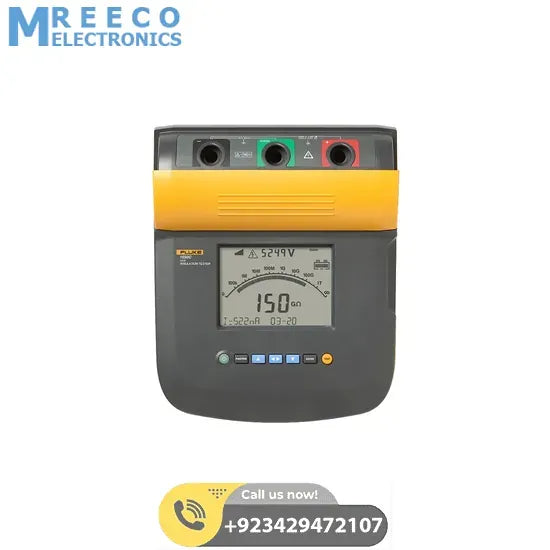

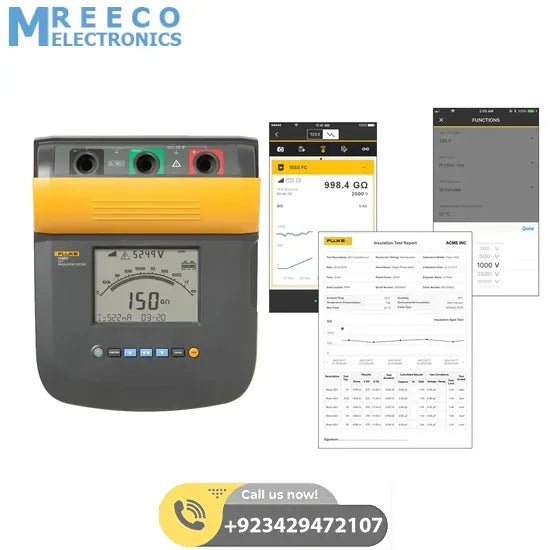

Fluke 1550C Insulation Resistance Tester

The Fluke 1550C insulation resistance tester offers digital insulation testing up to 5 kV, making them ideal for testing a wide range of high voltage equipment including switchgear, motors, generators, and cables. Fluke insulation testers can now conduct the entire range of test voltages specified in IEEE 43-2000 with the best in class,

Product Highlights

1. Test voltages up to 5 kV provide solutions for all applications
2. CAT IV 600 V safety rating
3. Voltage breakdown detection alerts the user that voltage is present and gives the voltage reading up to 600 V ac or dc for increased user safety
4. Selectable test voltages in 50 V steps from 250 to 1000 V, and 100 V steps 1000 V
5. Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
6. Long battery life gives the user over 750 tests between charges
7. Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
8. Guard system eliminates the effect of surface leakage current on high-resistance measurements
9. Large digital/analog LCD for easy viewing
10. Capacitance and leakage current measurement
11. Ramp function for breakdown testing
12. Resistance measurements up to 2TΩ
13. Timer settings up to 99 minutes for timed tests
14. 3-year warranty

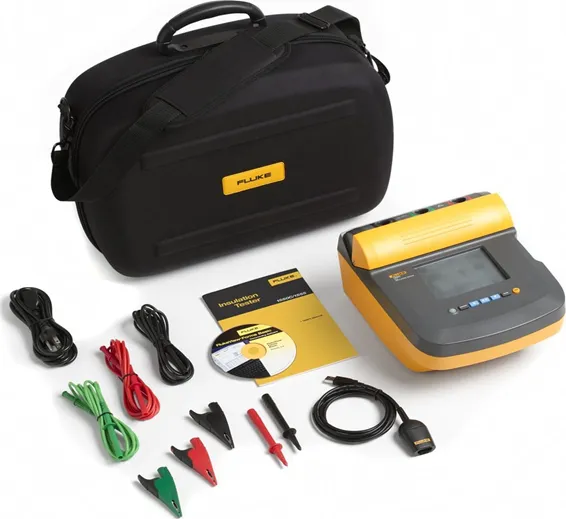

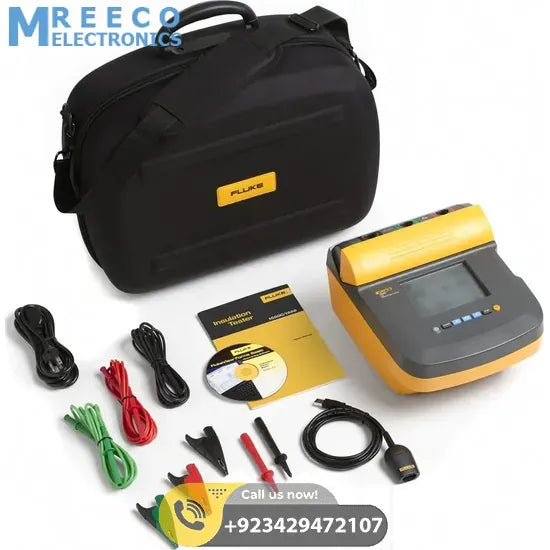

Each Unit Includes:

1. Test cables with alligator clips (red, black, green)
2. Alligator clips
3. Infrared adapter with interface cable
4. FlukeView Forms basic CD-ROM
5. AC power cord
6. Soft carrying case
7. Users manual on CD-ROM
8. Quick Reference card
9. English manual
10. USB-IR cable installation guide
11. FlukeView Forms installation guide
