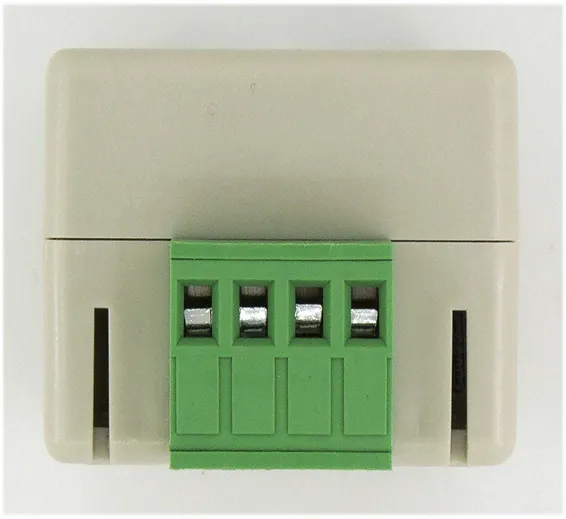

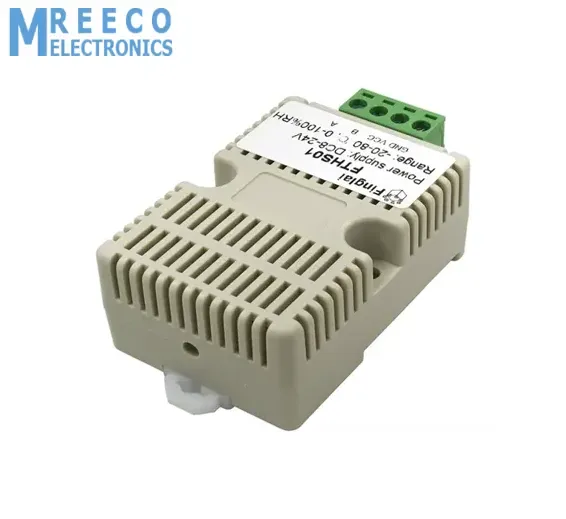

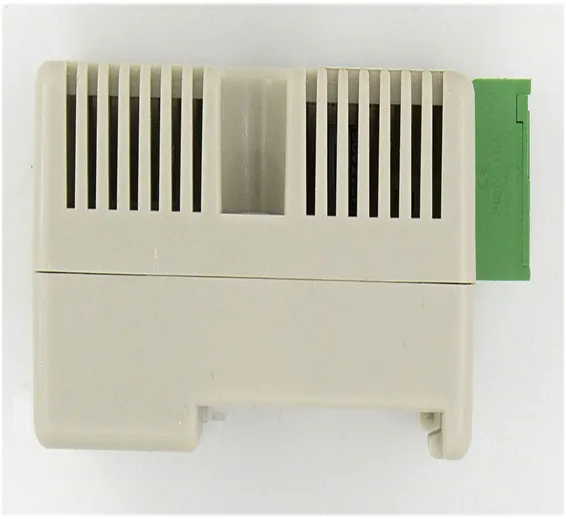

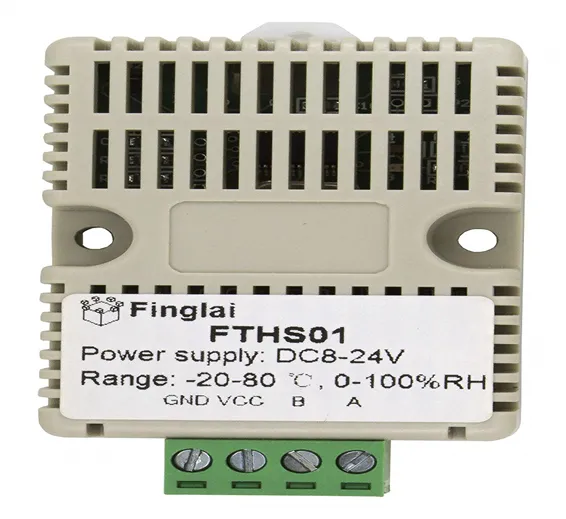

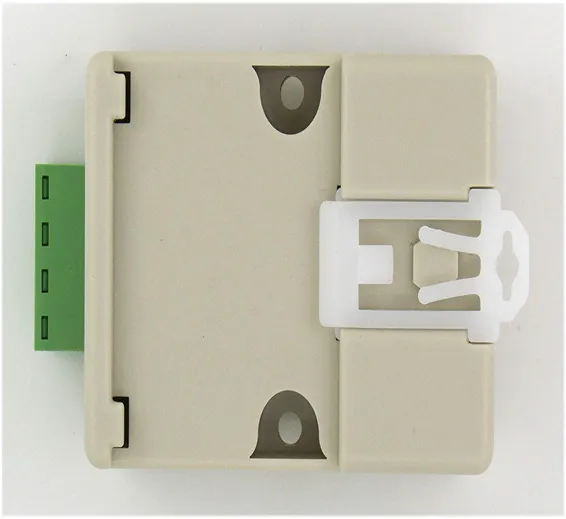

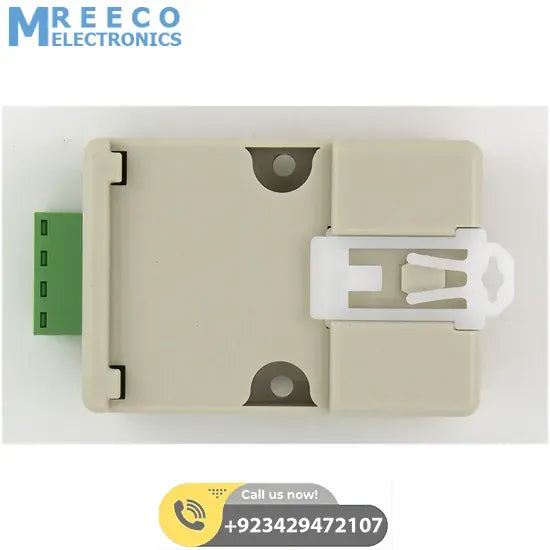

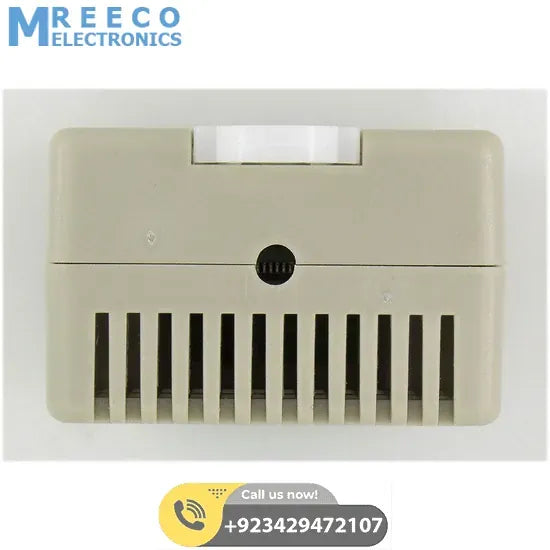

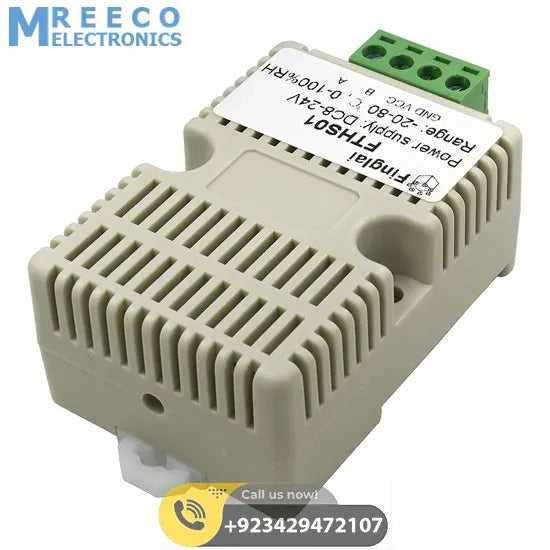

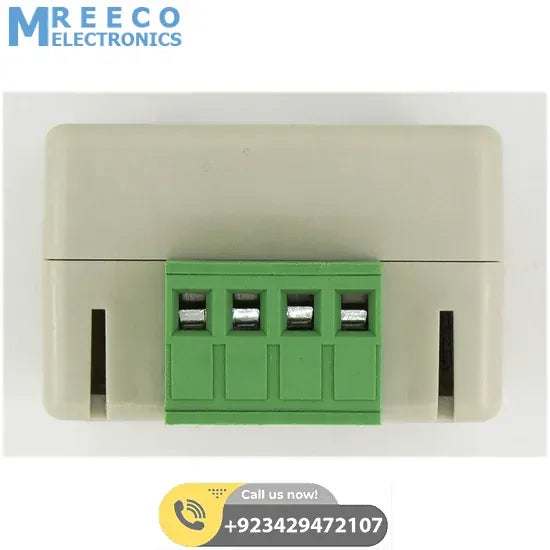

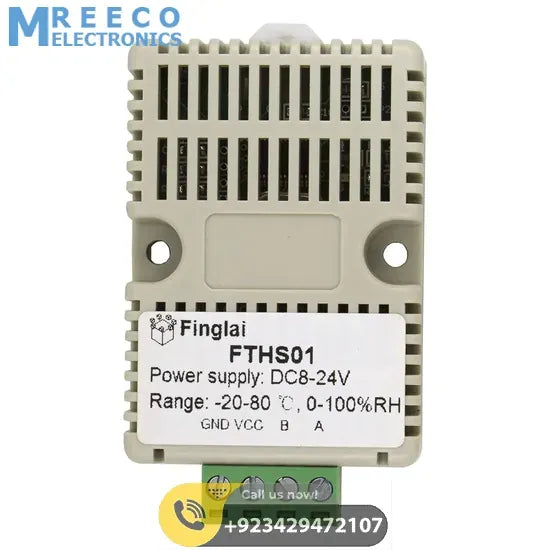

FTHS01 Integrated Temperature and Humidity Sensor Transmitter Industrial MODBUS RTU Protocol RS485
SKU: 637725047143967903
RS-485, also known as TIA-485, EIA-485, is a standard defining the electrical characteristics of drivers and receivers for use in serial communications systems. Electrical signaling is balanced, and multipoint systems are supported.A humidity sensor (or hygrometer) senses, measures and reports the relativehumidity in the air. It therefore measures both moisture and air temperature. Relative humidity is the ratio of actual moisture in the air to the highest amount of moisture that can be held at that air temperature.
Features: Model number FTHS01 Supply voltage 8-24VDC Suitable temperature range -20.0°C-80.0°C Temperature accuracy ±0.5°C Suitable humidity range 0.0%-100.0%RH Humidity accuracy ±0.3%RH Output interface RS485 Communication protocol Standard Modbus RTU Communication address 1-247 Baud rate 1200 bit/s, 2400 bit/s, 4800 bit/s, 9600 bit/s, 19200 bit/s Power consumption 0.1W max Mounting Din rail, screw External dimensions 45x65x28 mm Case material PC+ABS Operating temperature -20 to 70 °C Operating humidity 5-95% RH max, non-condensing Product manual:FTHS01 temperature humidity sensor transmitter: att.finglai.com/comp/fl-en/instrument/temperature-humidity-sensor/FTHS01.pdf

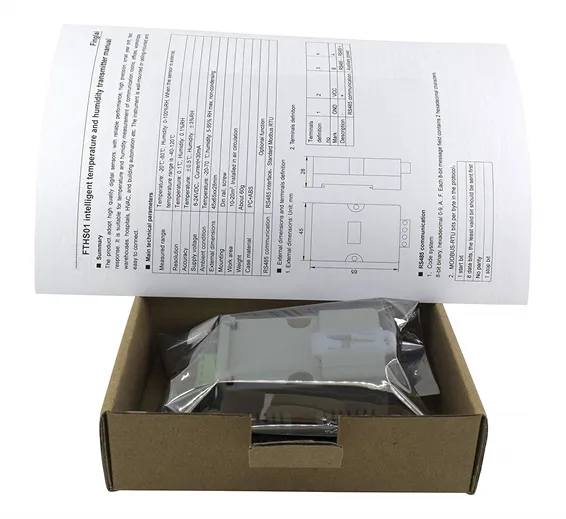

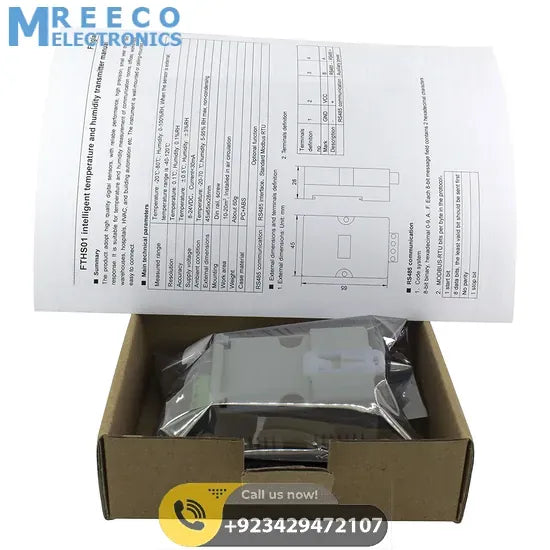

Package Include:1XFTHS01 Integrated Temperature and Humidity Sensor Transmitter Industrial MODBUS RTU Protocol RS485
