KF45 KF-45 3 Pin Power Connector 25 Amp PCB Mount Power Connector

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: 637725011017368535

Rs.45 Rs. 56

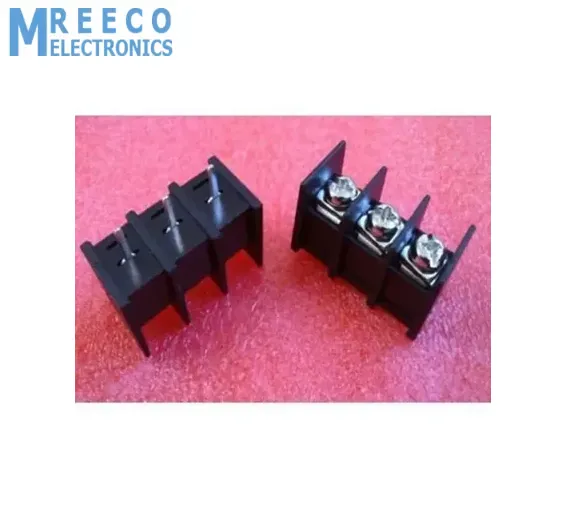

KF45S Barrier Terminal Block 9.5mm Spacing

9.5mm spacing barrier terminals with side expandable slot. The terminal accepts wire gauge of 22~12AWG. Connectors are available in black PA66 material.

Brief Data:

  • Voltage Rating: 300V.
  • Current Rating: 25A.
  • Wire Gauge: 22~12 AWG.
  • Pin Spacing: 9.5mm.
  • Number of Poles: 2~24 (Stackable)
  • Housing Material: PA66UL94V-0.
  • Solder Pin: Tinned Brass.
  • Screw: M3 Steel Nickel plated.
  • Mounting Type: PCB thru-hole.
  • Rated impulse voltage: 2KV.
