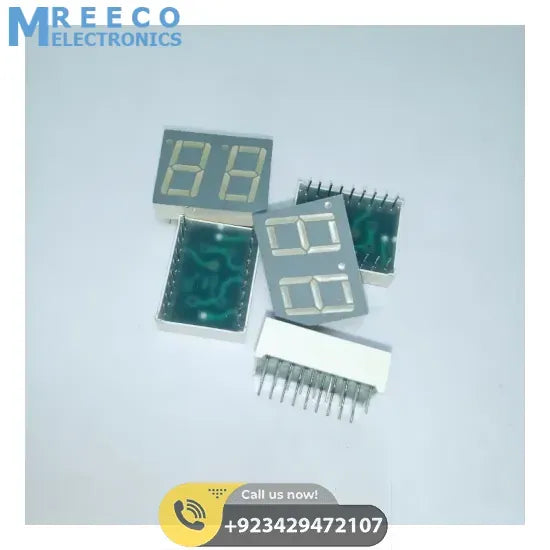

LED 7 Segment 2 Digit Common Anode
Display is 0.35 inches display led screen. LED 7 Segment 2 Digit Common Anode Display, is a form of the electronic display device for displaying decimal Numericals that is an alternative to the more complex dot matrix displays. Used widely in home appliances, instrument, car accessory, etc. It is commonly used in Arduino projects.
Features of LED 7 Segment 2 Digit Common Anode Display:
- Adopt 0.36 inch 2-digit common Anode Nixie tube
- Adopt low-level signal control for Nixie tube segment / bit-choice
- Connect VCC to the power supply, GND to ground, segment terminal a, b, c, d, e, f, d, up to single-chip I/O port.
- Notice: Forbid connect segment terminal to ground, otherwise, the Nixie tube segment terminal will be destroyed;
- Connect a bit-choice terminal to C1 and connect C2 to single-chip I/O port
- With LED indicator, it will be turned on when powered on
Specifications of LED 7 Segment 2 Digit Common Cathode Display:
- Product Name: LED Digital Display Tube
- Type: Common Cathode
- Common Cathode: 10-5
- Digital Display: 2 Digit
- Digital Number: 2 Bit 7 Segment
- Emitted Color: Red
- Pin Number: 10
- Continuous Forward Current: 20mA
- Average Forward Voltage: 2V
- Power Consumption : 36mW
- Luminous Intensity: 11mcd
- Number Height: 0.35 inch
- Panel Size : 15 x 14 x 7.2mm / 0.59 x 0.55 x 0.28 inch (L*W*H)
- Total Size : 15 x 14 x 13.5mm / 0.59 x 0.55 x 0.53 inch (L*W*H)
- Material: Plastic, Metal
- Colour: Black, White
Package Includes:
- 1 x LED 7 Segment 2 Digit Common Cathode Display
