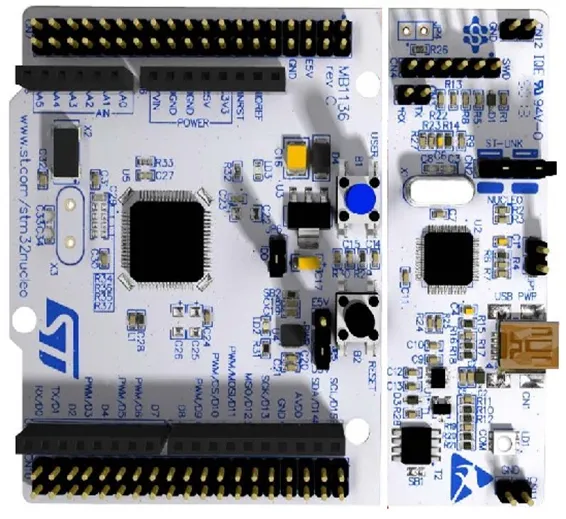

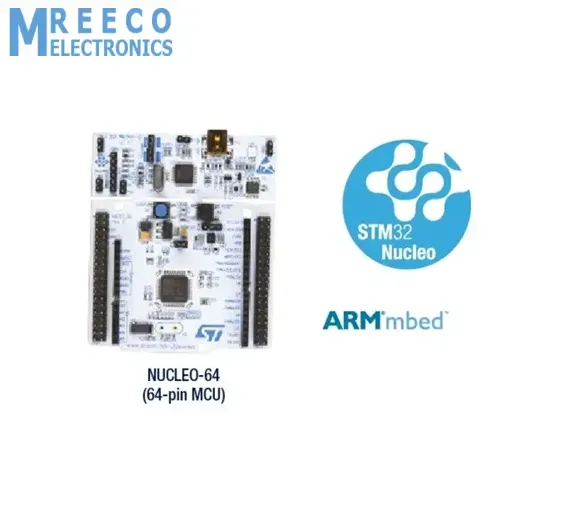

NUCLEO F103RB STM32 Nucleo-64 Development Board In Pakistan

STM32 Nucleo 64 board provides an affordable and flexible way for users to try out new concepts and build prototypes using STM32 Nucleo 64 or STM32 microcontroller, choosing from the various combinations of performance, power consumption, and features. For the compatible boards, the SMPS significantly reduces power consumption in Run mode. The Arduino™ Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields. The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger and programmer.

STM32 Nucleo 64 microcontrollers in LQFP64 package, choosing from the various combinations of performance, power consumption, and features. The Arduino™ Uno V3 connectivity support and the ST morpho headers allow expanding easily the functionality of the Nucleo open development platform with a wide choice of specialized shields. The STM32 Nucleo boards do not require any separate probe as they integrate the ST-LINK/V2-1 debugger and programmer. The STM32 Nucleo boards come with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to
the Arm® Mbed™ online resources at http://mbed.org/.

NUCLEO F103RB STM32 Nucleo-64 Development Board Features:

1. The STM32 microcontroller in QFP64 package
2. Flexible board power supply:
   1. USB VBUS or external source(3.3V, 5V, 7 – 12V)
   2. Power management access point
3. Three LEDs:
   1. USB communication (LD1), user LED (LD2), power LED (LD3)
4. Two push-buttons: USER and RESET

STM32 Nucleo-64 development board with STM32F103RB MCU supports Arduino and ST morpho connectivity:

Key Features:

1. STM32 microcontroller in LQFP64 package
2. External SMPS to generate Vcore logic supply (only available on ‘-P’ suffixed boards)
3. 1 user LED shared with Arduino™
4. 1 user and 1 reset push-buttons
5. 32.768 kHz LSE crystal oscillator
6. Board expansion connectors:
   1. Arduino™ Uno V3
   2. ST morpho extension pin headers for full access to all STM32 I/Os
   3. External SMPS experimentation dedicated connector (only available on ‘-P’ suffixed boards)
7. Flexible power-supply options: ST-LINK USB VBUS or external sources
8. On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability. Three different interfaces supported on USB: mass storage, virtual COM port and debug port
9. Comprehensive free software libraries and examples available with the STM32Cube MCU Package
10. Support of a wide choice of Integrated Development Environments (IDEs) including IAR ™, Keil ®, GCC-based IDEs, Arm® Mbed™
11. Arm® Mbed Enabled™ compliant (only for some Nucleo part numbers)

Package Include:

• 1x STM32 Nucleo-64 Development Board

Note:

    Programming Cable No Included. Here is the link of a programming cable.
