STM32F429 439 Arm Cortex M4 Development Kit

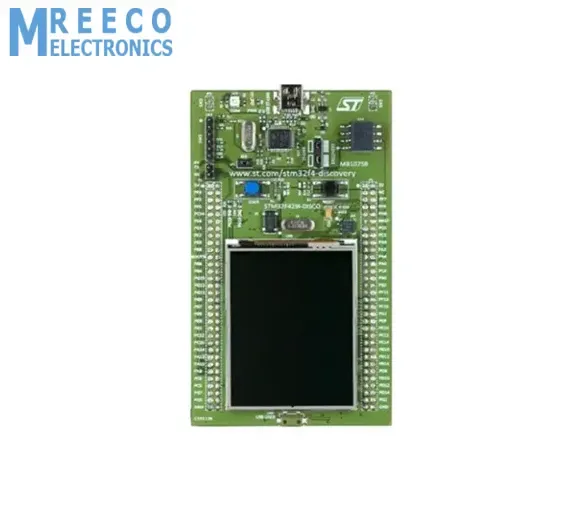

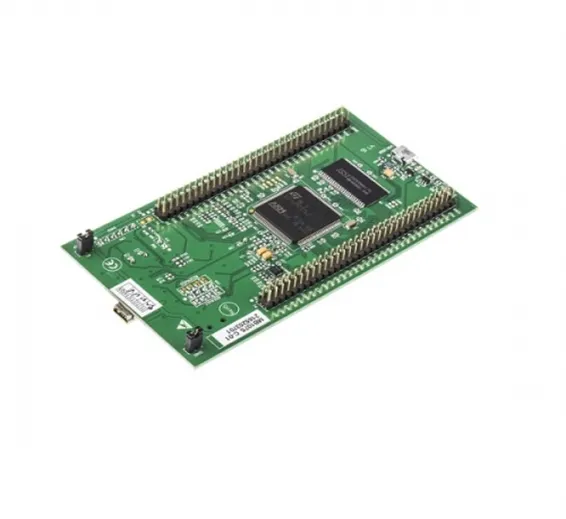

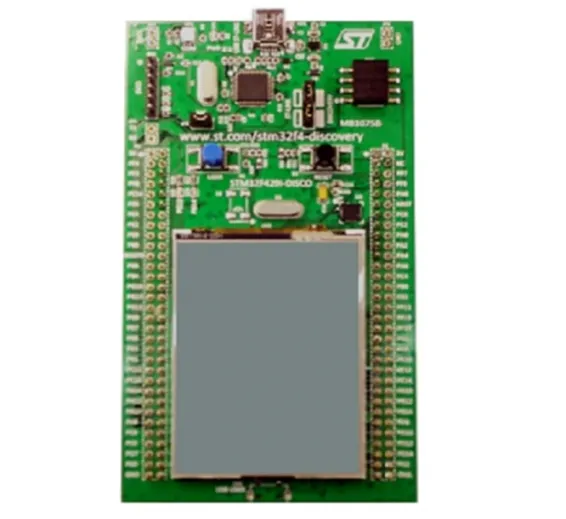

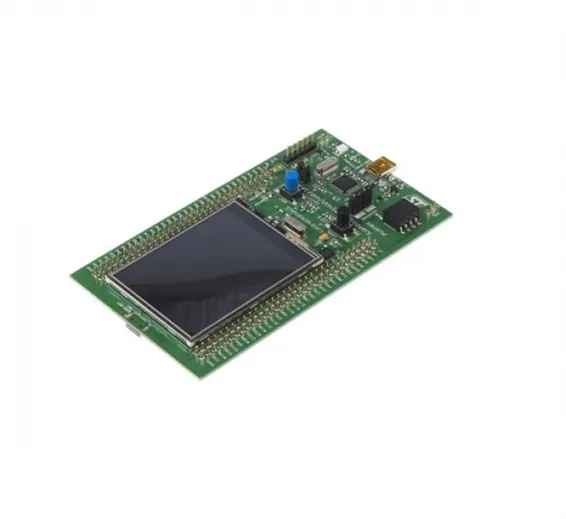

STM32F429I-DISC1 How can I program a popular microcontroller of the STM32F4 series? You can learn it with the help of the STM32F429-Discovery and realize own applications. An introduction in the ARM technology with modern touch display makes it possible for newcomers and professionals. The STM32F429/439 discovery uses the ARM Cortex M4 controller STM32F429ZIT6 and has included ST-Link/V2 to programme and debug. This microelectronics discovery kit has also a touch graphic LCD, a

Properties Of STM32F4 High-Performance Cortex M4:

1. microcontroller STM32F429ZIT6 (144 pins) with
2. 1. 32 Bit ARM Cortex-M4 MCU
   3. 180 MHz
   5. 2 MByte flash
   7. 256 KByte RAM
3. 2.4″ colour touch graphic LCD
4. 1. 2.4 inches
   3. 240 x 320 pixel, QVGA
   5. illumination
5. 64 MBit SDRAM
6. 1. for graphic data with a high colour depth
7. 3 axes acceleration sensor
8. 1. = digital gyroscope
9. 6 LEDs
10. 1. 1 for USB communication
    3. 1 Power-LED for 3.3 V
    5. 2 for own use
    7. 2 LEDs for USB on-the-go
11. 2 button
12. 1. 1 for reset
    3. 1 for own use
13. programmer onboard

Functions Of STMicroelectronics Discovery MCU Development Kit:

• ST-Link/V2 for programming and debugging onboard with the help of a jumper the board also can be used as ST-Link/V2 for programming and debugging external microcontrollers (over SWD-connection)
• The power supply of the board over USB or external over 3V e.g. 5V
• 3V and 5V are available for external peripheral equipment
• Connection external peripheral equipment over USB with micro USB-cable
• The pins of the microcontroller are outward over multi-pin connectors

Example Of Use/Tutorials:

You can find help for the programming of the display in our download-area and in the following tutorials. Please note: The tutorials are only in german.

• STM32 C++ Tutorial.
• AVR C++ Tutorial.
• micro Grafic Library µGL Tutorial.

Recommendation Of Software:

Please Attention that SiSy Microcontroller++ is only in German. The substantial range of the function of this board is optimally supported by SiSy Microcontroller++ for the development of own program. SiSy Microcontroller++ is a software package for designing, writing, dating, burning and checking the self-developed program. There are features of an easy development for programming available and it's possible to work with UML. The own work will be optimized with a sample program and integrated facilities. Here you can find continuing information about SiSy Microcontroller++.

System Requirements For Discovery-Board:

• PC with Windows XP / 7 / 8
• Mini USB-cable

System Requirements For SiSy:

• PC with Windows 2000 / XP / 2003 / Vista / 7 / 8 / 10
• (32-bit and 64-bit are supported)

Package Includes:

• 1 x STM32F429/439 Arm Cortex M4
