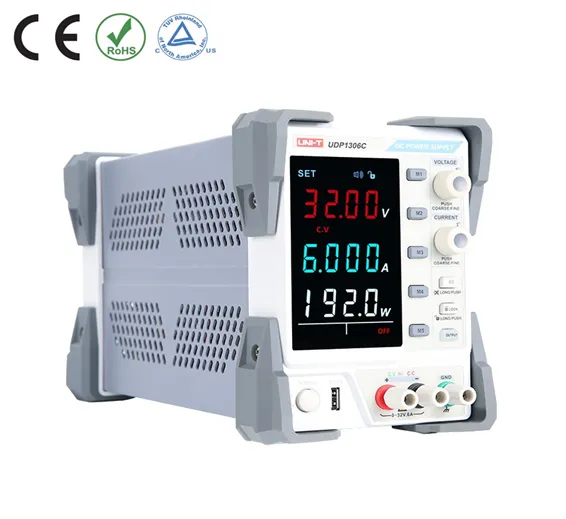

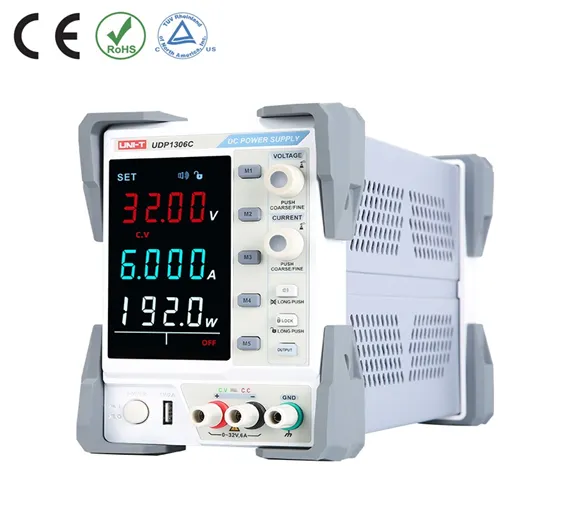

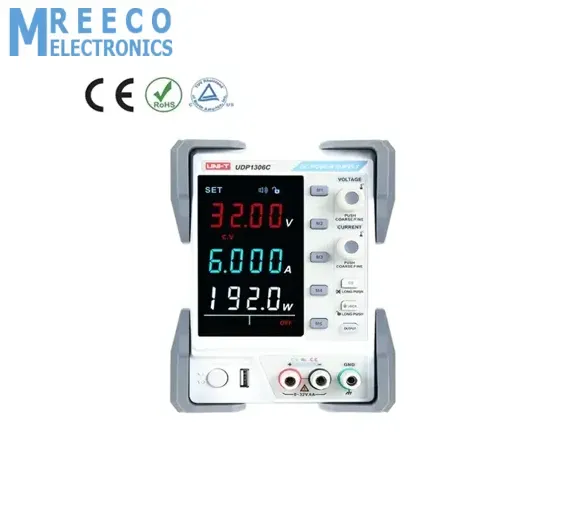

UDP1306C Industrial Linear DC Power Supply
Condition: New
Availability:
In Stock
Advance Payment Only
Share:
The UDP1306C DC power supply has two groups of independentoutputs: the adjustable output of 32V/6A, which has the constantvoltage (CV) and constant current (CC) modes, and the fixedoutput of 5V/2A with protection features of short circuit andovervoltage.
SKU: TCBOX88
Ask Price
Features of UDP1306C Industrial Linear DC Power Supply:
- 4-digit high precision display
- OVP OCP OTP protection
- Output setting viewable
- Remote control (output ON/OFF)
- Shutdown memory/keypad lock
- Intelligent cooling fan
- USB charging interface
- RS232 program-controlled communication
- USB device communication
- 5 sets of data storage
Technical Specifications of UDP1306C Industrial Linear DC Power Supply:
| Specifications | ||
| Model | UDP1306C | |
| Output voltage (CH1/CH2) | 0~32V | |
| Output current (CH1/CH2) | 0~6A | |
| Output power | 192W | |
| Display mode | 3-window, 4-digit voltage and current high precision display | |
| Resolution | Voltage | 10mV |
| Current | 1mA | |
| Load regulation | Voltage | <0.01%+5mV |
| Current | <0.1%+10mA | |
| Power regulation | Voltage | <0.01%+3mV |
| Current | <0.1%+3mA | |
| Setting accuracy(25℃±5℃) | Voltage | <0.5%+20mV |
| Current | <0.5%+10mA | |
| Ripple and noise(20Hz~20MHz) | Voltage | ≤2mVrms |
| Current | ≤3mArms | |
| Temperature coefficient | Current/Voltage: ≤300ppm/℃ | |
| Voltage rising/falling time delay | ≤100ms (10% rated load) | |

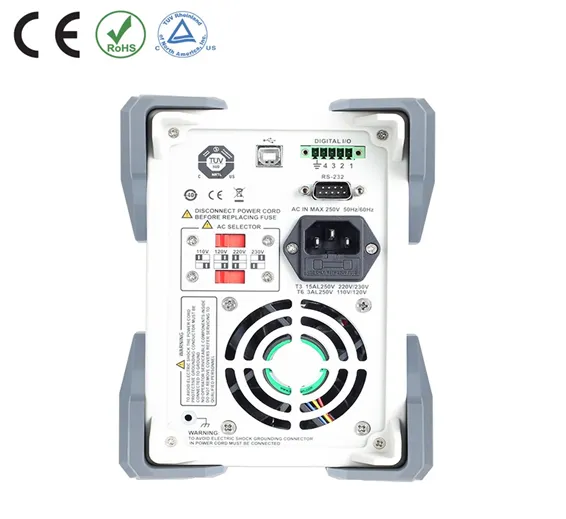

| Interfaces | USB Host (5V/2A), USB Device, RS-232 | |
| General Characteristics | ||
| Power | AC 100V/120V/220V/230V±10%, 50Hz/60Hz | |
| Product net weight | 7.5kg | |
| Product size | 136mm x 194mm x 327mm | |
| Standard accessories | USB communication cable, output cables, Power cord | |
| Standard individual packing | Carton box | |
| Standard quantity per carton | 1pcs | |
| Standard carton measurement | 505mm x 270mm x 335mm | |
| Standard carton gross weight | 9.6kg | |
