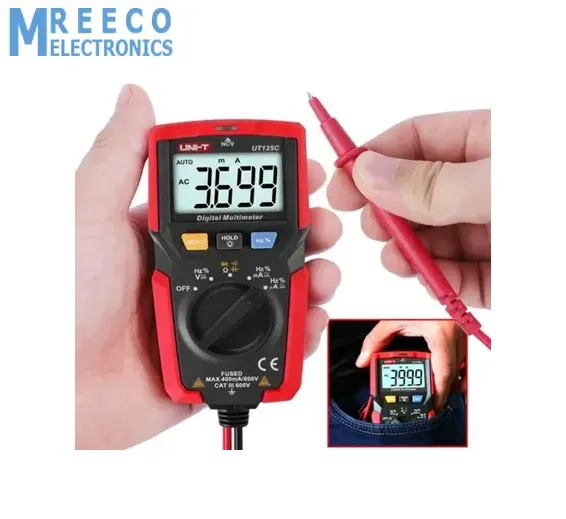

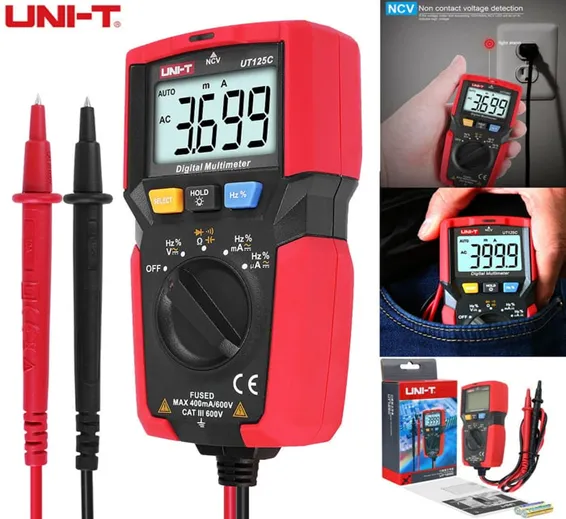

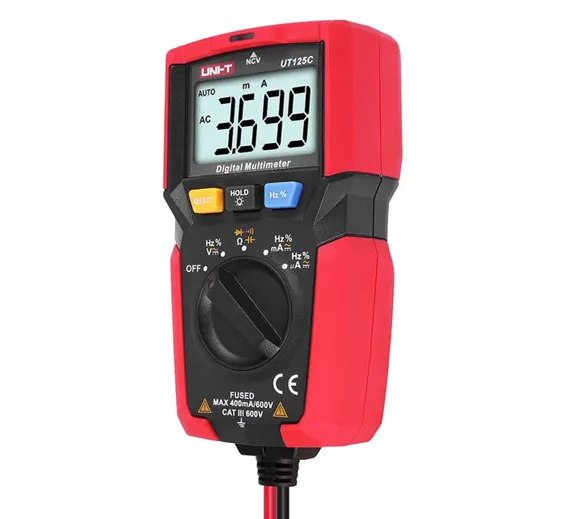

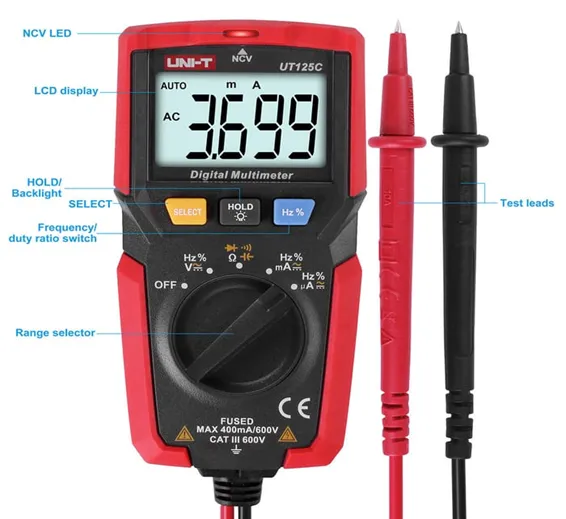

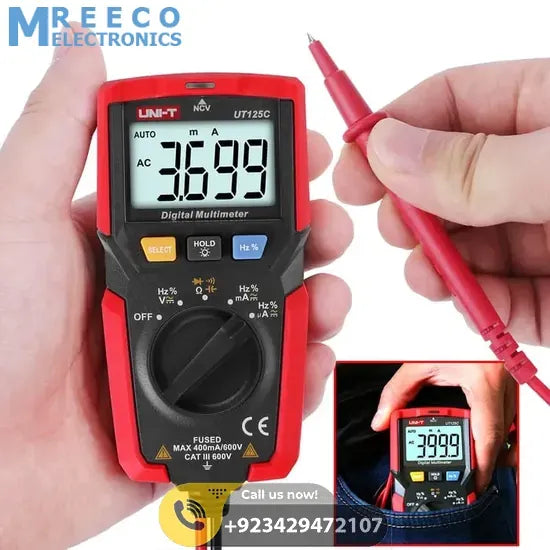

UNI T UT125C Digital Multimeter
SKU: TMD1,Th6,KRT
UNI T UT125C digital multimeter is a powerful, dependable tool that safely measures various parameters. This UT-125C voltmeter designed to safely and accurately troubleshoot a variety of automotive and household electrical problems. UT 12 C tester can be used to measure voltage, DC current, resistance, continuity, and diode test, continuity test. This mini LCD digital multimeter adopts with a large LCD display provides accurate, easy-to-read results, and the maximum reading can up to 4000, and support data retention function. This handheld meter With large overview backlight LCD display can show data clearly, can make display easy to read in the dark condition. So this volt-ohm meter can enable you to complete your work quickly and efficiently. Equipped with universal multimeter plug, easy to use.
Features Of Pocket Digital Multimeter UNI-T UT125C:
- Small size, easy to carry and operate.
- 600V DC/AC voltage measurement.
- 400mA DC/AC current measurement.
- Resistance/Capacitance/Diode/Continuity test.
- Frequency/Duty cycle measurement.
- CE (EMC, LVD, RoHS), cETLus.
- CAT III 600V.
- 1m drop test.
Specification Of
- Brand: UNI-T
- Model Number: UT125C
- Material: ABS
- Display Type: Digital display
- Max. Display Count: 4000
- Operating Mode: Auto range
- Operating Temperature: 0~50℃
- Storage Temperature: -10~50℃
- Storage Humidity: ≤75%RH(0~30℃), ≤50%RH(30~40℃)
- Operating Altitude: 0~2,000m
- Falling Tester: 2m
- Safety Level: CAT III 600V
- DC Voltage Range: 400mV / 4V / 40V / 400V / 600V
- AC Voltage Range: 4V / 40V / 400V / 600V
- DC Current Range: 400μA / 4mA / 40mA / 400mA
- AC Current Range: 400μA / 4mA / 40mA / 400mA
- Resistance Range: 400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ
- Capacitance Range: 50nF / 500nF / 5uF / 50uF / 100uF
- Power Supply: 2 * 1.5V AAA battery (NOT included)

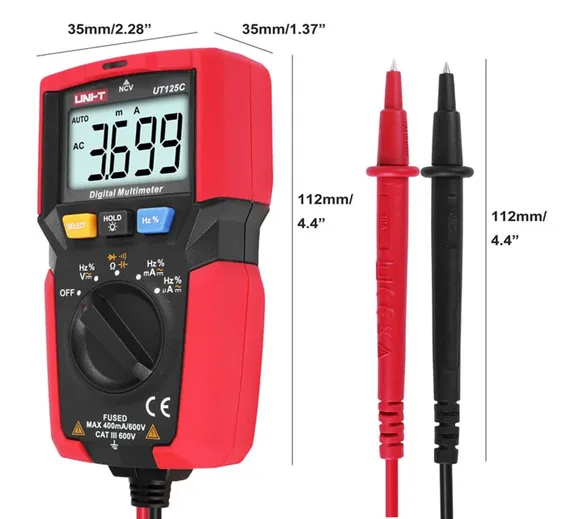

- Screen Size: 38*23mm / 1.5*0.9in
- Test Probe Cable Length: 86mm / 3.4in
- Weight: 211g / 7.4oz (approx.)
UNI-T UT125C User Manual.
Package includes:
- 1 x UNI-T UT125C Digital Multimeter
- 2 x Test Lead
- 1 x English Manual
