UNI T DMM Digital Multimeter UT61A

Condition: New
Availability: In Stock
Advance Payment Only
Share:     Faceook Twitter

SKU: TMD1,Th6,KRT

Ask Price

The UNI-T UT61A auto/manual ranging multimeter is designed for both commercial and residential applications. This Ut-61A smart DMM meter is an auto/manual ranging meter for measuring AC/DC current and voltage, resistance, capacitance, frequency, microamps, and duty cycles in commercial, home repair, automotive and electrical testing applications. UT 61 A ac dc multimeter comes with non-contact voltage detection. This multimeter has a bright large backlit LCD display and auto power-off feature and also features data hold and max/min reading.

Features Of Best Budget Multimeter UNI-T UT-61A:

  • Fully featured auto-ranging DMM with non-contact AC voltage detection
  • Back-lit LCD screen with 40-segment analogue bar
  • Date hold + Max/Min + relative measurement (except frequency & duty cycle)
  • AC/DC Voltage/Current, Resistance, Capacitance, Diode, Transistor, Continuity & Frequency

Specifications Of UT 61A Modern Digital Multimeter:

  1. Max. LCD display: 3,999
  2. Range selection: Auto
  3. DC voltage: 400mV ± 0.8%, 4/40/400 V ± 0.5%, 1,000 V ± 1.0%
  4. AC voltage: 400mV/4/40/400 ± 1.0%, 750 V ± 1.2%
  5. DC current: 400u/4mA ± 1.0%, 40/400mA ± 1.2%, 4/10 A ± 1.5%
  6. AC current: 400u/4m ± 1.2 %, 40m/400mA ± 1.5 %, 4/10 A ± 2.0%
  7. Resistance: 400ohm ± 1.2%, 4k/40k/400k ± 1.0%,4 Mohm ± 1.2%,40 Mohm ± 1.5%
  8. Capacitance: 40nF/400n/4µF / 40µF ± ± 3.0% , 400µ ± 4.0%, 4mF (unspecified)
  9. Frequency range: 10-10MHz ± 0.1%
  10. Diode test: yes
  11. hFE: Yes
  12. Non-contact voltage detection: Yes
  13. Continuity test: yes
  14. Dimensions: 7 x 3 ½ x 1 ¾ inches
  15. Power: 9V 6F22 battery
  16. Weight: 13 oz

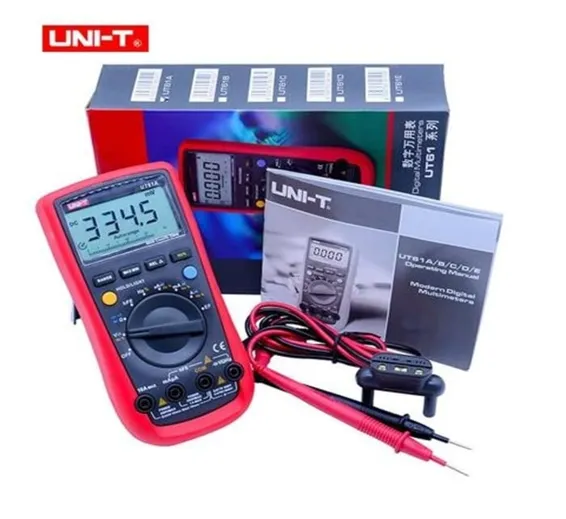

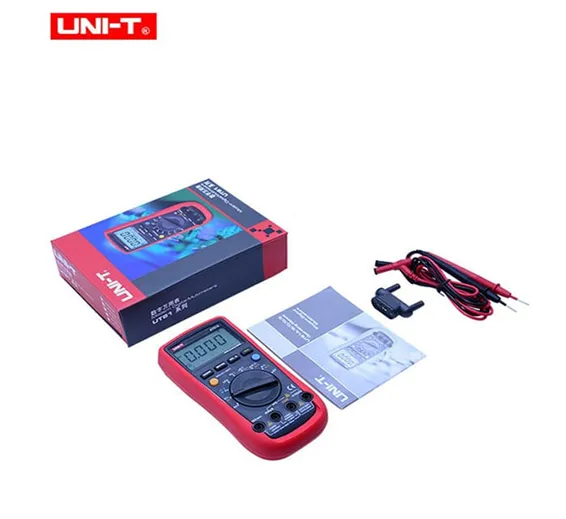

Package includes:

  • 1 x UT-61A digital multimeter
  • 2 x Test leads
  • 1 x Multi-functional adapter
  • 1 x 9V battery (installed)
  • 1 x User manual

Best Online Shopping website for UNI-T Handheld Pocket Size Digital Multimeter UT61A Best Budget Avo Meter DC AC Voltage Current Resistance Meter Tester Voltmeter Ammeter Ohmmeter Tester UT-61A in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.
