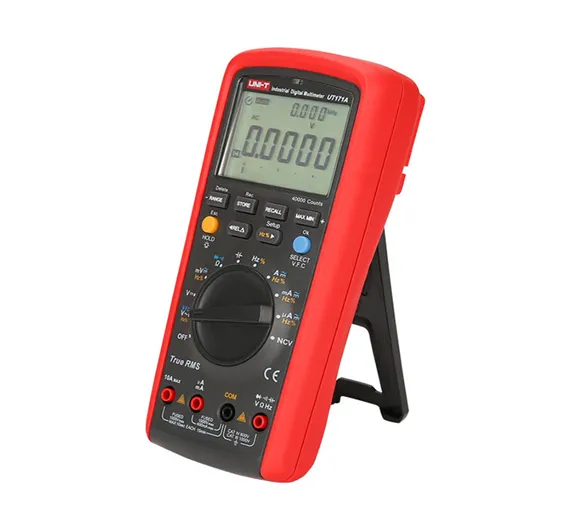

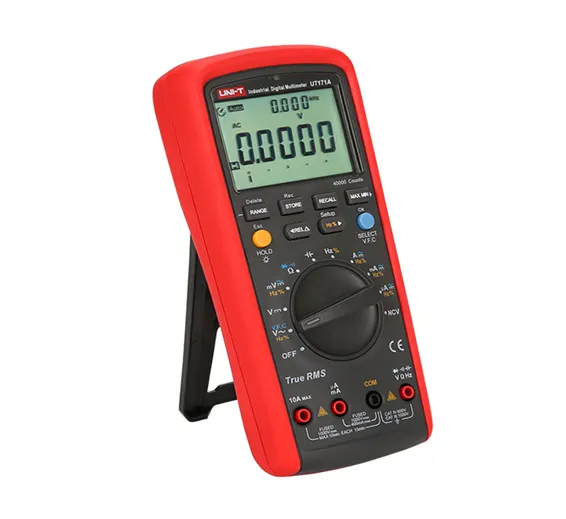

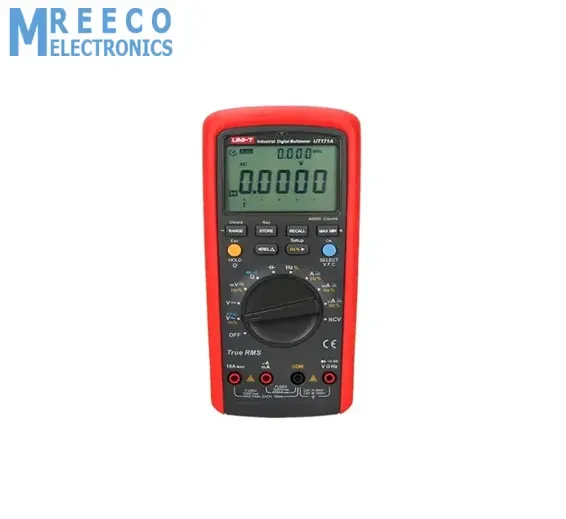

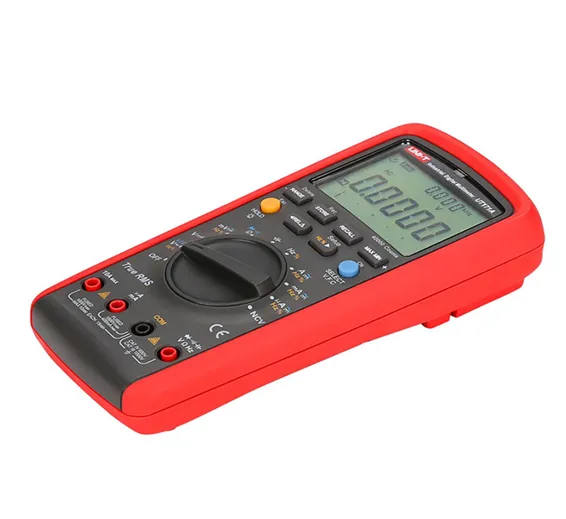

UNI-T Industrial True RMS Digital Multimeter UT171A

UNI-T UT171A multimeter is an industrial-grade multimeter used by professionals. The UT-171A electronics RMS multimeter, Its built-in square wave output is useful for troubleshooting industrial control signals. UT 171 A true RMS meter, its LoZ (ACV) feature can be used to identify residual (ghost) voltage in large capacitors. This digital meter is with smart design and fast working features.

Features Of UNI-T Best RMS True Multimeter UT 171A:

• Variable square wave signal output (frequency 0.5Hz ~4800Hz, low impedance) & 40000 / 60000 Counts / True RMS;
• Measurement speed (5 times /s) is two times faster than the others & AC LoZ Voltage test;
• AC / DC uA / mA / A current test & AC+DC measurement mode;
• Resistance, electrical conductivity nS measurement & VFC household / industrial frequency conversion voltage test;
• Electronic storage record 1000 & CAT III 1000V / CAT IV600V.

Specification Of DC/AC V/A Ohm/Hz Capacitance Tester UT-171A:

1. DC Voltage: 400mV/4V/40V/400V/1000V
2. DC Voltage Accuracy: ±(0.025%+5)
3. AC Voltage: 400mV/4V/40V/400V/1000V
4. AC Voltage: Accuracy: ±(0.4%+40)
5. DC Current: 400μA/4000μA/40mA/400mA/4A/10A
6. DC Current Accuracy: ±(0.15%+10)
7. AC Current: 400μA/4000μA/40mA/400mA/4A/10A
8. AC Current Accuracy: ±(0.75%+20)
9. Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
10. Resistance Accuracy: ±(0.05%+2)
11. Capacitance: 4nF/40nF/400nF/4μF/40μF/400μF/4mF/40mF
12. Capacitance Accuracy: ±(2.5%+40)
13. Frequency: 10Hz~10MHz
14. Frequency Accuracy: ±(0.01%+5)
15. Display Count: 40000
16. Auto/Manual Range: Yes
17. True RMS: Yes
18. Bandwidth: 100kHz
19. VFC: Yes
20. Diode test: Yes
21. Continuity Buzzer: Yes
22. Duty Cycle: Yes
23. NCV: Yes
24. Data Hold/MAX/MIN: Yes
25. Relative Mode: Yes
26. Data Storage: 1000
27. USB Interface: Yes
28. LCD Display: Yes
29. LCD Backlight: Yes
30. Analogue Bar Graph: 31
31. Mis-plug Alarm: Yes
32. Low Battery Indication: Yes
33. Auto Power Off: Yes
34. Input Protection: Yes
35. Input Impedance for DCV: Around 10MΩ
36. Power: 6x 1,5V AAA
37. LCD Size: 70,6x49,5mm
38. Weight: 384g
39. Size: 206x95x55mm

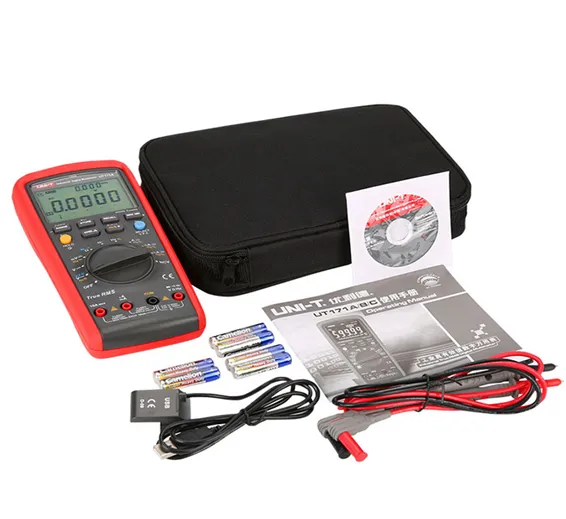

Package includes:

• 1 x UNI-T UT171A Professional Intelligent Digital Multimeter
• 2 x Test Leads
• 1 x Point contact temperature probe
• 1 x USB interface cable
• 1 x PC software CD
• Batteries
