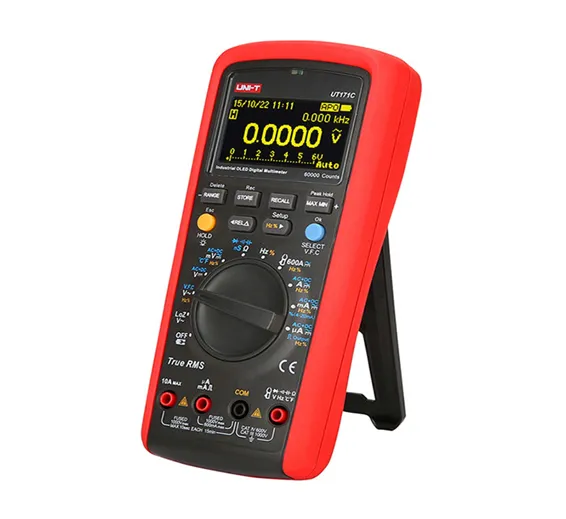

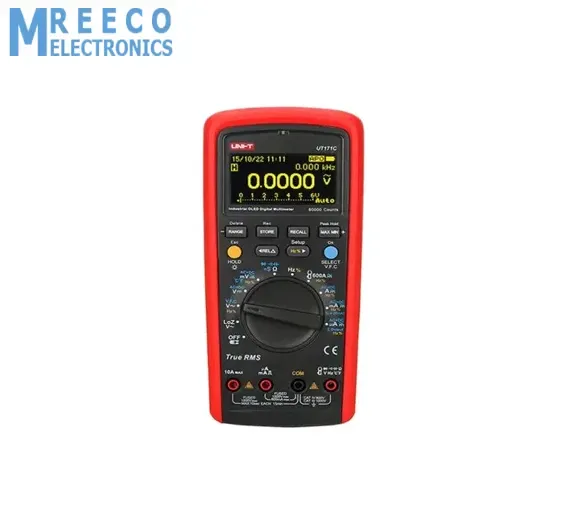

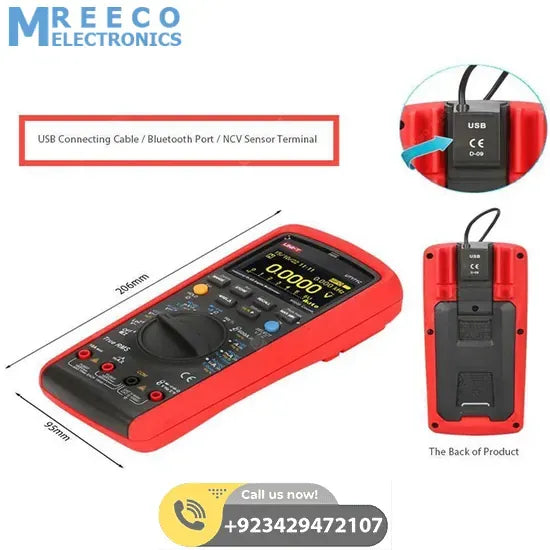

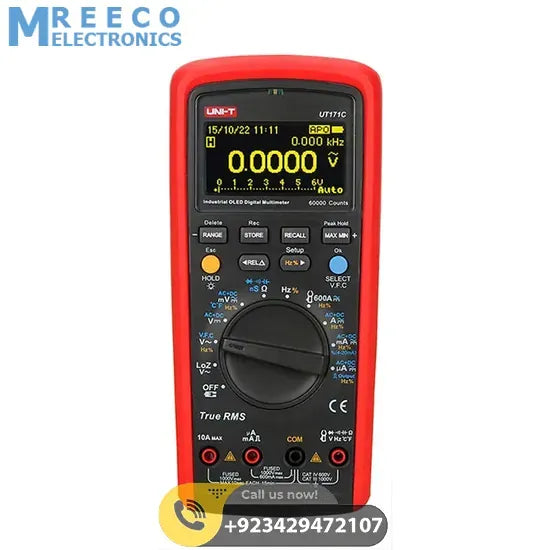

UNI T UT171C Industrial True RMS Digital Multimeter

Condition: New
Availability: In Stock
Advance Payment Only
Share:     Faceook Twitter

SKU: TMD1,Th6,KRT

Ask Price

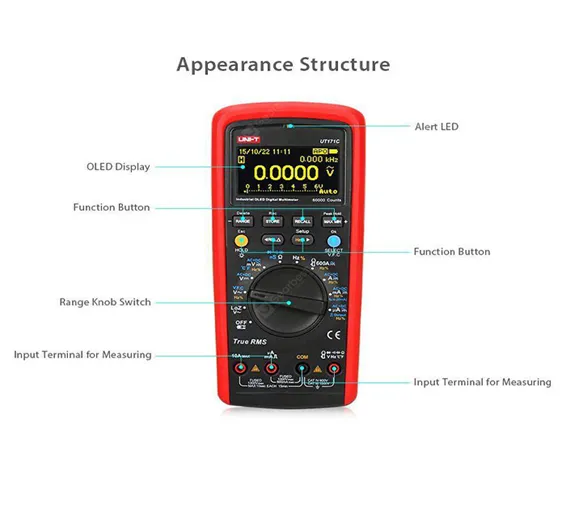

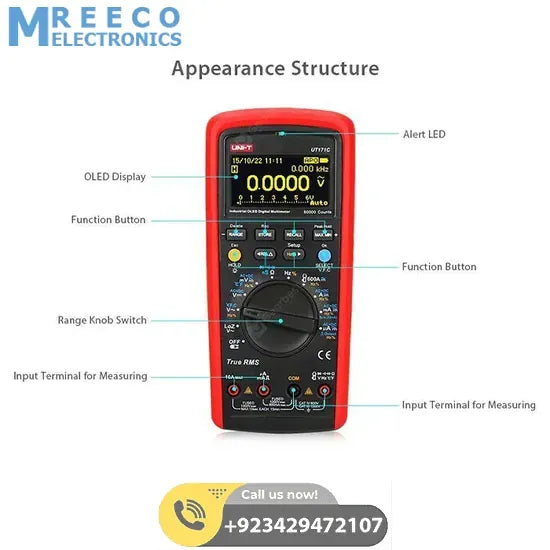

UNI-T UT171C series are industrial grade multimeters used by professionals. UT171C best digital multimeter has built-in square wave output is useful for troubleshooting industrial control signals. UT171C multimeter tester, its LoZ (ACV) feature can be used to identify residual (ghost) voltage in large capacitors. This electrical multimeter ’s OLED display is perfect for working in low temperatures down to -30°C. Resolution ratio is higher and clearer. This electric device can be applied to severe environments.

Features Of UNI-T UT171C Industrial RMS Digital Multimeter:

  • Functions: measuring AC / DC current, AC / DC voltage, resistance, circuit on-off, conductivity, diode, capacitance, frequency, induced voltage, 4 - 20mA loopback test, temperature, etc.
  • True RMS OLED display: maximum display up to 60000 counts.
  • Overload protection voltage between input terminal and grounding is 1000V.
  • Auto shutdown and auto range function, power save and convenient.

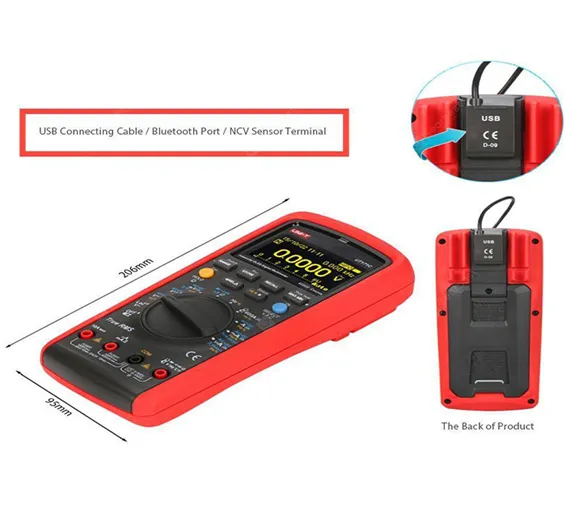

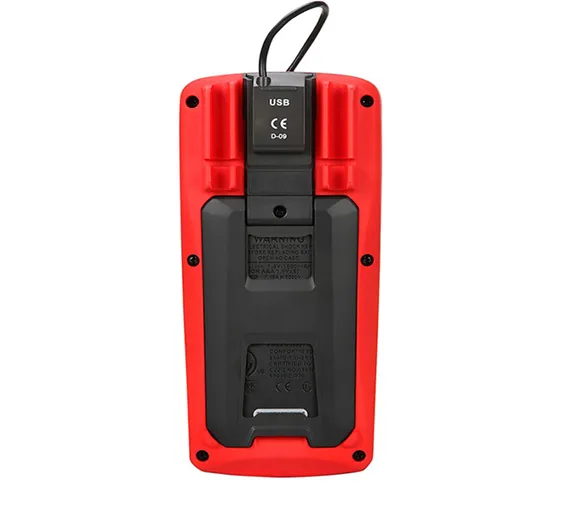

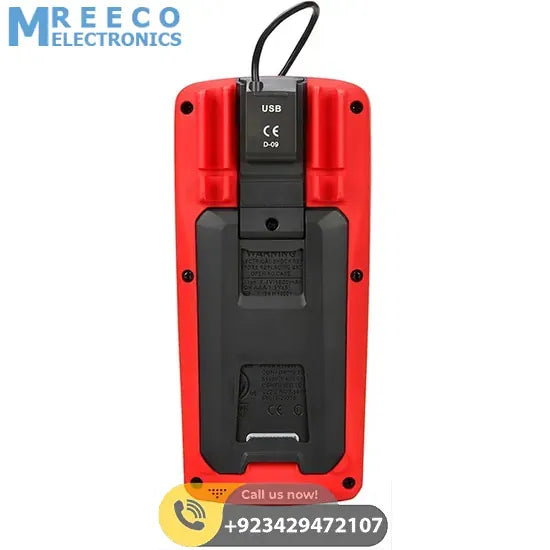

  • With data-storage, misoperation alarm function and USB / Bluetooth interface configuration.
  • Operation altitude: 0 - 2000m.
  • For users in design, research and repair needs.
  • Built-in lithium-ion battery.

Specifications Of UNI-T UT171C Admittance Resistance Tester DMM:

  1. DC voltage (V): 1000V
  2. DC voltage (V) Accuracy: ±(0.025%+5)
  3. AC voltage (V): 1000V
  4. AC voltage (V) Accuracy: ±(0.4%+40)
  5. DC current (A): 10A
  6. DC current (A) Accuracy: ±(0.15%+2)
  7. AC current (A): 10A
  8. AC current (A) Accuracy: ±(0.75%+5)
  9. Resistance (Ω): 60MΩ
  10. Resistance (Ω) Accuracy: ±(0.05%+2)
  11. Admittance (nS): 60nS
  12. Admittance (nS) Accuracy: ±(1%+10)
  13. Capacitance (F): 60mF
  14. Capacitance (F) Accuracy: ±(2.5%+40)
  15. Frequency (Hz): 10Hz~10MHz
  16. Frequency (Hz) Accuracy: ±(0.01%+5)
  17. Temperature (°C): -40°C~1000°C
  18. Temperature (°C) Accuracy: ±(1%+30)
  19. Temperature (°F): -40°F~1832°F
  20. Temperature (°F) Accuracy: ±(1.5%+50)
  21. Display count: 60000
  22. Auto/Manual range: Yes
  23. Bandwidth (Hz): 100kHz
  24. 4~20mA loop: 0~100%
  25. LoZ (ACV): Around 3kΩ
  26. Diode: Around 3V
  27. Continuity buzzer: Yes
  28. Duty cycle: 0.1%~99.9%
  29. NCV/Data hold/MAX/MIN: Yes
  30. Relative mode: Yes
  31. Data storage: 9999
  32. Display Type: OLED
  33. Analog bar graph: 31
  34. LCD backlight: Yes
  35. Mis-plug alarm: Yes
  36. Low battery indication: Yes
  37. Auto power off: Yes
  38. Input protection: Yes
  39. Input impedance for DCV: Yes
  40. Input impedance for DCV: Around 1GΩ
  41. Power: 7.4V 2000mAh Li-ion battery
  42. Display: 70.6mm x 35.3mm
  43. Product colour: Red and grey
  44. Product net weight: 384g
  45. Product size: 206mm x 95mm x 55mm

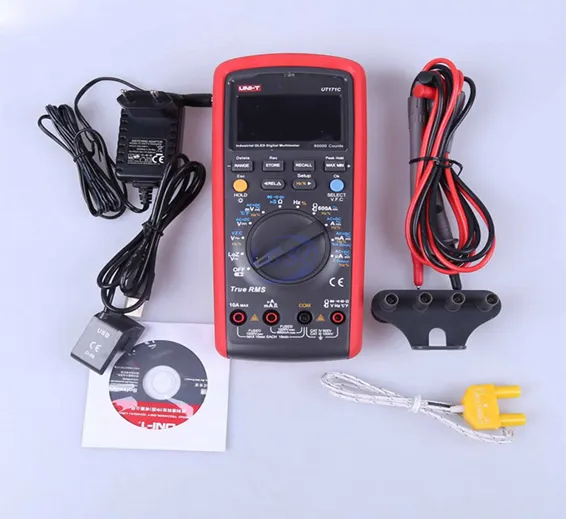

Package includes:

  • 1 x UNI T Industrial True RMS Digital Multimeter UT171C
  • 1 x Point K-type Thermocouple
  • 1 x Pair of Probes
  • 1 x Charging Auxiliary Stand
  • 1 x USB Cable
  • 1 x Battery Charger
  • 1 x CD
  • 1 x Carry Bag
