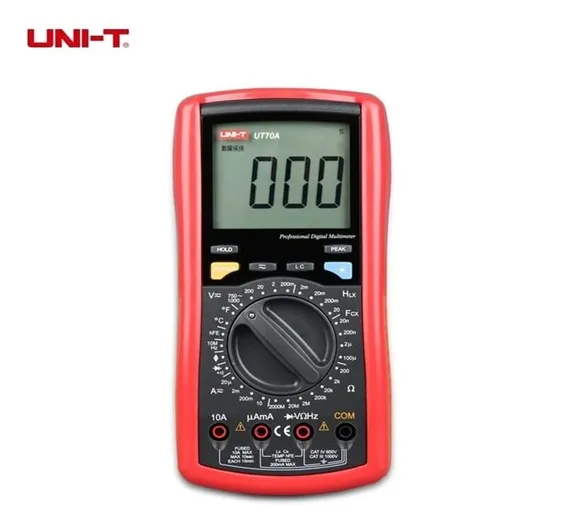

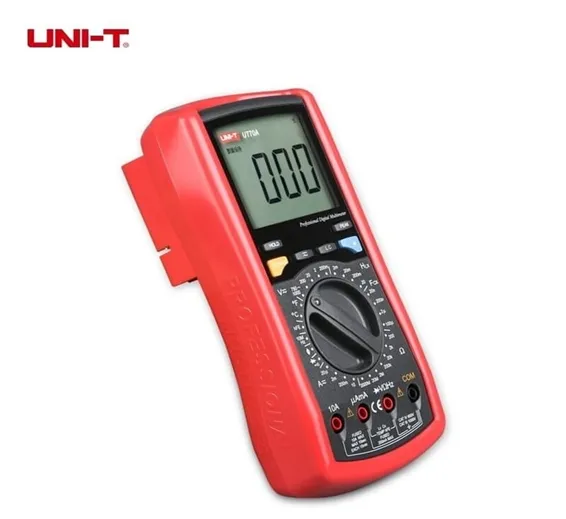

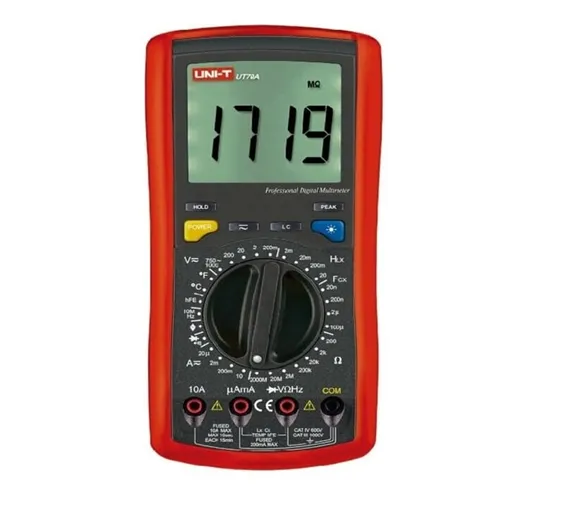

UNI T Multi Purpose Digital Multimeter UT70A

The UNI-T UT70A meter is a handheld digital multimeter with advanced design. The UT-70A professional multimeter has multiple functions, large display screen and reliable performance, at a much lower price than you would expect to pay for a multimeter of this quality. This pocket multimeter is able to measure voltage & current (AC & DC),

Features Of Uni-t UT-70A Modern Digital Multi-purpose Multimeter:

• Functions:
• • AC/DC current and voltage
  • resistance
  • capacitance
  • frequency
  • inductance
  • temperature (ºC or ºF)
  • continuity test (with buzzer)
  • diode test
  • transistor test
  • TTL logic test
• Manual ranging
• Fused 10A range
• Data Hold function
• Peak Hold function
• Auto power off
• Sleep mode
• Low battery indication

Specifications Of Digital multimeter UNI-T UT70A:

1. DC Voltage: 200mV / 2V / 20V / 200V / 1000V
2. DC voltage accuracy: +/- (0.5%+1)
3. AC Voltage: 200mV / 2V / 20V / 200V / 750V
4. AC voltage accuracy: +/- (0.8%+3)
5. DC Current: 20µA / 2mA / 200mA / 10A
6. DC current accuracy: +/- (0.8%+1)
7. AC Current: 20µA / 2mA / 200mA / 10A
8. AC current accuracy: +/- (1%+3)
9. Resistance: 200 Ohm / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 20 MOhm / 2000 MOhm
10. Resistance accuracy: +/- (0.8%+1)
11. Capacitance: 20nF / 200nF / 2uF / 100uF
12. Capacitance accuracy: +/- (2.5%+5)
13. Frequency: 2kHz - 10MHz (auto)
14. Frequency accuracy: +/- (0.1%+3)
15. Inductance: 2mH / 20mH / 200mH / 20H
16. Inductance accuracy: +/- (2%+10)
17. Temperature: from -40 to +1000°C, from -40 to +1832°F
18. Temperature accuracy: +/-1%+3 (°C), +/-1%+4 (°F)
19. TTL Logic Test: (High > 2.0V, Low < 0.8V)
20. Power: 9V bat.
21. Product size: 195 x 90 x 40mm
22. Product weight: 620g

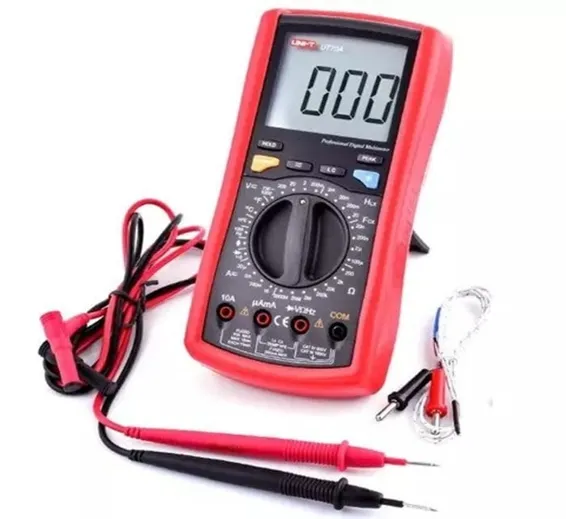

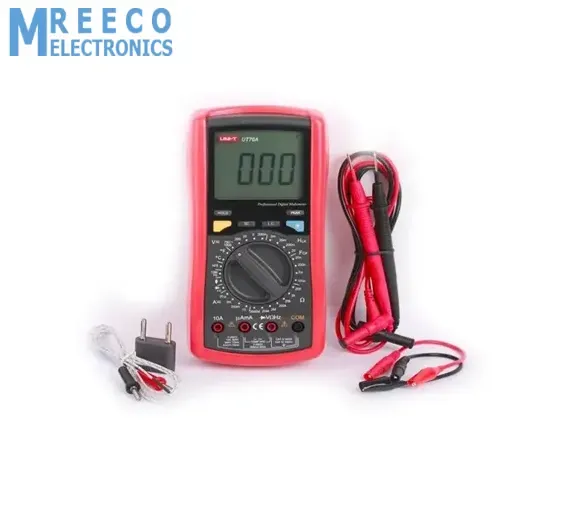

Package includes:

• 1 x UNI T Multi-Purpose Digital Multimeter UT70A
• 2 x Test leads
• 2 x Test clips
• 1 x Point Contact Temperature Probe
• 1 x Multi-Purpose Socket
• 1 x user manual
