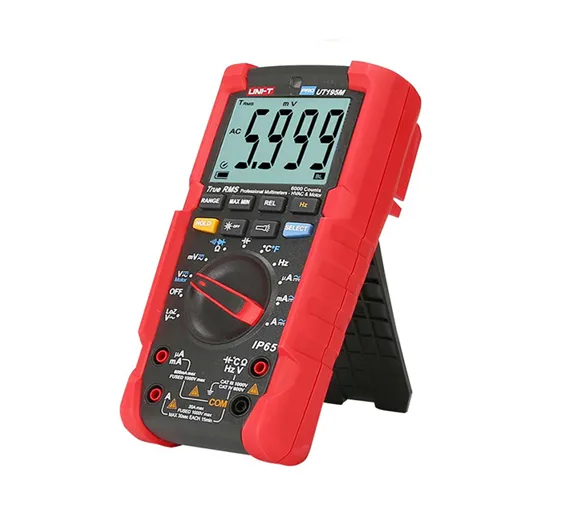

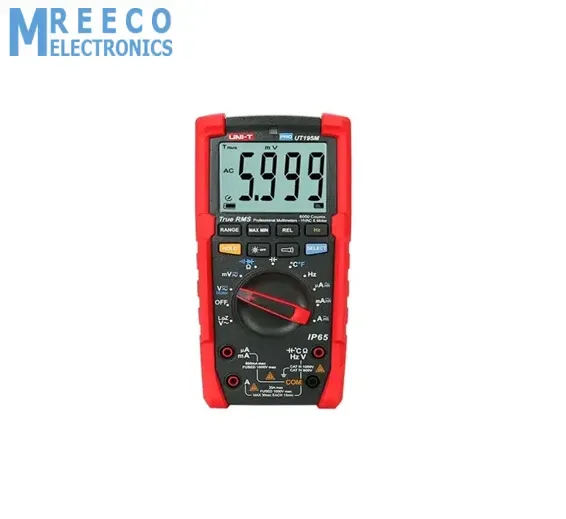

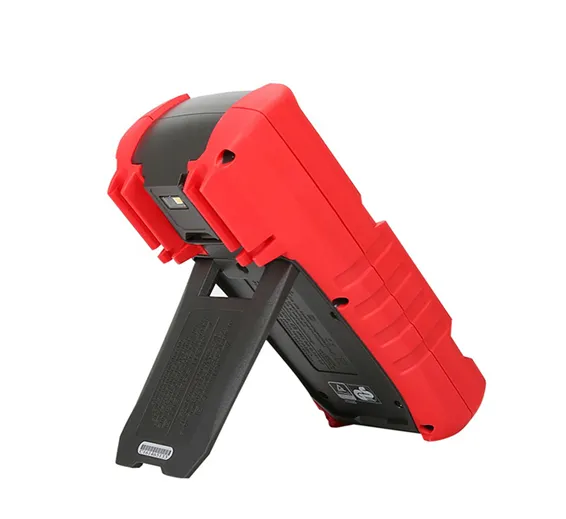

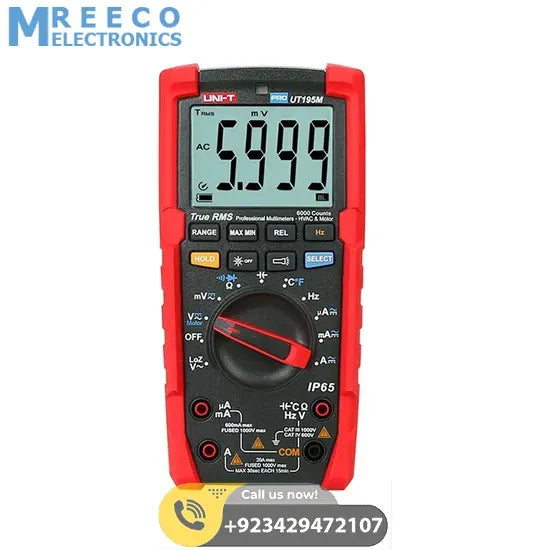

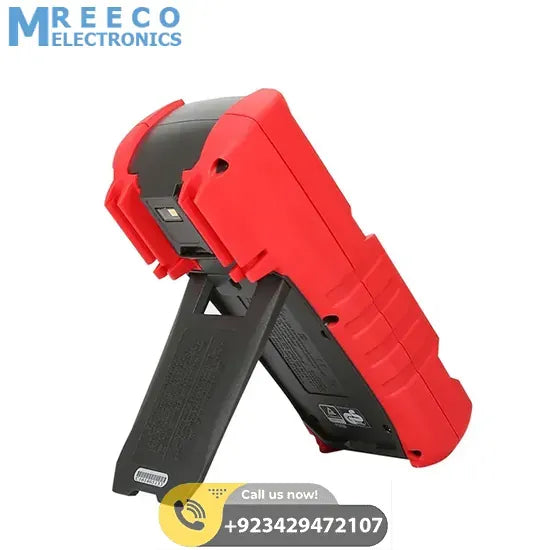

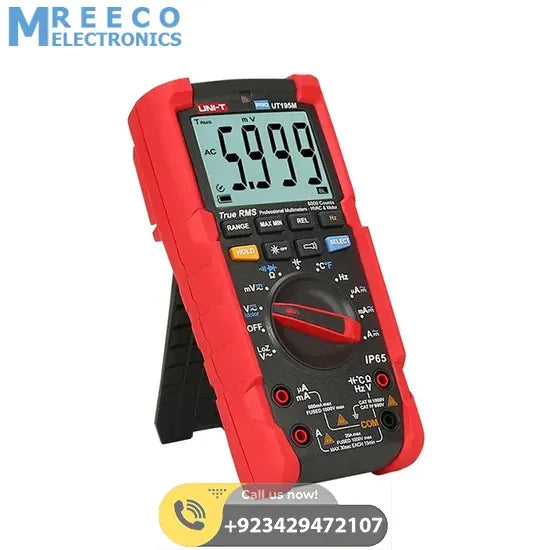

UNI T True RMS Digital Multimeter UT195M

UT195 series are handheld industrial digital multimeters with IP65 and 2m drop-proof. Compare with traditional multimeters, UT-195M electric multimeter troubleshooting capability, resolution and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair etc. This UT 195 M best uni-t multimeter is exquisitely designed and easy to operate.

Features Of UT195M Professional Multimeter:

• IP65 rating, 2m drop-proof, CAT III 1000V, CAT IV 600V
• Large 6000-count LCD screen
• True RMS
• ACV 750V 5kHz bandwidth
• Flashlight
• Auto LCD backlight controlled by the light sensor (feature can be turned off)
• LoZ voltage test, for ghost voltage measurement
• Motor phase sequence measurement with 2 probes
• 20A current measurement (max 30 seconds)

Specifications Of UT 195M Digital multimeter For Industrial Use:

1. Manufacturer: UNI-T
2. Type of meter: Digital multimeter
3. Measurement: AC voltage, capacitance, DC current, DC voltage, frequency, resistance, temperature
4. Kind of display used: LCD (6000), with a backlit
5. DC voltage measuring range: 600m/6/60/600/1000V
6. DC voltage measuring accuracy: ±(0,5% + 3 digits)
7. AC voltage measuring range: 600m/6/60/600/750V
8. AC voltage measuring accuracy: ±(0,7% + 3 digits)
9. DC current measuring range: 600µ/6000µ/60m/600m/6/20A
10. DC current measuring accuracy: ±(0,8% + 3 digits)
11. AC current measuring range: 600µ/6000µ/60m/600m/6/20A
12. AC current measuring accuracy: ±(1% + 3 digits)
True effective value measurement:
13. True RMS
14. Resistance measuring range: 600/6k/60k/600k/6M/60MΩ
15. Resistance measuring accuracy: ±(0,8% + 2 digits)
16. Capacitance measuring range: 6n/60n/600µ/6m/60mF
17. Capacitance measuring accuracy: ±(3% + 5 digits)
18. Frequency measuring range: 600...40MHz
19. Frequency measuring accuracy : ±(0,1% + 4 digits)
20. Temperature measuring range: -40...1000°C
21. Diode test: Yes
22. Continuity test: Acoustic indication
23. Operating temperature: 0...40°C
24. IP rating: IP65
25. Overall dimensions (W x D x H): 95x58x195mm
26. Weight with battery: 473g
27. Power supply: 1 battery 9V 6F22
28. Conform to the norm: EN61010 1000V CAT III, EN61010 600V CAT IV
29. Resistance to: fall from 2m height

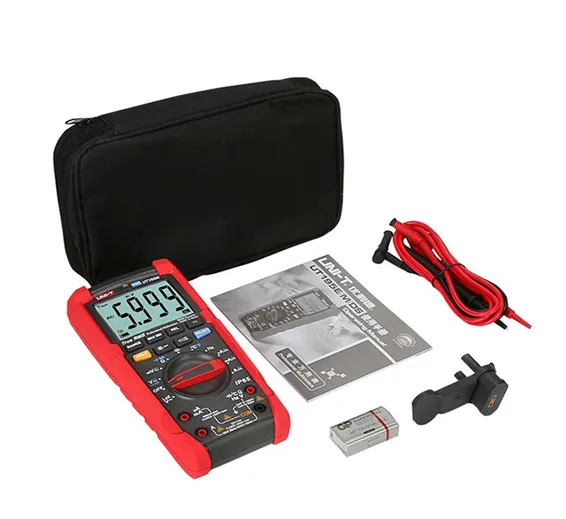

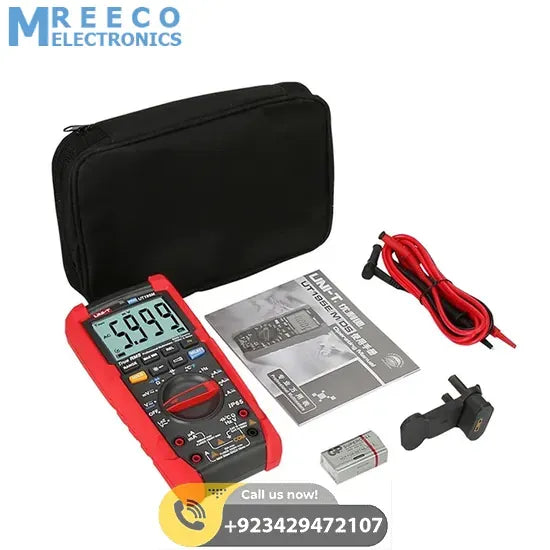

Package Includes:

• 1 x UT195M Professional Multimeter
• 2 x Test probes
• 1 x Drop-like K-type temperature probe
• 1 x Battery
• 1 x Case
