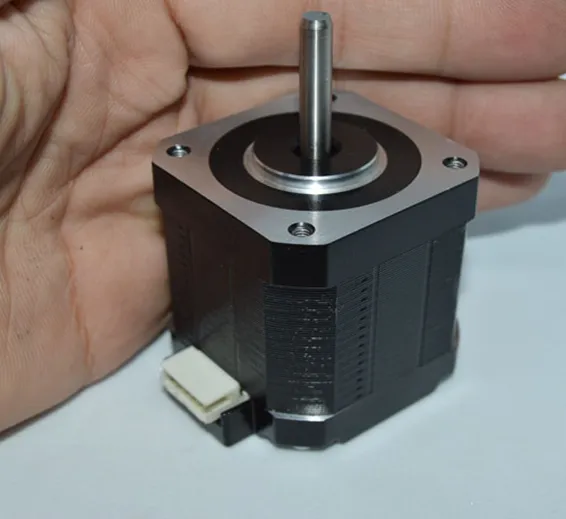

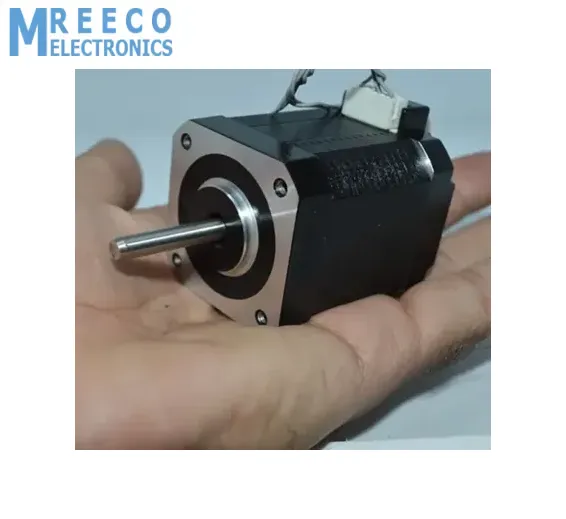

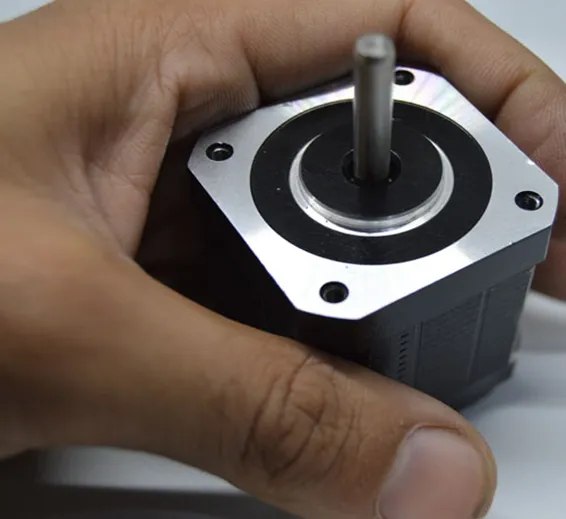

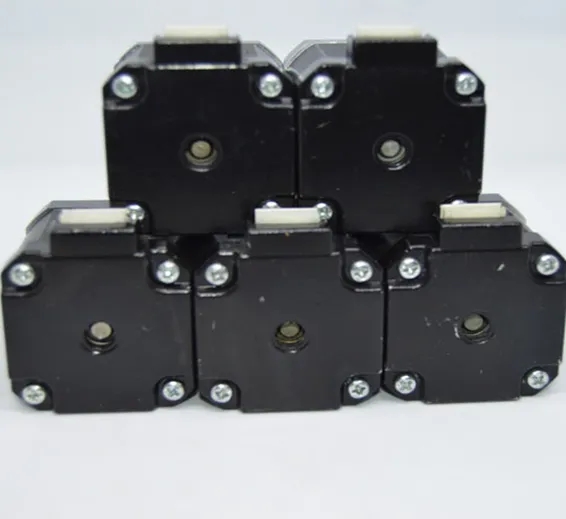

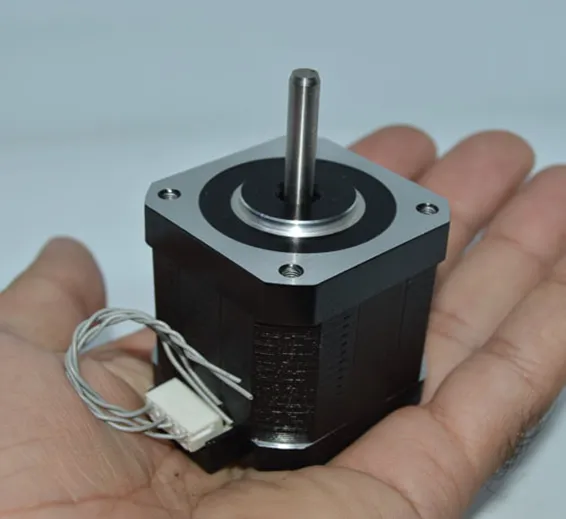

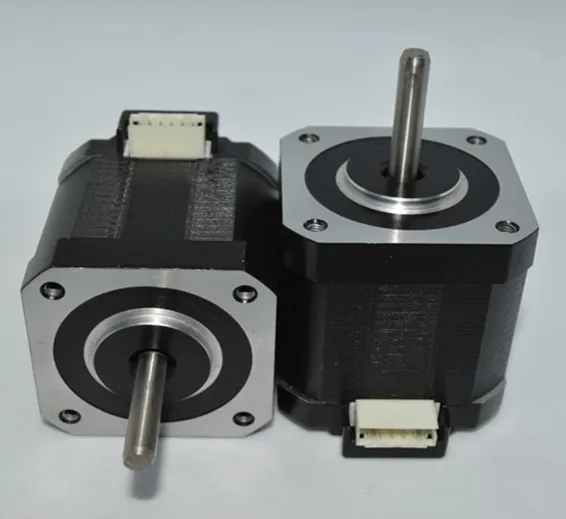

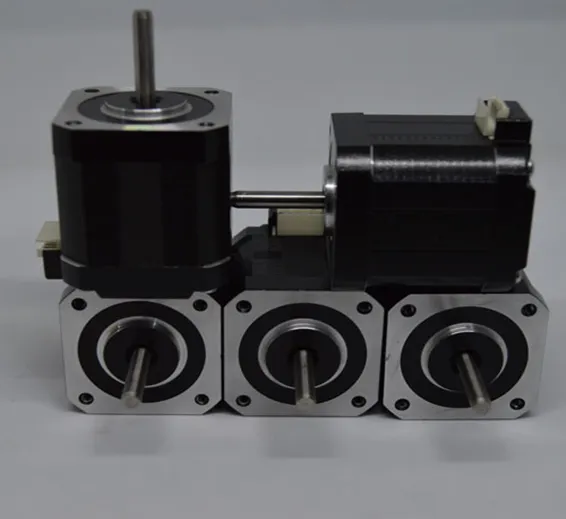

USED NEMA 17 4.2 kg-cm Stepper Motor For CNC And 3D Printer

This high-quality NEMA 17 stepper motor is a cheap and low-cost motor available in Pakistan with a standard fitting for 3d printers with high torque to maintain the accuracy of the CNC or 3d printer. These NEMA 17 stepper motors are the motors of choice for the machines requiring precise position control. The Nema17 4.2 kg-cm Stepper motor can provide 4.2 kg-cm of torque at 1.7A current per phase.

The motor’s position can be commanded to move or hold in one position with the help of Stepper Motor Drivers. The Nema17 4.2 kg-cm Stepper motor provides excellent response to starting, stopping, and reversing pulses from the stepper motor driver.

They are very useful in various applications, especially which demands low speed with high precision. Many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters, etc.

It is a brushless DC motor, so the life of this motor is dependent upon the life of the bearings. The position control is achieved by a simple Open Loop control mechanism so it doesn’t require complex electronic control circuitry.

The motor’s shaft has been machined for good grip with a pulley, drive gear, etc., and especially avoiding stall or slip.

We are engaged in supplying and wholesaling a quality approved collection of

Stepper Motors

Stepper Motors

Note :

1. The Nema17 4.2 kg-cm Stepper motor dimensions and weight may have a ±2% error.
2. Resonances can occur because of improper mounting.
3. Not easy to operate at extremely high speeds.

Features :

1. The input pulse decides the rotation angle of the motor.
2. It provides good starting, stopping, and reversing.
3. Control of this motor is less costly because of the exclusion of complex control circuitry.
4. The speed is proportional to the frequency of the input pulses.

Specifications:

1. Step Angle 1.8°
2. Holding Torque (Kg-Cm) 4.2
3. Operating Voltage (VDC) 12 ~ 24
4. Supply Current (A) 1.7 A /Phase.
5. No. of Leads 4
6. Frame Size (mm) 42 x 42
7. Dimensions (mm) LxWxH 42x42x47
8. Shaft Type Round
9. Shaft Length (mm) 22
10. Shaft Diameter (mm) 5
11. Weight (gm) 288
12. Cable Length (mm) 30
13. Shipment Weight 0.360 kg

Package Includes :

1 x USED NEMA 17 4.2 kg-cm stepper motor.
