SKU: 637718971570122468

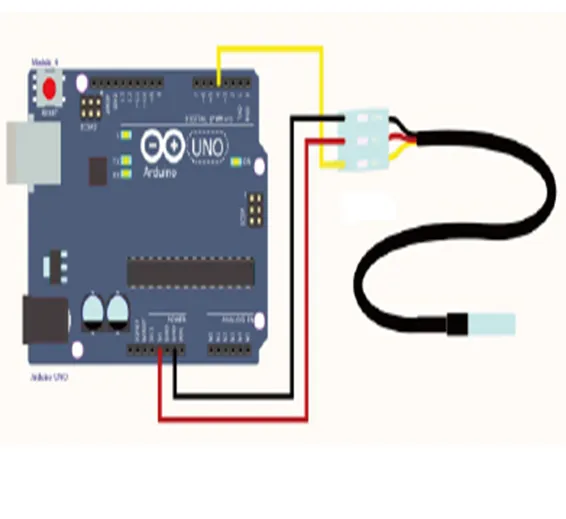

Waterproof DS18B20 Temperature Sensor is 1 meter long, sealed and pre-wired Waterproof DS18B20 temperature sensor probe based on the DS18B20 sensor. It is very handy for when you need to measure something far away, or in wet conditions. Because they are digital, you don’t get any signal degradation even over a long distance. These 1-wire Waterproof DS18B20 Temperature Sensors are fairly precise (±0.5°C over much of the range) and can give up to 12 bits of precision from the onboard digital-to-analogue converter. They work great with any microcontroller using a single digital pin, and you can even connect multiple ones to the same pin, each one has a unique 64-bit ID burned in at the factory to differentiate them. Usable with 3.0-5.0V systems. The only downside is they use the Dallas 1-Wire protocol, which is somewhat complex and requires a bunch of code to parse out the communication. When using with microcontroller put a 4.7k resistor to sensing pin, which is required as a pullup from the DATA to VCC line.

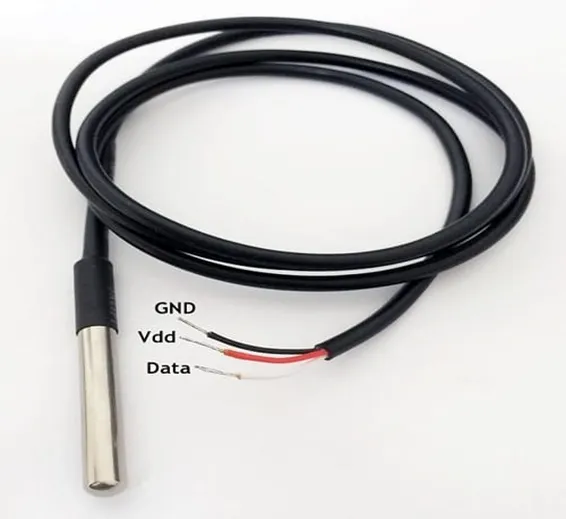

Wired connection: Red: VCC/VDD, Yellow/White: DATA, Black: GND
Features of Waterproof DS18B20 Temperature Sensor:
- A probe by new original installation import DS18B20 temperature sensor chip.
- Chip each pin use heat-shrinkable tube to prevent short circuit, internal sealing glue, waterproof, moistureproof.
- Stainless steel tube encapsulation waterproof moistureproof prevent rust.

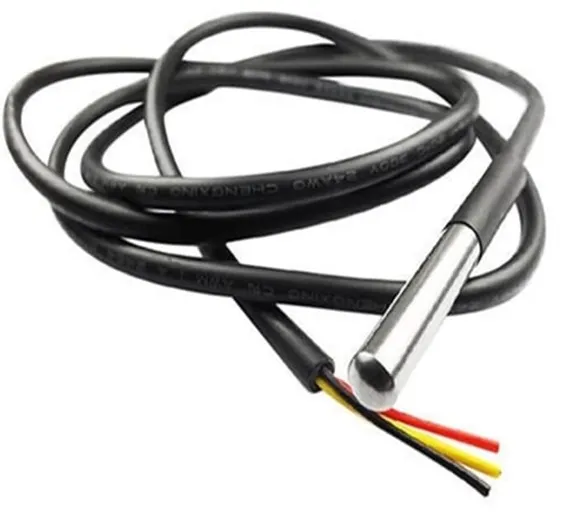

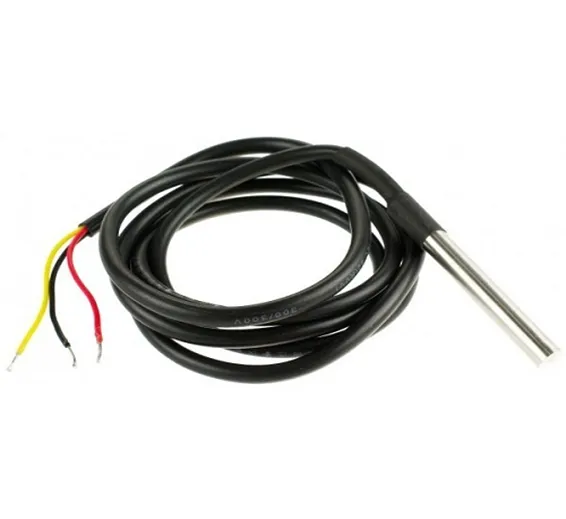

- Stainless steel shell (6 * 45 mm), lead length 100 cm (shielding wire) use stability;
- 3.0 V-5.5 V power supply;
- Temperature range wide:-55 ℃ ~ + 125 ℃;
- Without the external components, the unique single bus;
- Cable specifications:
- Stainless steel tube 6mm diameter by 30mm long

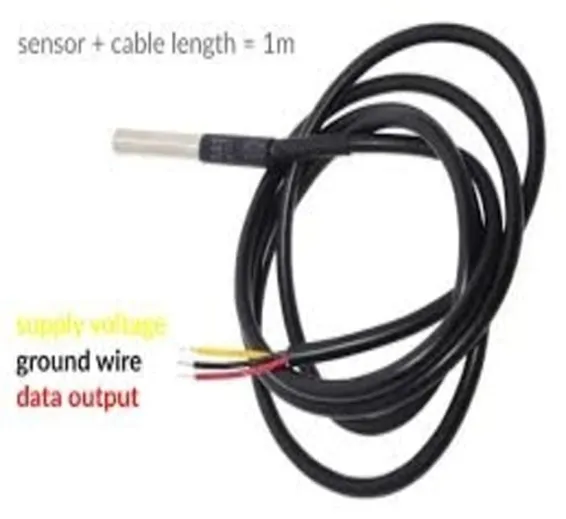

- Cable is 36″ long / 91cm, 4mm diameter (1 Meter Long)
- Contains DS18B20 temperature sensor
- Three wires – Red connects to 3-5V, Black connects to ground and White is data.
- DS18B20 Sensor
Specifications of Waterproof DS18B20 Temperature Sensor:
- Usable temperature range: -55 to 125°C (-67°F to +257°F)
- 9 to 12-bit selectable resolution
- Uses 1-Wire interface- requires only one digital pin for communication
- Unique 64 bit ID burned into the chip
- Multiple sensors can share one pin
- ±0.5°C Accuracy from -10°C to +85°C
- Temperature-limit alarm system
- Query time is less than 750ms
- Usable with 3.0V to 5.5V power/data
Package Includes :
1 x Waterproof DS18B20 Temperature Sensor
