SKU: 637720634544452024

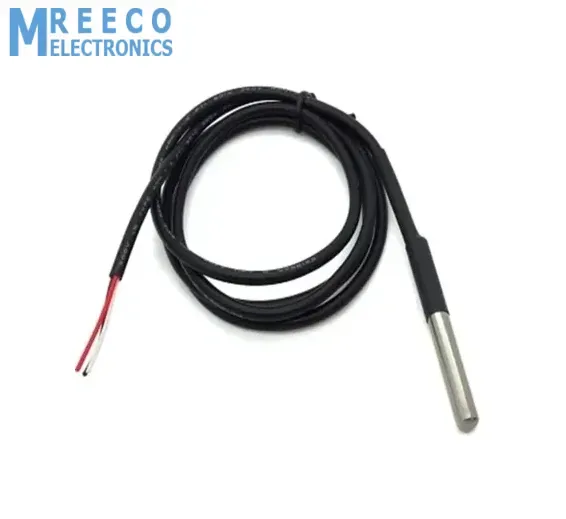

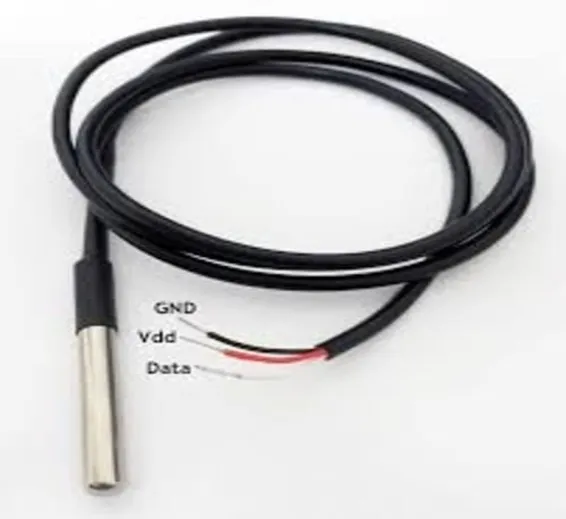

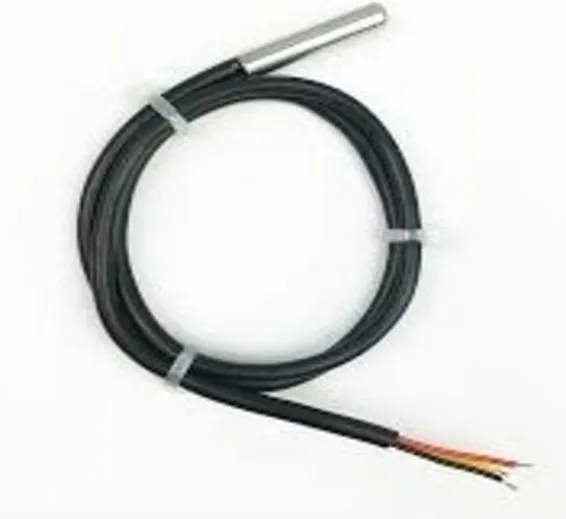

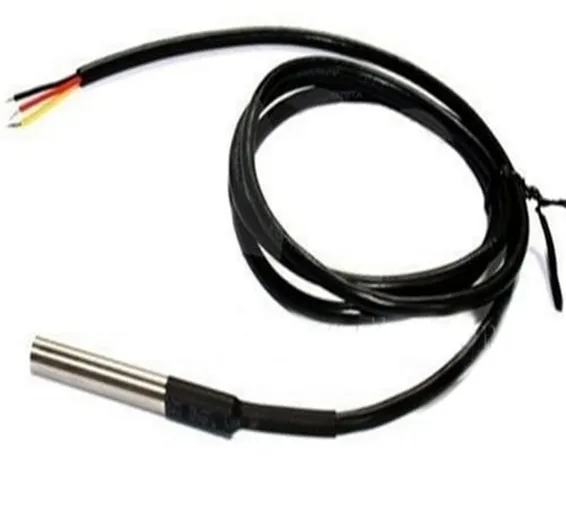

This is Waterproof LM35 Temperature Sensor. Lm35 is precision integrated-circuit temperature sensors whose output voltage is linearly proportional to the Celsius (Centigrade) temperature. The Waterproof LM35 Temperature Sensor thus has an advantage over linear temperature sensors calibrated in ° Kelvin, as the user is not required to subtract a large constant voltage from its output to obtain convenient Centigrade scaling. The LM35 Temperature Sensor does not require any external calibration or trimming to provide typical accuracies of ±1⁄4°C at room temperature and ±3⁄4°C over a full −55 to +150°C temperature range. Low cost is assured by trimming and calibration at the wafer level. The LM35’s low output impedance, a linear output, and precise inherent calibration make interfacing to readout or control circuitry especially easy. It can be used with single power supplies, or with plus and minus supplies. As it draws only 60 μA from its supply, it has very low self-heating, less than 0.1°C in still air. The LM35 is rated to operate over a −55° to +150°C temperature range, while the LM35C is rated for a −40° to +110°C range (−10° with improved accuracy).
Features & Specifications of Waterproof LM35 Temperature Sensor:
- Wire Length 1 meter
- Calibrated Directly in ° Celsius (Centigrade)
- Linear + 10 mV/°C Scale Factor
- 0.5°C Ensured Accuracy (at +25°C)
- Rated for Full −55°C to +150°C Range
- Suitable for Remote Applications
- Low Cost Due to Wafer-Level Trimming
- Nonlinearity Only ±¼°C Typical
- Operates from 4 to 30 V
- Less than 60-mA Current Drain
- Low Self-Heating, 0.08?C in Still Air
- Low Impedance Output, 0.1 ? for 1 mA load
Package includes:
1x Waterproof LM35 Temperature Sensor
