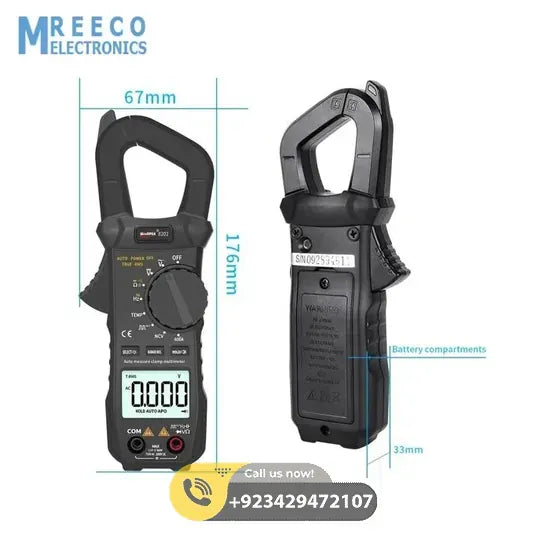

WinAPEX 8202 ET8202 Pocket 6000 Counts True RMS Clamp Meter AC Voltage and Current Digital Multimeter Automatic Digital Meter With Square Wave Output

WinAPEX 8202 Pocket 6000 Counts True RMS Clamp Meter Overview:

1. This is a pocket-sized 3 5/6-digit automatic digital meter.
2. It has stable performance, high precision, high reliability, clear reading and overload protection.
3. Driven by AAA 1.5V battery, the instrument adopts large screen LCD display and adopts boost power supply.
4. Even at the edge of 2.3V low battery, it can ensure the high brightness of backlight and flashlight.
5. The meter is easy to carry and is very popular among users.
6. The instrument’s backlight can be turned on and off automatically after 15 seconds.
7. This series of instruments can be used to measure AC/DC voltage, AC current 600A, resistance, capacitance, diode, temperature, continuity test, square wave output, frequency measurement and true RMS.
8. It is a superior tool and an ideal tool for laboratories, factories, radio enthusiasts and families.

WinAPEX 8202 Pocket 6000 Counts True RMS Clamp Meter Features:

• DC voltage  DCV     √
• AC voltage  ACV     √
• AC current  ACA      √
• Resistor / Diode / On-Off Test / Capacitor     √
• Frequency F     √
• Square wave output     √
• NCV     √
• Full unit symbol     √
• Backlight manual/Auto off     √
• True RMS measurement     √
• Temperature(℃/℉)     √
• Flashlight lighting     √

WinAPEX 8202 Pocket 6000 Counts True RMS Clamp Meter Specifications:

1. DC voltage (DCV)     0.01V - 600V
2. AC voltage(ACV)       0.01V - 750V
3. AC current(AC A)      60A - 600A
4. Resistance (Ω)          0.1R - 40MR
5. Diode and continuity test
6. Diode forward voltage drop
7. Forward DC current is about 1mA, open circuit voltage is about 3V
8. The buzzer sounds long and the resistance of the test is less than (50±20) Ω.
9. Open circuit voltage is about 3V, press “SELECT” for two-speed function switching
10. Capacitance(C)
11. Frequency measurement
12. Temperature measurement ( °C/°F)

Package Includes:

• 1 x WinAPEX 8202 Clamp Meter(battery not included)
• 1 x Test Leads
• 1 x Temperature Probe
• 1 x English User Manual

• SKU: ET 8202
• /
• Category: Meters
• /
• Tags: WinAPEX 8202 Pocket 6000 Counts True RMS Clamp Meter
