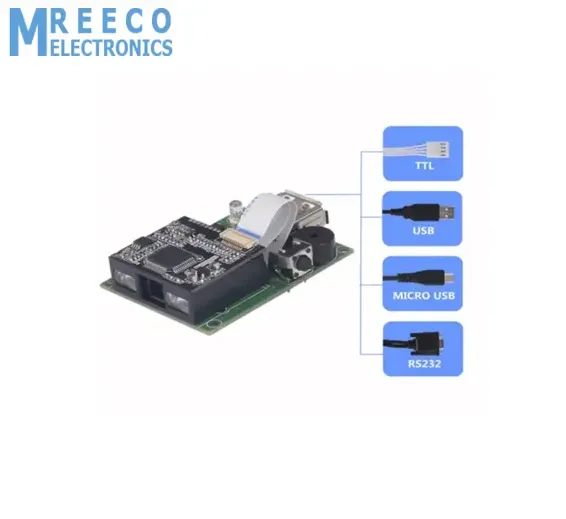

Wired CCD Barcode Scanner Module
Lights

Wired CCD Barcode Scanner Module

(1 customer reviews)
Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: 637736375783289871

Rs.3500 Rs. 4375
Quantity
Add to Cart
Overview of

Wired

CCD

Barcode Scanner Module

:

  • Super scanning and decoding ability, can read incomplete and fuzzy codes
    • .
  • Small size, Easy to integrate, high-standard automation and can be embedded into a End devices, especially for limit space application
    • .
  • Application fields: Supermarket,Retail,Healthcare,Logistics,Communication,Clothing industry, Power Industry, Kiosk,Locker, Factory assembly line
    • .

    Specifications of

    Wired

    CCD

    Barcode Scanner Module

    :

    Product Specification

    Wired

    CCD

    Barcode Scanner Module

    CPU

    ARM 32-bit Cortex

    Optical Source

    620nm Visible red light diode

    Resolution

    Ratio

    2500 pixel

    Imaging Sensor

    CCD

    Trigger Mode

    Continuous,Auto-Induction

    Indication

    Buzzer & LED

    Infrared induction distance

    150 - 200mm

    Decoding Speed

    280times/second

    Interface

    Micro USB,TTL,KB,RS232,USB

    Resolution

    4mil

    Decoding Capability

    Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E, Codabar,

    Interleaved 2 of 5,ISBN, Code 93, UCC/EAN-128, GS1 Databar etc

    Max.Power

    700mw

    Working Voltage

    DC5V

    Storage Temperature

    -40°C ~ 60°C

    Working Temperature

    0°C ~ 50°C

    Relative Humidity

    0 ~ 95%

    Weight

    5g (scanner without cable and development board)

    12g(scanner without cable and with development board)

    Dimensions

    24*22*9 mm (scanner with cable and development board)

    44*33*10 mm (scanner with cable and development board)

    Features of

    Wired

    CCD

    Barcode Scanner Module

    :
    1. Colour: Black
    2. No Driver, plug and play
    3. 32 bit processor, More fast than 8 bit and 16 bit barcode scanners
    4. Scanning Speed: 280(scans/second), fast scanning rate
    5. Support reading bar codes from screen
    6. Super scanning and decoding ability, can read incomplete and fuzzy codes
    7. Small size, Easy to integrate, high-standard automation and can be embedded into a End devices, especially for limit space application
    8. Application fields: Supermarket,Retail,Healthcare,Logistics,Communication,Clothing industry, Power Industry, Kiosk,Locker, Factory assembly line

    Package Includes:

    1 x

    Wired

    CCD

    Barcode Scanner Module

  • 1 x USB Male to Male Cable
  • 1 x User Manual
