YIHUA YH 946D III Digital Touch LCD Glass Screen Separator Machine

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: YH 946D-III

Rs.15600 Rs. 19500

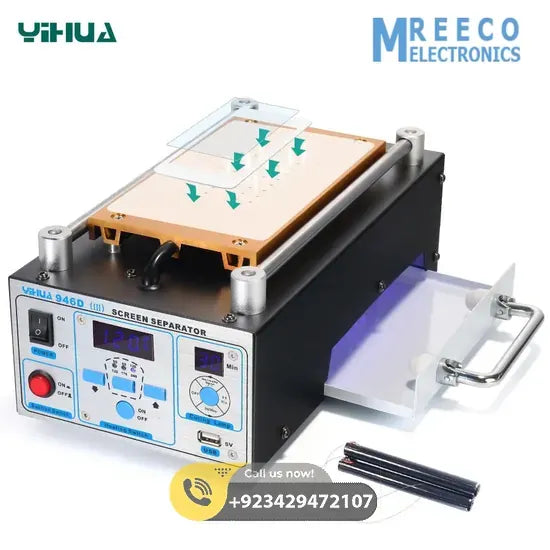

YIHUA 946D-III LCD Touch Screen Glass Separator Machine Separator To Repair Split Separate Glass Touch Screen Machine. Glass Separator unit is digitally controlled by a Zilog Dual-Core Microcomputer Processor with PID programmable temperature control technology and implantation of the most high-end precision PID program. This gives rapid warming-up, very accurate temperature control, stability, durability, and reliability to this unit. Mobile screen Separator is Designed to meet the market needs of different regions, the temperature display function can be set to display either Celsius or Fahrenheit, depending on local practices. The surface area of the aluminum being relatively large, its temperature may vary slightly in response to large changes in ambient temperature. The double-sided internal SMT manufacturing process boasts clean craftsmanship. The signal flow is clear, and the machine is both stable and safe, further improving its performance and adaptability to various harsh environments.

Features Of Yuhai YH-946D-III Separator Glass Touch screen Digitizer:

  • With PID programmable temperature control technology and the highest precision PID input program, the temperature is both adjustable and stable while deviations are minimized.
  • The heated aluminum is smooth and flat, ensuring a uniform surface temperature.
  • Built-in vacuum, strong suction, low noise, long life.

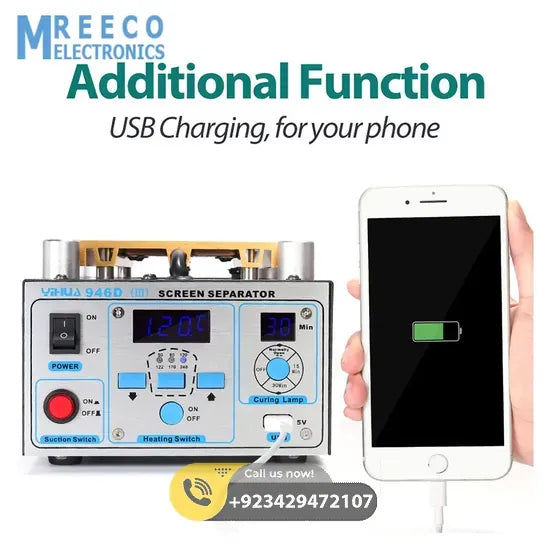

  • It has a 5V 1A USB mobile phone charging interface, suitable for Apple, Samsung, Millet, Huawei, and other mobile phone charging.

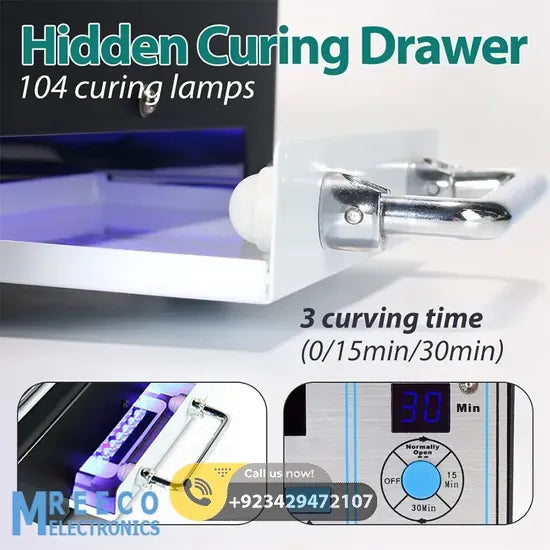

  • With a UV curing UV lamp, do not worry about the phone screen glue that did not dry.

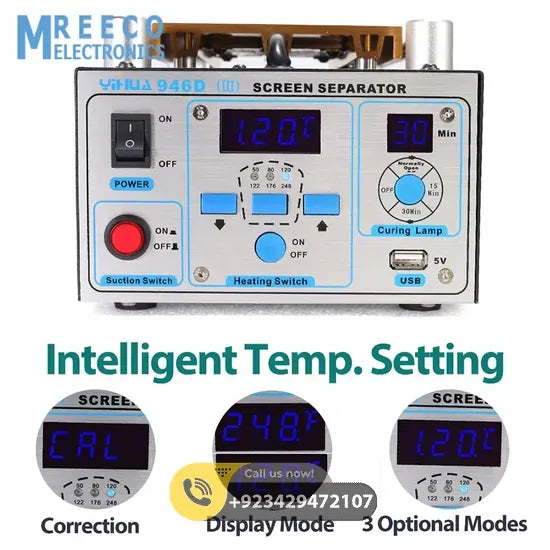

  • Celsius/Fahrenheit temperature display
  • Temperature correction feature

Specifications Of LCD Touch Screen Glass Separator Vacuum Pump Machine UV light:

  1. Power: 370W
  2. Temperature range: 50℃~120℃
  3. Display: LED Display
  4. Temperature stability: ±2℃(Static state)
  5. Vacuum pump power: 12W
  6. Vacuum pressure: 0.05MPa
  7. Aluminum to ground resistance: <2Ω
  8. Aluminum size: L200mm*W 110mm
  9. Overall dimension: L1300*W160*H90mm ±3mm
  10. UV curing lamp power: 12W
  11. USB Output: 5V 1A
  12. Operating temperature: 0~40℃/32 ℉~104 ℉
  13. Storage humidity: 35%~45%

Package Include:

  • 1X Screen Separator YH-946D-III
