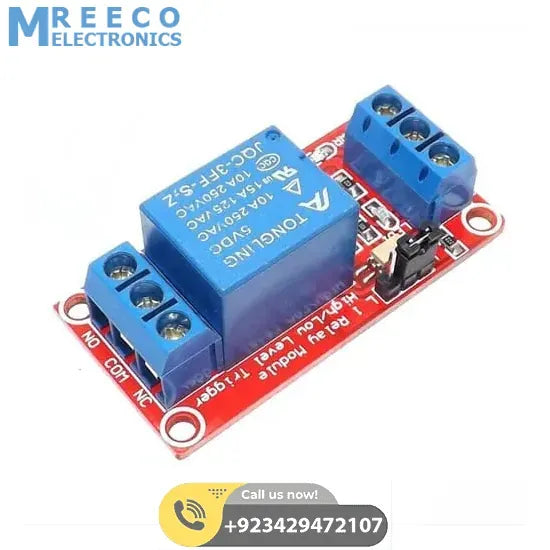

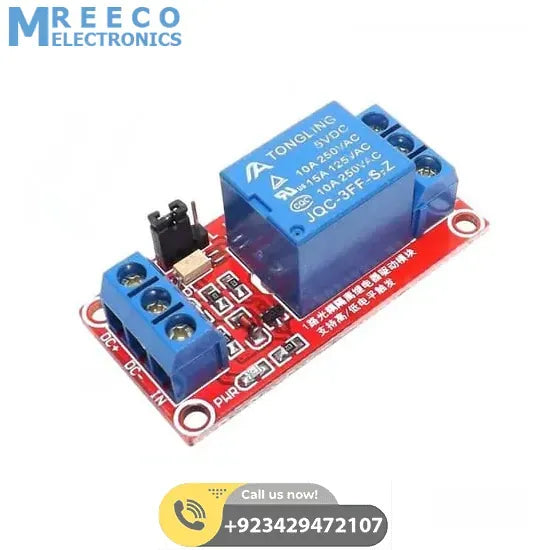

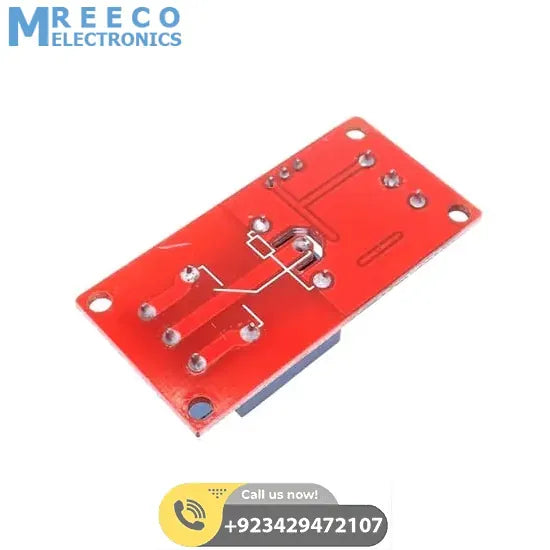

1 Channel 5V Optocoupler Isolated Relay Module

This is a 5V 1-Channel Optical Isolated Relay Interface Board, be able to control various appliances, and other equipment with large current. The 5V relay module circuit, each one needs 15mA-20mA driver current and equipped with high current relay: DC 30V / 10A, AC 250V / 10A. The 1-channel relay module uses genuine high quality DC5V relay and SMD opto-isolator supporting high/low level trigger, widely apply to control various AC/DC appliances, and other devices with large current. Optocoupler Relay Module can be controlled directly by micro-controller, home alarm system

Features Of 1 Channel Relay Module Board Shield with Optocoupler Support High and Low-Level Trigger for Arduino:

• Fault-tolerant design, even if the control line is broken, the relay will not trigger accidentally
• Equiped with high-current relay,
• AC250V 10A
;
• DC30V 10A
• Standard interface that can be controlled directly by microcontroller & Alarm system
• Full screw terminal for ease installation & secure connection
• High / Low input signal trigger selection by jumper. Support NPN / PNP PLC extension / Selectable Positive / negative trigger signal.
• Dual side printed FR-4 PCB for Stable high current as in the specification
• Manufacturer under IPC-610 standard for stable & durable
• 4 mounting hole for easy installation

Specifications Of 1 Channel 5V Optocoupler isolated Relay Module board Alarm PLC IO:

1. 4 Fixed Holes for Screw: Diameter 3.1mm
2. AC250V 10A
3. DC30V 10A
4. Work Voltage: 5V
5. Quiescent Current: 5mA
6. Driver Current 15-20mA
7. Trigger Current: 3-5mA
8. Low-Level Trigger Current: 0-1.5V
9. High-Level Trigger Current: 3-5V
10. Module Size: 50x26x18.5mm (LxWxH)

Terminals:

• DC+ Power supply Positive 5V DC
• DC- Power supply Negative 0V DC
• IN: Signal Input Can be TTL High / Low depends on jumper setting
• NO: Dry contact normally Open
• COM: Dry contact Common
• NC: Dry contact normally Close

High/Low-Level TTL Trigger Setting:

• High-level trigger: Short the Pin HIGH & COM
• Low-level trigger: Short the Pin LOW & COM
