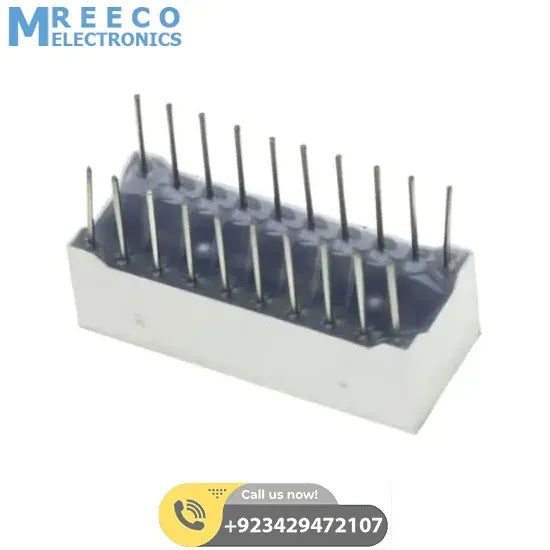

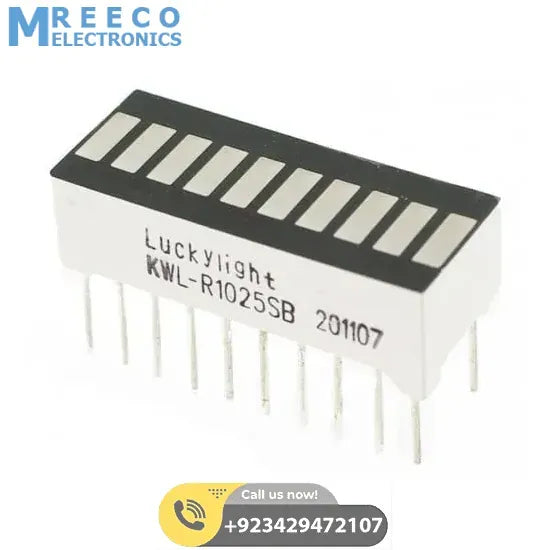

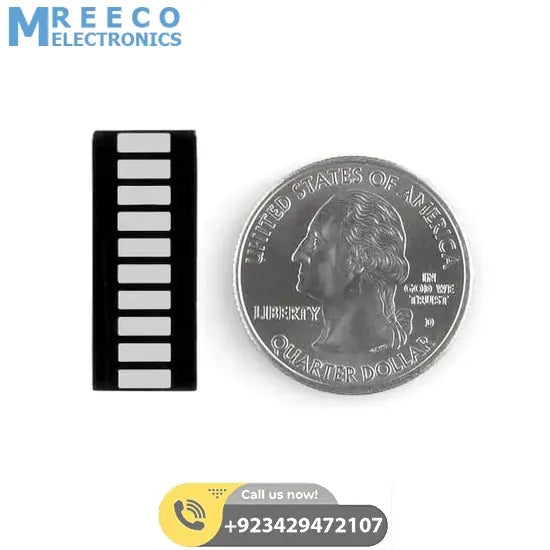

10 Segment LED Bar Graph Red

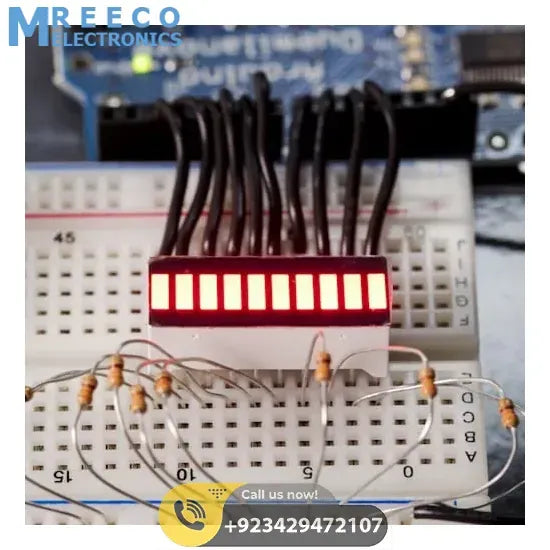

This is a 10 segment LED bar graph without a control chip. This bar graph has 10 red colour LEDs. This best 10 segment bar is compatible with the breadboard and can work with Arduino by adding some current limiting resistors. Since this Arduino bar graph has 20 pins, 10 on each side, with 0.1" spacing so you can easily plug it into a breadboard with plenty of space for wiring left over.

Features Of 10 Segment LED Bar Graph Red Arduino:

• Industrial standard size.
• Low power consumption.
• Categorized for luminous intensity.
• The product itself will remain within the RoHS compliant Version.
• The 10 segments light bar display is designed for viewing distances up to 7 meters.
• These devices are made with white segments and black surface.

Specifications Of Best 10 Segment Light Bar Graph LED Display Red:

1. PAD Power Dissipation Per Segment: 100mw
2. VR Reverse Voltage Per Segment: 5V
3. IAF Continuous Forward Current Per Segment: 20mA
4. IPF Peak Forward Current Per Segment(Duty-0.1,1KHz): 90mA
5. Derating Linear From 25°C Per Segment: 0.5mA/°C
6. TOPr Operating Temperature Range: -30°C to 80°C
7. Tstg Storage Temperature Range: -30°C to 85°C
8. Colour: Super Bright Red
9. Dimensions: 50mm x 50mm x 13mm
10. Weight: G.W 3g
11. Battery: Exclude
12. Solder Temperature1/16 inch Below Seating Plane 3 Seconds at 250°C

Package Includes:

• 1 x Red Colour 10 Segment LED Bar Graph
