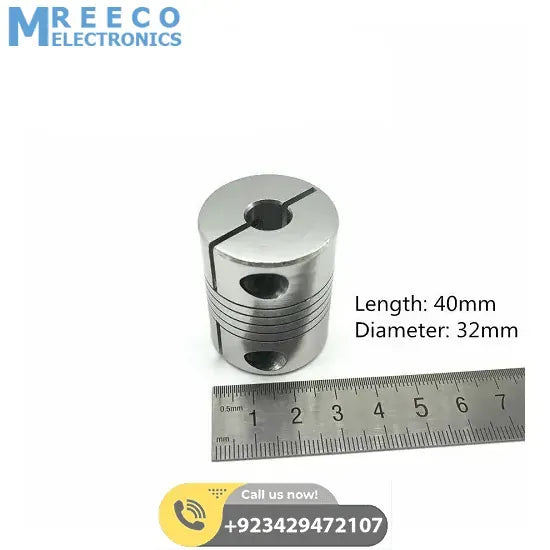

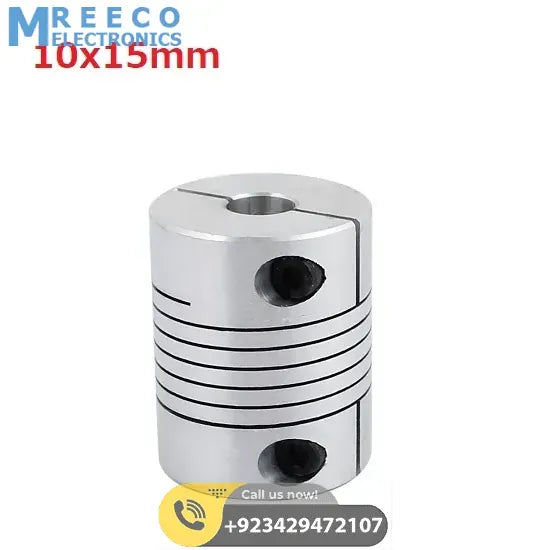

10x15mm Flexible Coupling Shaft D32mm L40mm

10x15mm Flexible Coupling can connect your driving shaft with the driven shaft. 10x15mm stepper Flexible Coupler, it is very efficient in eliminating any misalignment to the possible extent. Minimum backlash is another great advantage of this Aluminium Flexible Coupling. This best coupling shaft with an outer diameter of 32mm and a length of 40mm is machined aluminum coupling. The first bore diameter is 10mm and the second bore diameter is 15mm also. this stepper motor coupling comes with the spiral cut in the middle along its length which makes it flexible so they can be fit to two shafts even if they are not perfectly co-linear and will help reduce binding effects. Such CNC couplings are also known as Beam coupling, helical coupling, Flexible coupling.

Features Of 10x15mm D32mm L40mm Stepper Motor Coupler Flexible Coupling Shaft:

• Absorption of parallel, angular misalignments and shaft end-play by spring action.
• Corrosion resistance and High Durability.
• For little torque, shaft connect.
• One-piece construction with long-lasting performance.
• Low moment of inertia offering constant velocity.
• Widely used in drive systems for encoders, instrumentation, lead screws, small pumps, feed rollers, and anywhere light to medium duty, torsionally flexible coupling is required.

Specifications Of 10X15mm Stepper Motor Aluminum Flexible Coupling For Shaft Couplings CNC Parts:

1. D (Outside diameter): 32mm
2. L (Inside Length): 40mm
3. Material: Aluminium
4. Main Color: Silver Tone
5. Torsional stiffness: Zero backlash
6. Standard or Nonstandard: Standard
7. Structure: Flexible

Package Includes:

• 1 x 10x15mm Flexible Coupling Shaft For Stepper Motor Joint Connectors
