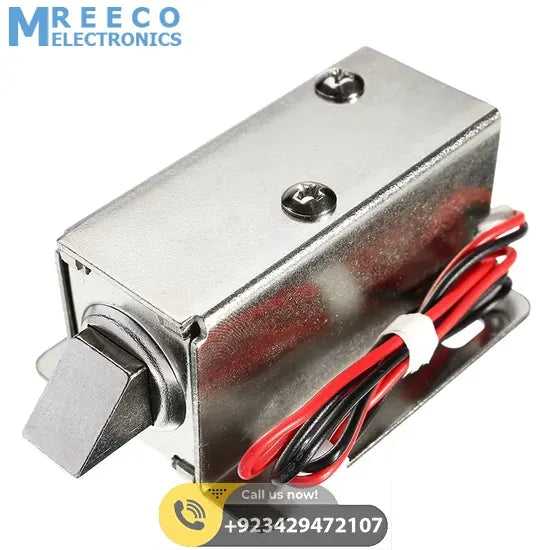

MA1206 54 x 42 x 28mm 12V DC Cabinet Drawer Electric Door Lock Assembly Solenoid Lock

This

DC

12V

Cabinet Door Lock Electric Lock or fingerprint Door Lock Assembly Solenoid can be used for locking sell-machine, storage shelf, file cabinet and etc. The Door Lock works as the circuits disconnects, and it will unlock as the instant power-on. It is steady, durable and energy-saving and had a long lifespan. In the anti-theft and shockproof design, the lock is better than other kinds of locks. After connecting the wires and when the current is available, the electric lock can control the door’s opening and closing.

Features Of Door lock:

1. Iron Body Material
2. High quality ultra-compact electric lock.
3. Rustproof, durable, safe, convenient to use.
4. Suction which tightly sucks the iron, thus locking the door.
5. Applicable for being installed in the escape door or fire door electronic controlled system.
6. Adopts the principle of electric magnetism, when the current through the silicon, the electromagnetic lock will achieve a strong.

Technical Specifications And Features:

Model

DC

12V

Cabinet Door Lock Rated Operating Voltage

12V

Rated Current

1.0A.

Power Consumption

12W Watt

Holding Force

0.25kg

Unlocking Time

1 sec

Body Material

Iron Metal

Energized forms

Intermittent

Cable Length

35 cm (with connector)

Weight (gm)

150

Dimensions (mm) LxWxH

54 x 42 x 28

Shipment Weight

0.223 kg

Package Includes In Door lock:

1 x

DC

12V

Cabinet Door Lock Electric Lock Assembly Solenoid
