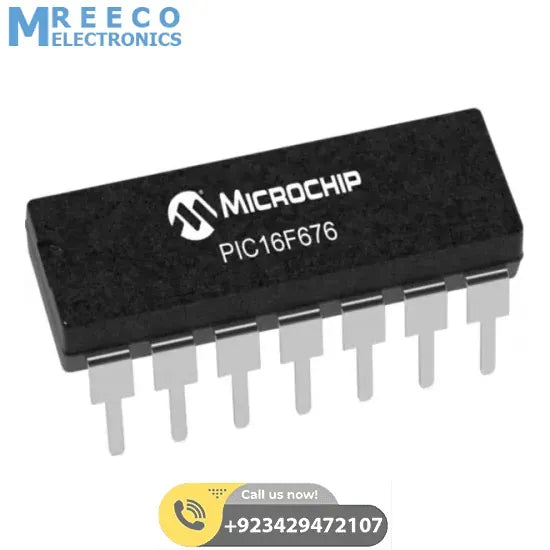

14 DIP 8 Bit Microcontroller PIC16F676

PIC16F676 microcontroller is from ‘PIC16F’ family and is made by MICROCHIP TECHNOLOGY. This microchip controller is an 8-Bit CMOS Microcontroller and is very popular among hobbyists and engineers due to its features, cost and small size. This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS Flash-based 8-bit microcontroller packs Microchip’s powerful PIC® MCU architecture into a 14-pin package and features 8 channels for the 10-bit Analog-to-Digital (A/D) converter, 1 comparator and 128 bytes of EEPROM data memory. This 8-bit CMOS microcontroller is easily adapted for automotive, industrial, appliances and consumer entry-level product applications that require field re-programmability.

Features Of 14-Pin Flash-Based 8-Bit CMOS Microcontroller PIC 16F676:

• 128 bytes of EEPROM Data Memory.
• Programmable pull-up resistors.
• Individually selectable analogue channels.
• ICD2 programming support or debugging support with optional header adapter.
• 8 oscillator selections including precision 4 MHz RC oscillator with programmable calibration and Power-on Reset.

Specifications Of PIC16F676 14DIP 8 Bit Microcontroller:

1. Program Memory Type: Flash
2. Program Memory Size (KB): 1.75
3. CPU Speed (MIPS/DMIPS): 5
4. SRAM (B): 64
5. Data EEPROM/HEF (bytes): 128
6. Timers: 1 x 8-bit, 1 x 16-bit
7. ADC Input: 8 ch, 10-bit
8. Number of Comparators: 1
9. Temperature Range (°C): -40 to 125
10. Operating Voltage Range (V): 2 to 5.5
11. Pin Count: 14

Datasheet PIC16F676

Package Includes:

• 1 x 14 Dip 8-bit Microcontroller PIC16F676
