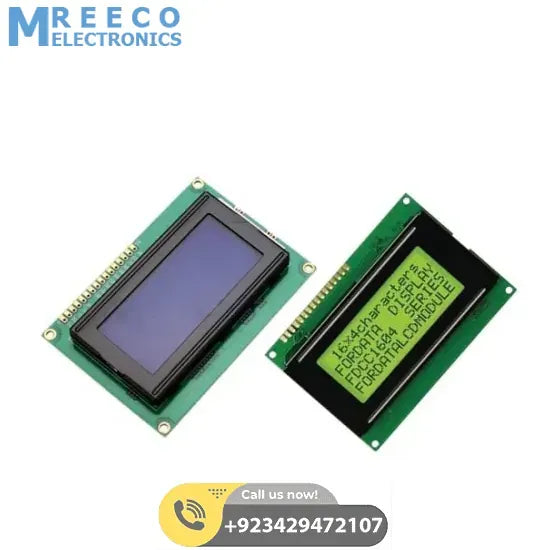

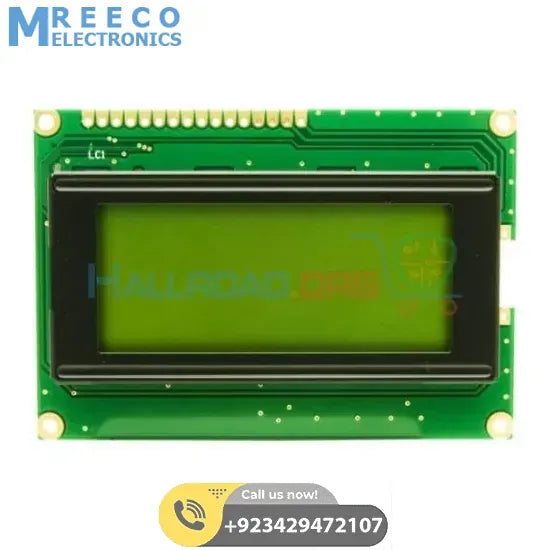

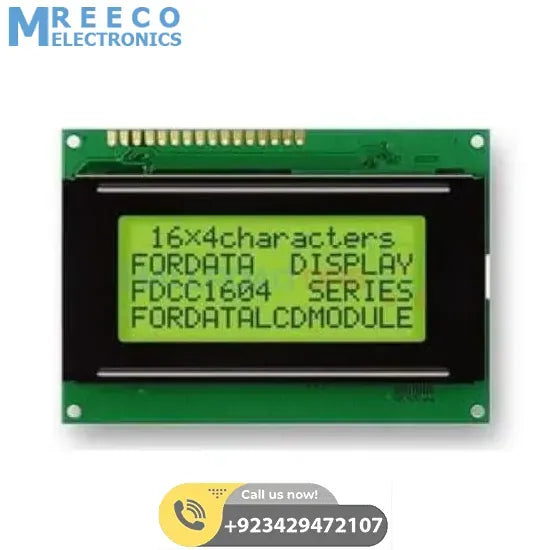

16x4 Character LCD 1604 Green LCD Display Module FDCC1604 Series For Arduino Raspberry Pi

16x4 Character LCD Module is a dot-matrix liquid crystal display module specially used for displaying letters, numbers, symbols, etc. 16*4 LCD Display can display 4 lines with 16 characters in each line. Divided into 4-bit and 8-bit data transmission methods. 1604 Green Character LCD provides rich command settings: clear display; cursor return to origin; display on/off; cursor on/off; display character flashes; cursor shift; display shift, etc.

Features And Specifications of 1604 16x4 Character LCD Display Module:

• Connection Pin Header
• Display Format 16x4 Character
• Outline Dimension 87.0(W)x60.0(H)x12.5(T)mm
• Interface 6800 4-bit Parallel, 6800 8-bit Parallel
• Viewing Direction 6:00
• Backlight Color Green
• Backlight Current (Typ) 45mA
• Power Supply(Typ) 3.5V / 5.0V
• Supply Current for LCM(Max) 1800uA
• Operating Temp -20℃~70℃
• Storage Temperature -30℃~80℃

Package Include:

• 1 x LCD1604 16x4 Character LCD Display Module LCM Blue Blacklight 5V for Arduino
