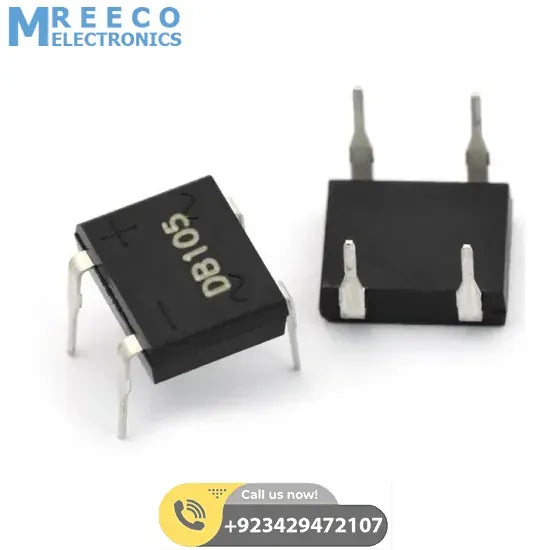

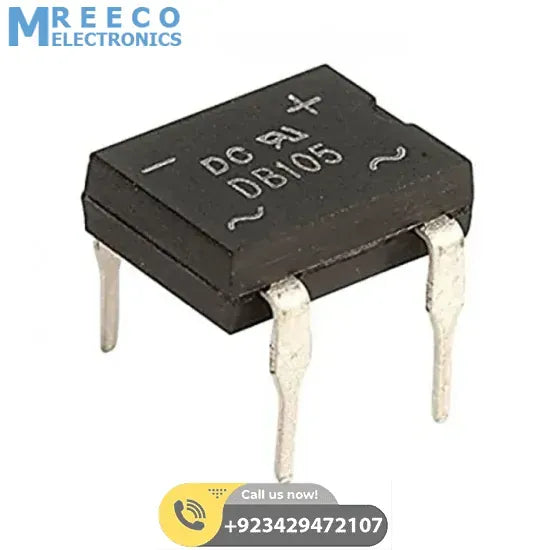

1amp 1000V Bridge Rectifier IC

1Amp 1000V Bridge Rectifier IC is good for automation insertion surge overload rating. 1-ampere IC rectifier is ideal for printed circuit board reliable low-cost construction utilizing moulded glass passivated device Polarity symbols moulded on body Mounting position. This IC rectifier chip leads solderable per MIL-STD-202 and method 208 guaranteed.

Features Of Single Phase 1Amp Dip Glass Passivated Bridge Rectifier :

• Good for automation insertion.
• Surge overload rating – 40 amperes peak.
• Ideal for the printed circuit board.
• Reliable low-cost construction utilizing moulded.
• Glass passivated device.
• Polarity symbols moulded on the body.
• * Mounting position: Any.
• Weight: 1.0 gram.

Specifications Of 1000V IC Bridge Rectifier :

1. Bridge Type: Single Phase
2. Peak Average Forward Current: 1A
3. Peak Reverse Repetitive Voltage: 1000V
4. Mounting Type: Through Hole
5. Package-Type: DB
6. Pin Count: 4
7. Configuration: Single
8. Maximum Operating Temperature: 150°C
9. Minimum Operating Temperature: -55°C
10. Peak Forward Voltage: 1.1V
11. Peak Reverse Current: 500uA
12. Length: 8.8mm
13. Height: 3.4mm
14. Junction Capacitance: 25pF
15. Width: 6.5mm
16. Dimensions: 8.8 x 6.5 x 3.4mm

Package Includes:

• 1 x 1Amp 1000V Bridge Rectifier IC (Part no can be changed like DB102, DB103, DB104, DB105 OR ANY OTHER With same technical specs)
