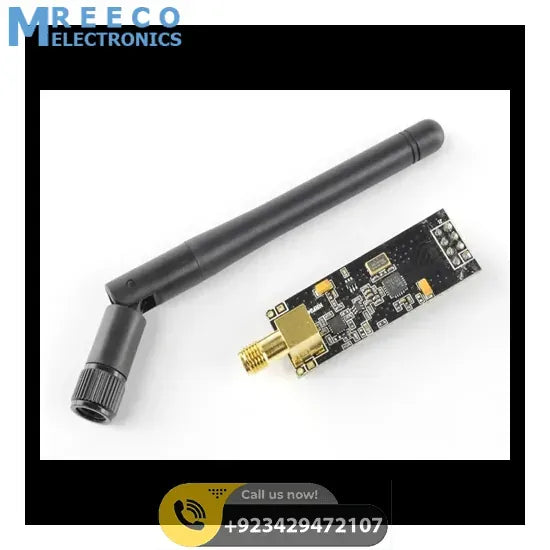

Hw-237 2.4GHz NRF24L01+pa+lna SMA Wireless Transceiver Module With Antenna

The NRF24L01 module is the latest in RF modules. This module uses the 2.4GHz transceiver from Nordic Semiconductor, the NRF24L01+. This transceiver IC operates in the 2.4GHz band and has many new features! Take all the coolness of the nRF2401A and add some extra pipelines, buffers, and an auto-retransmit feature – very nice!

This board features a reverse polarized SMA connector for maximum RF range. And there is PA and LNA circuit on board, with the external antenna it can reach long distance than the one without these parts.

This module comes with the 2.4G antenna (2DB), with 250Kbps transmission rate on open air it can reach the 800-1K meters communication distance.

2.4GHz NRF24L01+PA+LNA SMA Wireless Transceiver Module With Antenna Specifications and Features :

1. Voltage: 3-3.6V (recommended 3.3V) V.
2. Maximum output power: +20dBm.
3. Emission mode current(peak): 115mA.
4. Receive Mode Current(peak): 45mA.
5. Power-down mode current: 4.2uA.
6. Sensitivity 2Mbps mode in received: -92dBm.
7. Sensitivity 1Mbps mode in received: -95dBm.
8. PA gain: 20DbLNA gain: 10Db.
9. Sensitivity 250kbps mode in received: -104dBm.
10. Operating Range: 1Km
11. LNA Noise figure: 2.6Db.
12. Antenna Gain (peak): 2Dbi.
13. 2MB rate (Open area): 520m.
14. 1MB rate (Open area): 750m.
15. 250Kb rate (Open area): 1100m.
16. Interface: SPI.

Package Includes :

• 1 x 2.4GHz NRF24L01 Transreceiver module.
• 1 x SMA Antenna.
