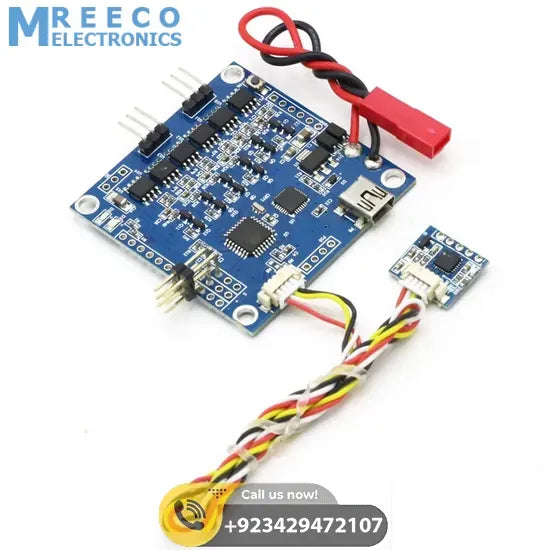

2 axis BGC 3.1 Brushless Gimbal Controller or PTZ Controller motor Driver with 6050 Sensor for FPV Multirotor

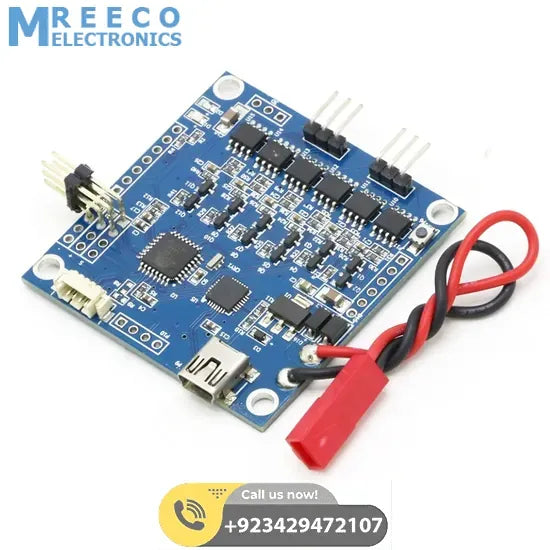

The current version of the controller is version 3.1, they normally come with the bootloader on the chip, Brushless Gimbal Controller 3.1 has Stabilized VBUS (USB port), Pin layout optimized GND, A1, and A2 GND, multi-port, 5V, L6234 brushless motor driver, 2 outputs for brushless motors, 4 receiver inputs, 6 analog inputs

2 axis BGC 3.1 Brushless Gimbal Controller PZTFeatures And Specifications:

• Drive Mode: MOS

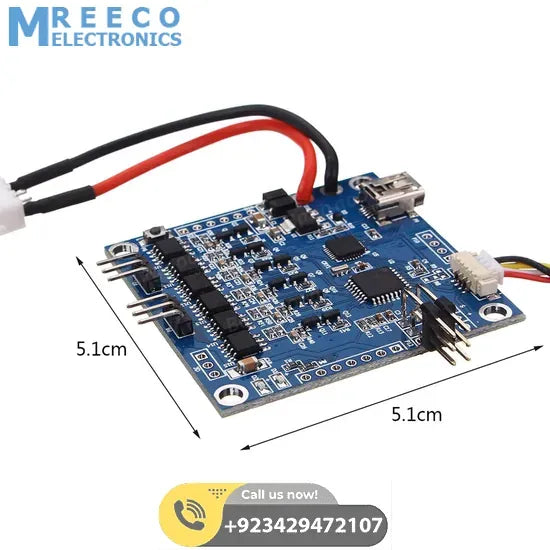

• Size: Approx. 5.1x5.1cm
• Peak Current: 10A
• BGC 3.0 MOS Large Current 2-axis Brushless Gimbal Controller Driver
• Adopts MOS tube drive, with larger current
• Two-axis brushless gimbal driver
• Support 2-8 series gimbal motor

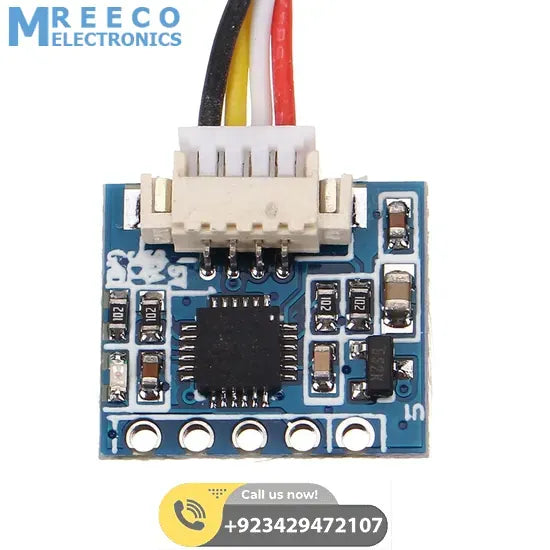

MPU6050 3 Sensor module:

• Chip: MPU-6050
• Power supply: 3-5V
• Gyroscope range: + 250 500 1000 2000 °/ s
• Acceleration range: ± 2 ± 4 ± 8 ± 16 g
• Communication: Standard IIC communication agreement
• Chip built-in 16 bit AD converter, 16 bits of data output
• Pin Pitch: 2.54mm
• Size: 20.3mm x 16.5mm
• Total weight: 17g
• Can only use 2.2b2 firmware

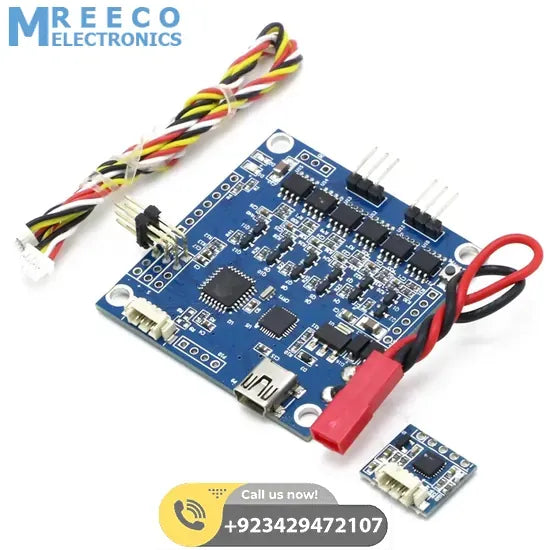

Package includes:

• 1x Brushless Gimbal Controller 3.1
• 1x MPU6050 Sensor
• 1 x cable
