2 Channel Wireless 433MHz Remote Control Switch Module Ak RK02S 220B With RF Remote Controller Transmitter in Pakistan

SKU: 637731179735885608Category: Sensors & Modules
Rs 3,030

Currently sold out

220V 2 channel learning code remote control switch adopts 10A relay, which can load large power electrical appliances; learning MCU decodes and can learn multiple remote controllers; simple and flexible operation; out...

Ask about this product on WhatsApp
  • Fast deliveryFree shipping on prepaid orders above Rs. 10,000
  • Secure payment100% secure payments by Meezan Bank
  • SupportMonday to Saturday, 11:00 AM to 8:00 PM
  • ReturnsSee our return and refund policy

Description

220V 2 channel learning code remote control switch adopts 10A relay, which can load large power electrical appliances; learning MCU decodes and can learn multiple remote controllers; simple and flexible operation; output mode can be switched by short connection reserved solder pad, and point, self-lock, and interlock can be selected and used arbitrarily, which is suitable for many applications in many fields; reserved data bit output adjustment port, can be used. By choosing the corresponding key position value of remote control in different positions, it is convenient for customers to match all kinds of RF remote controller they like, and avoids the embarrassment of the old fixed key position matching only a single style remote control. Output without voltage, easy to install. The remote control board is suitable for anti-theft alarm, remote control electric doors and windows, signal control, industrial control, the electric control circuit of lifting equipment, and so on. Wireless Remote control switch module relay contact output independently is very suitable for direct control of all kinds of load

Features And Specifications Of 2 Channel Wireless 433Mhz Remote Control Switch Module AK RK02S 220B With RF Remote Controller Transmitter:

  • Easy to install.
  • Operating Voltage: AC220V
  • Working frequency: 433MHZ
  • Simple and flexible operation
  • Working mode: Switching by solder joint, self-locking, jog (default vacant), interlock
  • Size: 70x50.5x18.2 (mm)
  • It is convenient for customers to match all kinds of RF remote controller

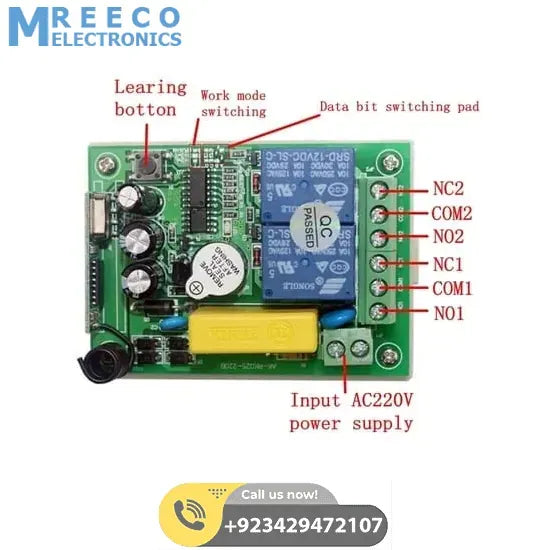

Learning Method: Press and hold the learning button, the indicator light is off (indicating that it has entered the learning state), release the learning button, press any button on the remote control, the indicator light flashes four times and then the light is always on to indicate that the learning is successful. Clear Method: Press and hold the learning button for about 8 seconds. The indicator will turn off and return to light. Work mode switching: Switch the working mode by shorting the 1, 2, and 3 solder joints on the board 1. Jog – do not shorting the pad, vacant = M 2. Self-locking – shorting 1, 2 pads = L 3. Interlocking – shorting 2, 3 pads = T The meaning of self-locking/interlocking/jogging: Interlock: Press the corresponding button of the remote control, the corresponding relay is turned on, and then press another remote control button; the relay is disconnected. Non-lock, jog: Press the remote control button, the corresponding relay is turned on, release the remote control button; the corresponding relay is disconnected. Self-locking: Press the remote control button once, the relay is turned on, press the remote control button again, the relay is disconnected.

Package includes:

  • 1 x 433MHz AC 220V 2 Channel Remote Control Switch Wireless Module
  • 1 x Remote Control

Best online shopping website for 2 Channel Wireless 433Mhz Remote Control Switch Module AK RK02S 220B With RF Remote Controller Transmitter at cheap price in Lahore Islamabad Karachi Faislabad Multan Quetta Sukkur Peshawar Rawalpindi and all over Pakistan

Specifications

BrandChina
CategorySensors & Modules
SKU637731179735885608
AvailabilityCurrently sold out
