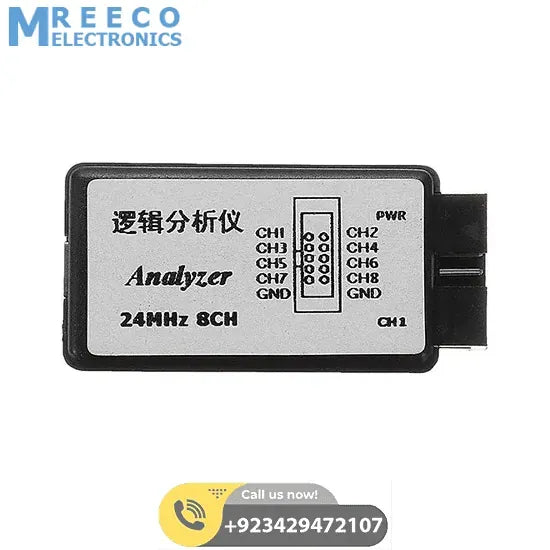

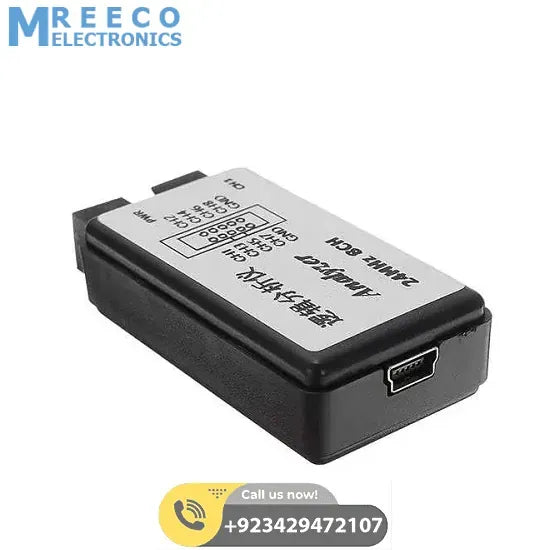

24MHz 8ch USB Logic Analyzer

1. USB Logic Analyzer
2. is an instrument, captures/displays multiple signals from a digital system/digital circuit.
   1. USB Logic Analyzer
   2. may convert the captured data into timing diagrams, protocol decodes, state machine traces, assembly language, or may correlate assembly with source-level software. Logic analyzers have advanced triggering capabilities, and are useful when a user needs to see the timing relationships between many signals in a digital system.



      Features of 24Mhz 8CH

      1. USB Logic Analyzer
      2. For Microcontroller & FPGA Debugging:
      1. USB Logic Analyzer
      2. 24mhz Logic Analyzer
      3. Logic Analyzer Fpga
      4. Parameter: 1.
         1. 8 channels input
         2. ;
         3. Logical indication: a small indicate CHO electrical level;
         4.
         5. Input feature: 5PF, 100K Ohm
         6. ;
         7.
         8. USB power supply

         Specifications of 24Mhz 8CH

         1. USB Logic Analyzer
         2. For Microcontroller & FPGA Debugging:
         1. 8 channels input
         2. Logical light indication: a small light indicate CHO electrical level;
         3. Input feature: 5PF, 100K Ohm
         4.
         5. USB power supply
      5. The sampling rate can be set as 24MHz, 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz
      6. Data upload real-time, the max of the depth of the collection is 10T, far from the practical need
      7. Support WIN7(32&64), 2K, XP, LINUX

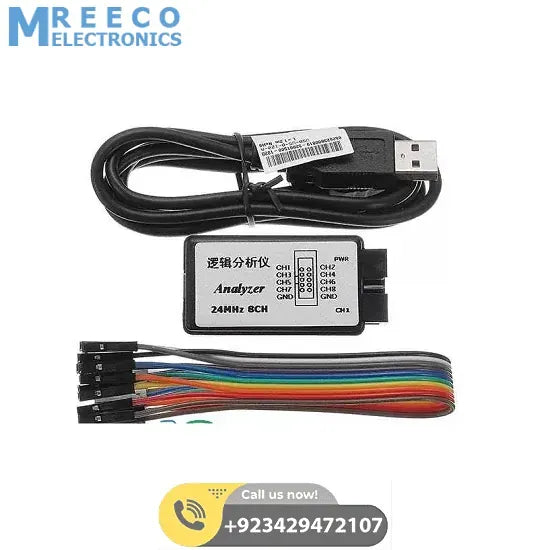

      Package Includes:

      1 x

      1. USB Logic Analyzer
      2. 24M 8CH Microcontroller ARM FPGA Debug Tool
