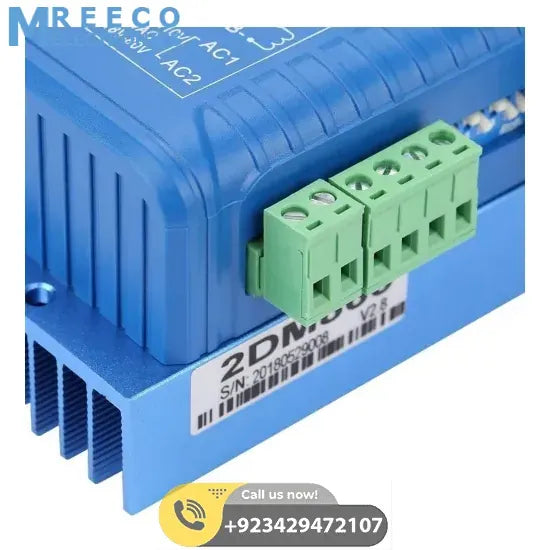

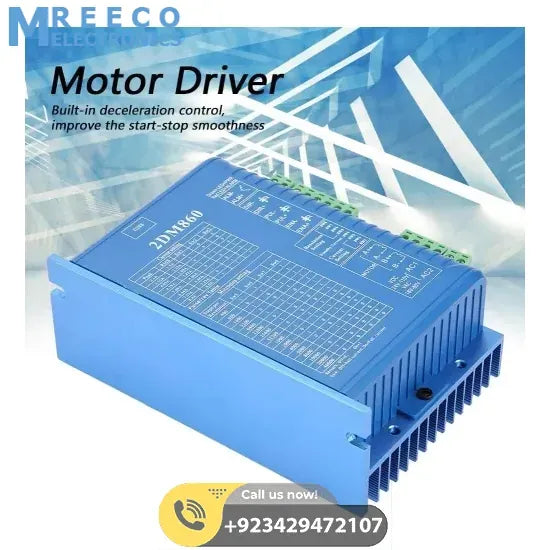

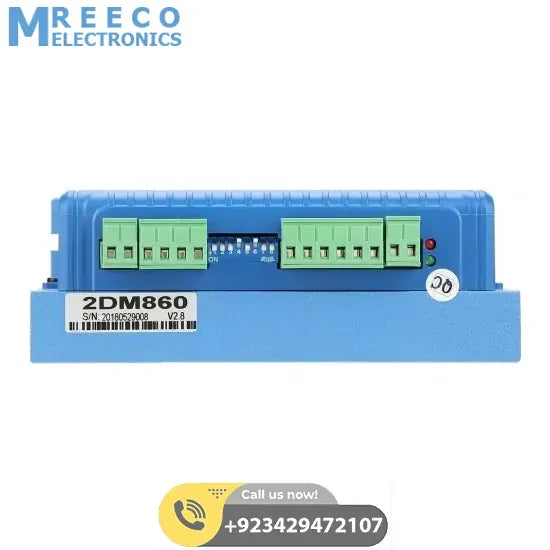

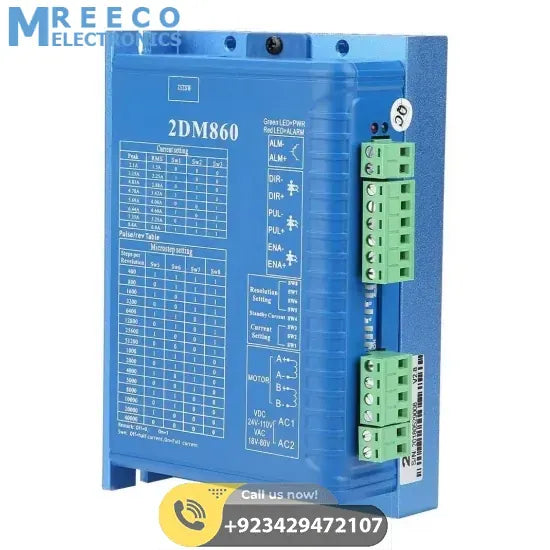

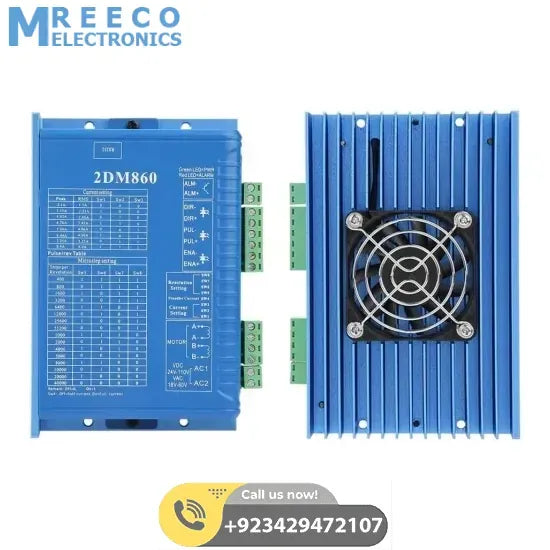

2DM860H 2 Phase NEMA23 NEMA34 Stepper Motor Driver

2DM860H 2phase NEMA23 NEMA34 stepper motor driver IN PAKISTAN 2DM860H is newest digital stepper motor driver, using the latest 32-bit DSP control technology, the user can set any segment within 25600 and multi-range current value within the rated current, with built-in microtechnology, 2DM860H driver greatly improved stability and reduced noise under subdivision. Integrating automatic parameter tuning function inside.it also can adjust the optimal operating parameters automatically for different motors to maximize the

Features Of 2DM860 Stepper Motor Driver;

1. 2-Phase numerical stepper driver, AC20V-70V or DC24V-70VDC
2. New 32-bit DSP technology
3. Optically isolated differential signal inputs (26LS32)
4. Extra-low noise and vibration
5. High Subdivision, inner-built 500 multiplier
6. Current can be arbitrarily set within the rated current
7. Stationary current is automatically halved
8. Pulse frequency response up to 250KHz
9. Overvoltage, Undervoltage, Short circuit protection
10. Alarm output function(ALM)
11. Alarm clear input function(ENA)
12. With Coolant Fan

SW4: Selection between Semi & Full current in Static, ON=Full, OFF=Semi.
