3.5 Inch Nextion TFT HMI LCD Touchscreen NX4832T035

3.5 inch Nextion TFT HMI LCD Touchscreen NX4832T035 is a Seamless Human Machine Interface (HMI) solution. 3.5 inch Nextion TFT HMI LCD Touchscreen NX4832T035 that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of Things (IoT) or the consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tubes. Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.

It's easy to adapt Nextion family HMI to existing projects. Users just need to provide it with a UART.

We are also selling Nextion touchscreen in different sizes like 2.4", 3.2", 4.3", 5" 7" etc.

Features of 3.5 inch Nextion TFT HMI LCD Touchscreen NX4832T035:

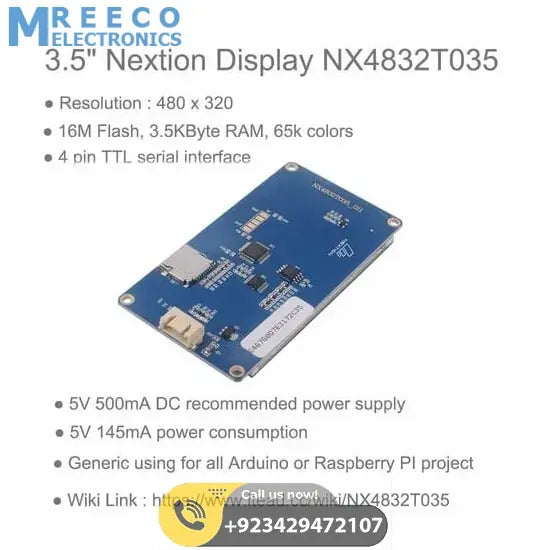

• 480 x 320 Resolution
• RGB 65K true to life colours
• TFT screen with integrated resistive touch panel
• 4 pin TTL serial interface
• 16M Flash memory for User Application Code and Data
• Onboard micro-SD card slot for firmware upgrade
• 1. Visual Area: 73.44mm(L)×48.96mm(W)
• Adjustable Brightness: 0~180 nit, the interval of adjustment is 1%
• 5V500mA DC recommended power supply
• 5V145mA power consumption
• Certificates: CE/EMC, RoHS(certificates)

Specifications of 3.5 inch Nextion TFT HMI LCD Touchscreen NX4832T035:

1. Visual Area: 73.44mm(L)×48.96mm(W)
2. Layout size: 100.5(L)×54.94(W)×5.45(H)
3. Touch-type: Resistive
4. Backlight: LED
5. Backlight lifetime (Average): >30,000 Hours
6. Net Weight: 48.2 g
7. Recommended power supply: 5V 500mA DC
8. Certified: CE/EMC, RoHS

Package includes:

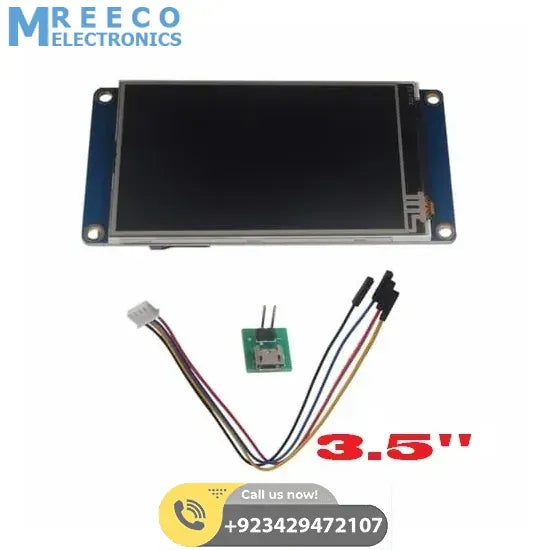

• 1 x 3.5 Inch Serial Touch TFT LCD Screen
• 1 X Micro USB to 2P Connector Board
• 1 X 4-Pin Grove Cable

Documents:

Please visit our wiki page for more information about this product. Any suggestions for improvement, such as correcting errors, adding more demo codes or tutorials, will be highly appreciated.

Technical Support:

For technical support, please open a ticket on Itead Support System.
